Switch non gestito PLANET 2 porte 10/100/1000T PoE Gigabit Ethernet

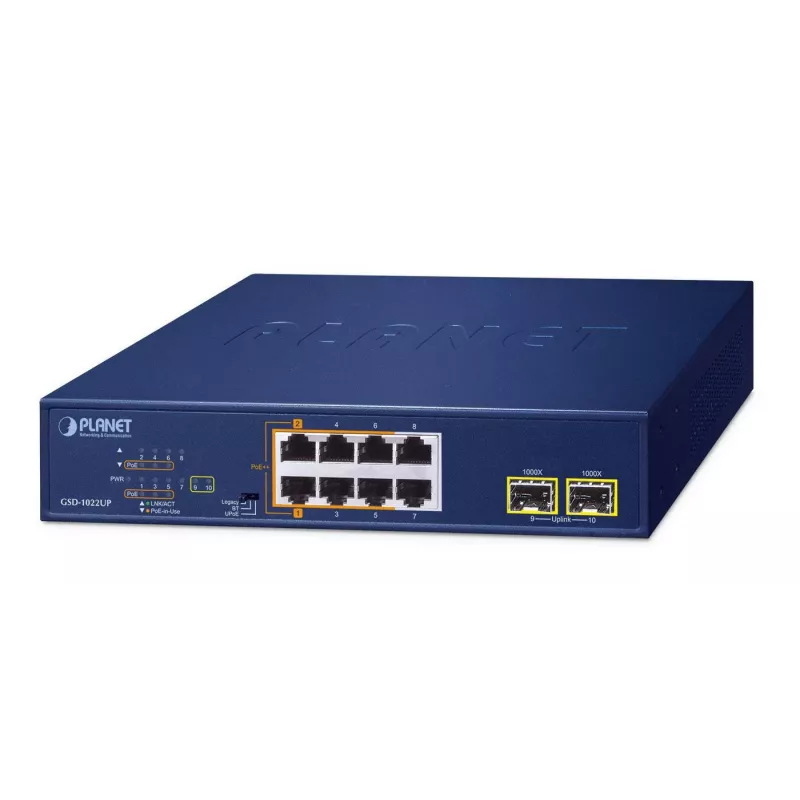

PLANET GSD-1022UP is an unmanaged Gigabit PoE switch that offers two 802.3bt PoE++ ports, four 802.3at PoE+ ports, two additional Gigabit copper ports and two Gigabit SFP uplink interfaces. With a total PoE power budget of 180 W and non-blocking switching performance, the GSD-1022UP supplies sufficient power and bandwidth for small-scale high-performance networks and Wi‑Fi systems.

Advantages

The switch provides high PoE power per port (up to 95 W on 802.3bt ports) and backward compatibility with 802.3af/at devices, enabling simultaneous deployment of standard and high‑power PoE devices without configuration. Dual Gigabit SFP uplinks and extra copper ports allow flexible network extension and reliable high‑speed video/data transmission for surveillance or network backbone connections. The compact metal housing and ESD 6 kV protection ensure stable operation and physical robustness.

Key specifications

• Ports: 2 × 802.3bt PoE++ ports, 4 × 802.3at PoE+ ports, 2 × Gigabit TP ports, 2 × Gigabit SFP uplink ports
• Total PoE budget: 180 W
• PoE per port: up to 95 W (802.3bt)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af/at/bt
• Switching: Non‑blocking Gigabit switching performance
• Fiber support: 1000BASE-SX/LX SFP (multi-mode and single-mode options)
• Protection: ESD 6 kV surge protection
• Form factor: Desktop, metal housing

How to use

Install the GSD-1022UP on a desktop or rack shelf and connect the uplink SFP or copper port to your backbone switch or NVR. Connect PoE IP cameras, Wi‑Fi access points or other PoE devices to the PoE ports; the switch will automatically detect and power compatible devices. Use the DIP switch to select the desired PoE output mode (802.3bt PoE++, UPOE or Legacy) to match the powered device requirements. No software configuration is required for standard plug‑and‑play operation.

Recommendations

For surveillance deployments, distribute high‑power cameras to the 802.3bt ports and standard PoE cameras to the 802.3at ports to optimize the 180 W budget. Use SFP modules appropriate for the fiber type and distance required (multi‑mode for short links, single‑mode for long links) and enable appropriate site grounding to complement the switch’s ESD protection.
