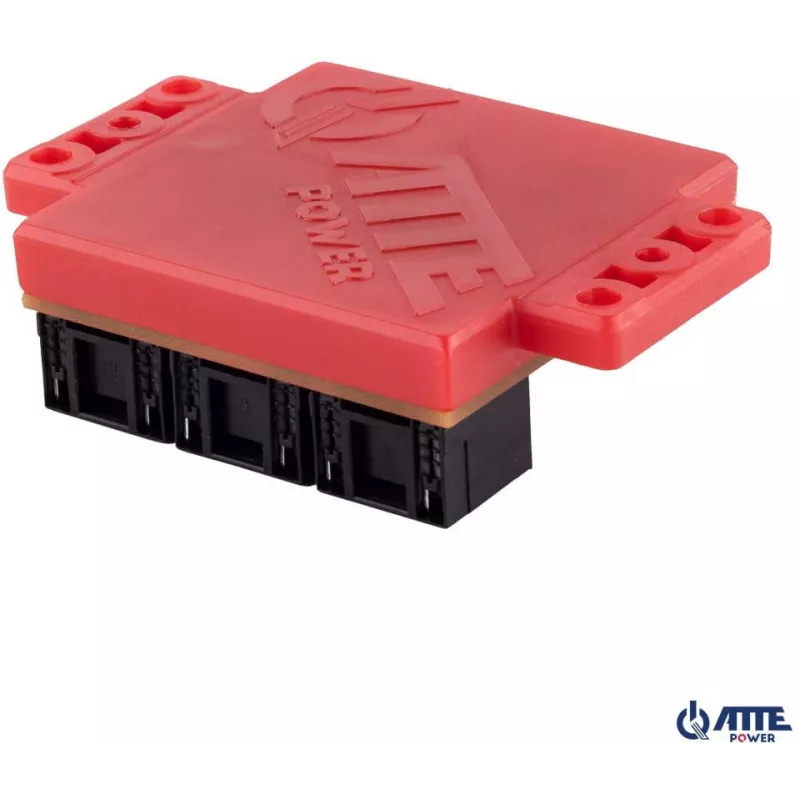

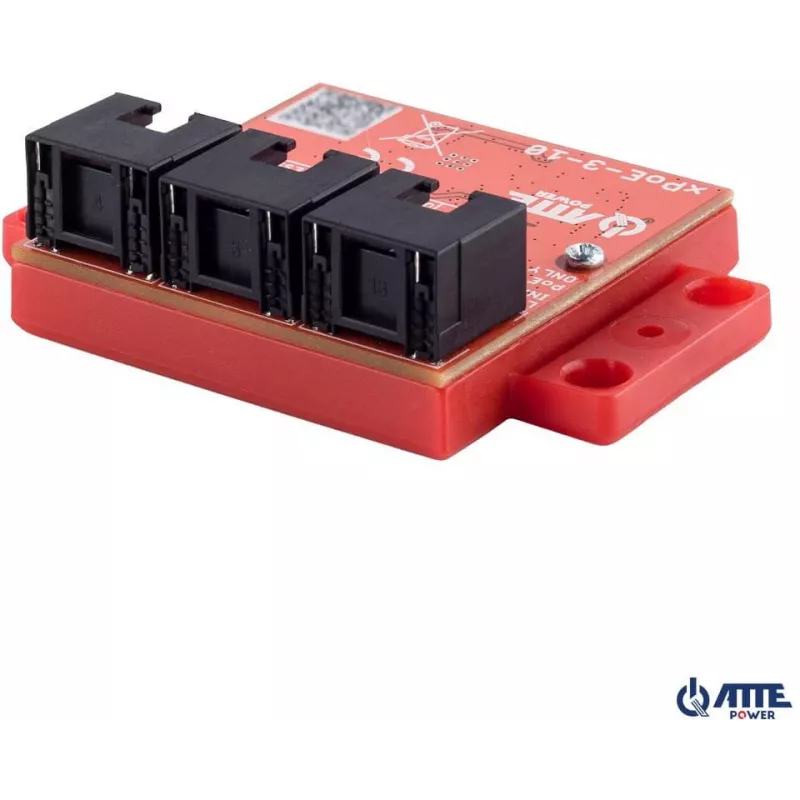

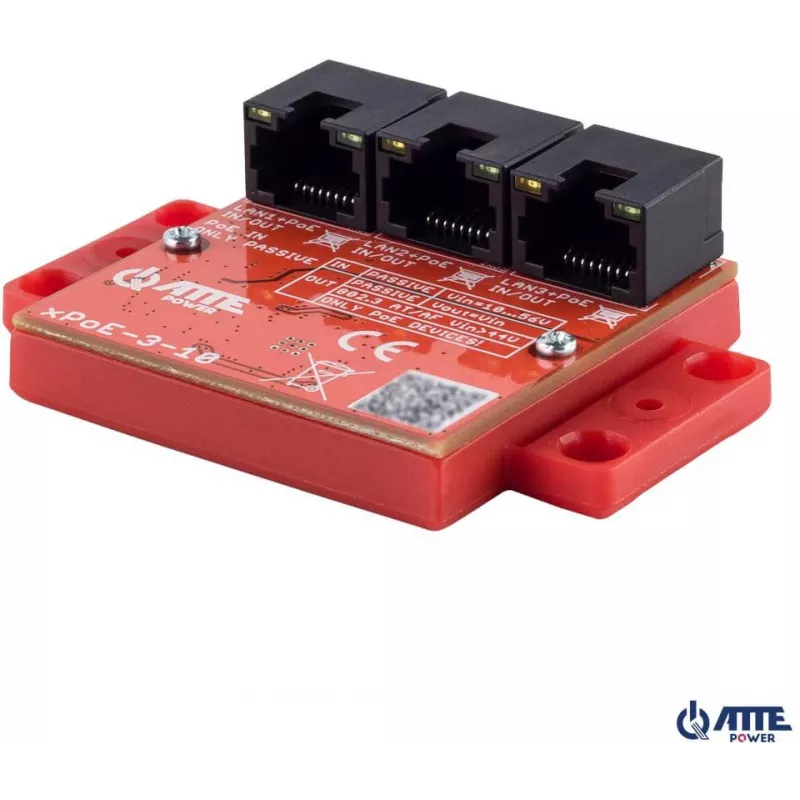

Switch PoE ATTE xPoE-3-10 3 porte unmanaged 2x PoE 10/100 Mbps

The ATTE xPoE-3-10 is a compact and reliable 3-port PoE switch designed for small networks requiring power and data over a single Ethernet cable. With 2 PoE+ ports delivering up to 30W each and a total PoE budget of 60W, it is ideal for powering IP cameras, VoIP phones, and wireless access points. The switch is unmanaged, plug-and-play, and built with a rugged metal housing for industrial environments.

Advantages

This switch simplifies network deployment by eliminating the need for separate power cables for PoE devices. Its wide input voltage range (12-56V DC) offers flexibility for various power sources, and the industrial temperature range (-25°C to 65°C) ensures stable operation in harsh conditions. Protection features like overload, short-circuit, and surge protection safeguard your equipment.

Suitable for

• Small office/home office (SOHO) networks
• IP surveillance systems
• VoIP phone installations
• Wireless access point deployments
• Industrial automation

Key specifications

• 3 x 10/100 Mbps Ethernet ports (2 PoE+, 1 uplink)
• PoE standard: IEEE 802.3af/at
• Max power per PoE port: 30W
• Total PoE power budget: 60W
• Switching capacity: 0.6 Gbps
• MAC address table: 1K
• LED indicators: Power, Link/Act, PoE Status
• Enclosure: Metal
• Operating temperature: -25°C to 65°C
• Power consumption: <2W (switch only)

Recommendations

For optimal performance, use a 48V DC power supply (sold separately) to achieve the full 60W PoE budget. This switch is a cost-effective solution for expanding your network with PoE capabilities.
