Switch unmanaged PLANET IFGS-624PTF 4 porte Fast Ethernet PoE

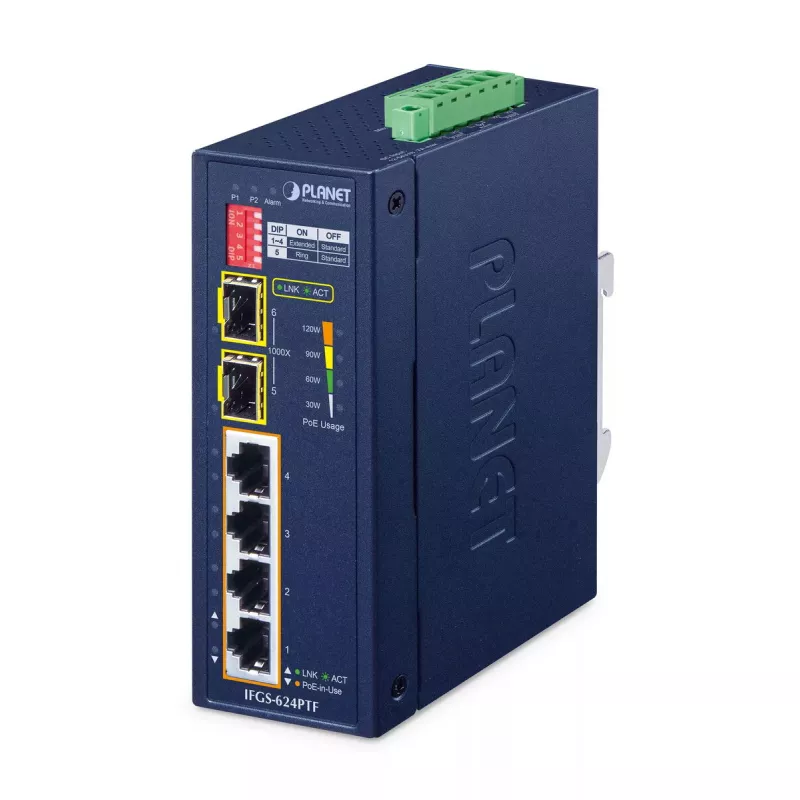

The PLANET IFGS-624PTF is an unmanaged industrial Fast Ethernet PoE+ switch with four 10/100BASE-TX PoE+ ports and two 1000BASE-X SFP fiber uplink ports. Housed in an IP40 metal enclosure and supporting 12–54V DC redundant power input, it delivers up to 120 W total PoE power and operates across an extended temperature range of -40 to 75 °C. The compact DIN-rail / wall-mountable design and plug-and-play operation make it suitable for straightforward deployment in harsh or space-limited industrial environments.

Advantages

The IFGS-624PTF provides full 802.3at PoE+ support on four Fast Ethernet ports with a total power budget of up to 120 W, dual SFP uplinks for long-distance Gigabit fiber connections, and super-fast ring recovery for fault tolerance. It includes a wide 12–54V DC input with power-boost capability, dual power inputs for redundancy, robust ESD and surge protection, and clear PoE usage LEDs for real-time monitoring.

Suitable for

• Industrial automation networks and PROFINET deployments
• Small factory floor or machine-level Ethernet and PoE device connections
• Long-distance uplink using fiber between buildings, cabinets or distribution points
• Space-constrained installations (DIN-rail or wall mounting)

Key specifications

• Ports: 4 × 10/100 Mbps PoE+ RJ-45, 2 × 1000BASE-X SFP
• PoE: IEEE 802.3at PoE+, total budget up to 120 W; extend mode supports 25 W per port at 10 Mbps up to 250 m
• Switching capacity: 4.8 Gbit/s; MAC table: 4000 entries
• Power input: Dual 12–54V DC with power boost to 54V DC
• Operating temperature: -40 to 75 °C
• Protection: Ethernet ESD ±6 kV contact/air, surge immunity ±6 kV
• Form factor: DIN-rail / wall mountable; IP40 metal housing; weight 0.613 kg

How to use

Mount the IFGS-624PTF on a DIN rail or fixed to a wall in your industrial enclosure. Connect the two DC power sources to the dual power input terminals to enable redundancy and automatic failover. Plug network devices into the four RJ-45 PoE+ ports and insert compatible 1000BASE-X SFP transceivers into the SFP slots for fiber uplinks. By default the device operates in standard PoE mode; use the built-in DIP switches to set one-key ring mode or to switch ports to Extend mode when longer PoE distance (up to 250 m at 10 Mbps) is required.

Recommendations

For reliable operation in industrial deployments, use appropriate single-mode or multi-mode SFP modules matching the required fiber distance, provide dual DC power inputs for redundancy, and configure the DIP switch to enable One Key Ring for fast recovery and Extend mode only when cable runs exceed 100 m.
