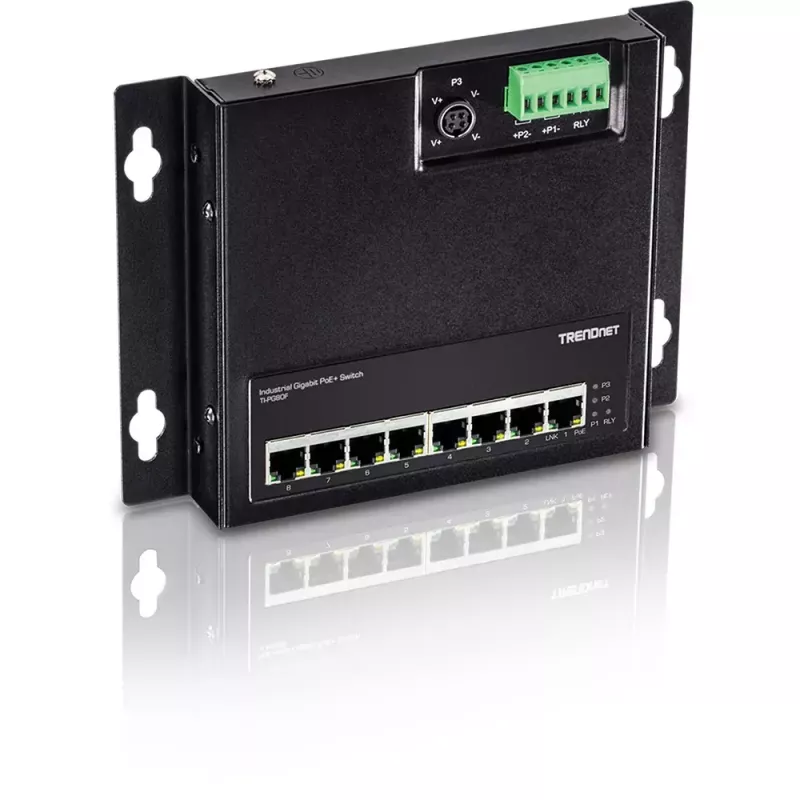

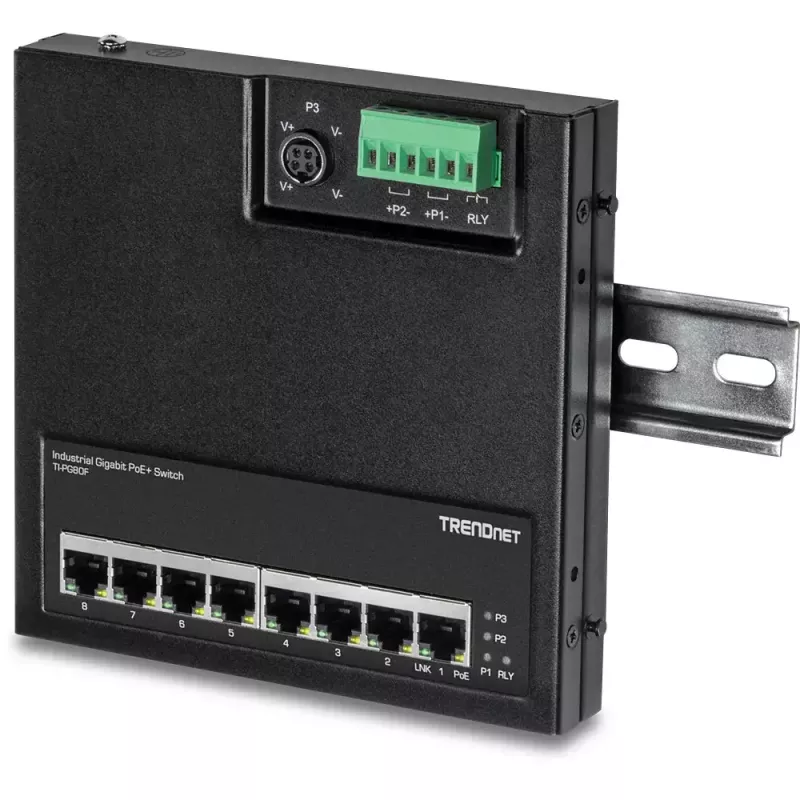

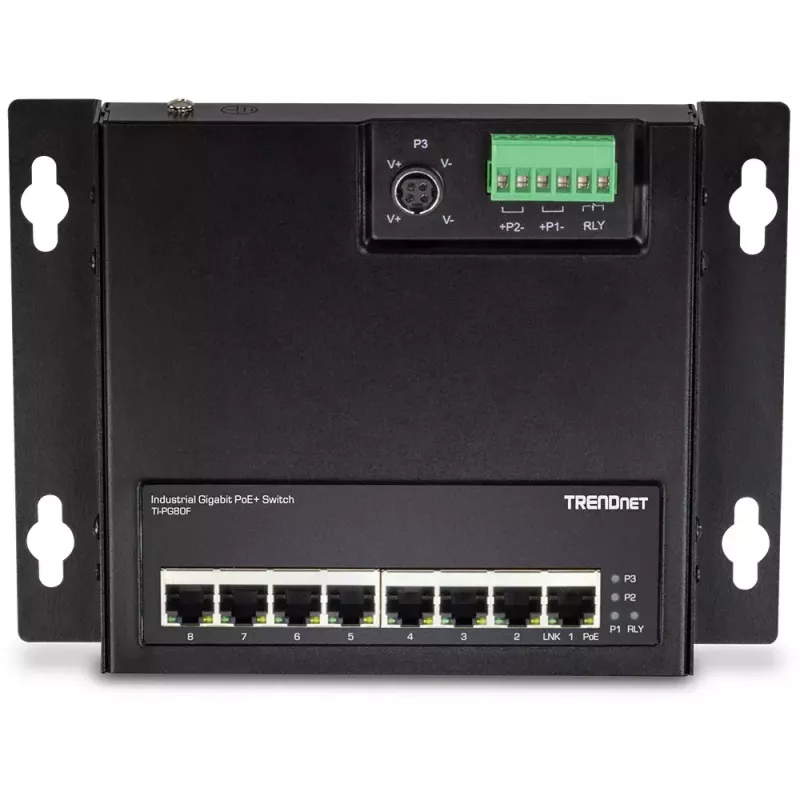

Switch unmanaged Trendnet TI-PG80F

The TRENDnet TI-PG80F is an unmanaged industrial gigabit Ethernet switch with eight front-access ports and Power over Ethernet (PoE+) support. Designed for wall-mounted, cabinet, or constrained-space installations, the compact metal enclosure meets IP30 protection and operates across a wide industrial temperature range. The switch provides gigabit connectivity for devices such as IP cameras, wireless access points and IoT appliances, and supports standard IEEE networking protocols for reliable basic switching.

Advantages

The TI-PG80F offers front-access ports and power interfaces for simplified installation and maintenance in tight spaces. Its metal IP30-rated housing and wide operating temperature range increase resilience in industrial environments. The switch supports gigabit speeds on all eight RJ-45 ports and delivers PoE/PoE+ power to connected devices while maintaining a 16 Gbit/s switching capacity and a 4096-entry MAC address table for basic network efficiency.

Suitable for

• IP surveillance systems with multiple PoE cameras
• Wireless access point deployments in cabinets or on walls
• IoT and automation devices requiring gigabit connectivity and PoE power
• Small industrial or commercial networks where unmanaged switching is sufficient

Key specifications

• Switch type: Unmanaged
• Ports: 8 × Gigabit Ethernet (10/100/1000) RJ-45 with PoE/PoE+ support
• Switching capacity: 16 Gbit/s
• MAC address table: 4096 entries
• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Input voltage: DC 48–56 V
• Operating temperature range: -40° to 75° C
• Enclosure: Metal, IP30-rated
• Mounting: Wall-mountable, compact form factor
• Weight: 0.635 kg

How to use

Mount the TI-PG80F on a wall or inside a cabinet using the provided mounting points. Connect the DC power source within the specified 48–56 V range to the switch, then attach devices to the front-access RJ-45 ports. PoE/PoE+ automatically supplies power to compatible devices; no configuration is required for basic operation. Ensure connected equipment and cabling meet the required standards for gigabit Ethernet and PoE.

Recommendations

Install the switch in a dry, ventilated area and use appropriate surge protection where necessary. For sustained PoE/PoE+ operation, verify the total power budget of the power source and distribute high‑power devices (such as PTZ cameras or multiple access points) across available ports to avoid exceeding the supply capacity.
