Switch video HDMI Vivolink VLSW131 3840x2160 60fps nero

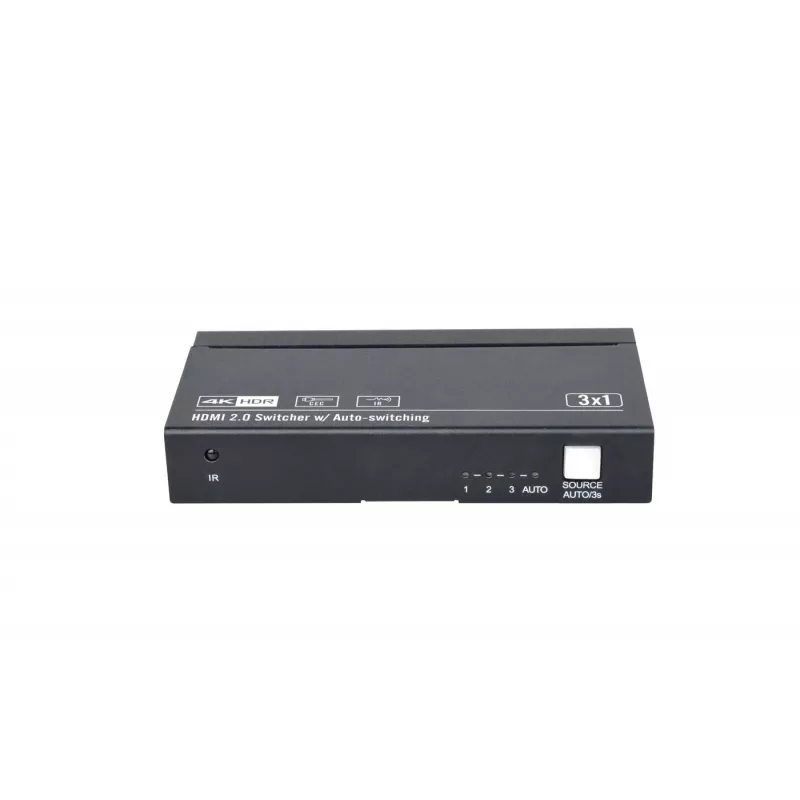

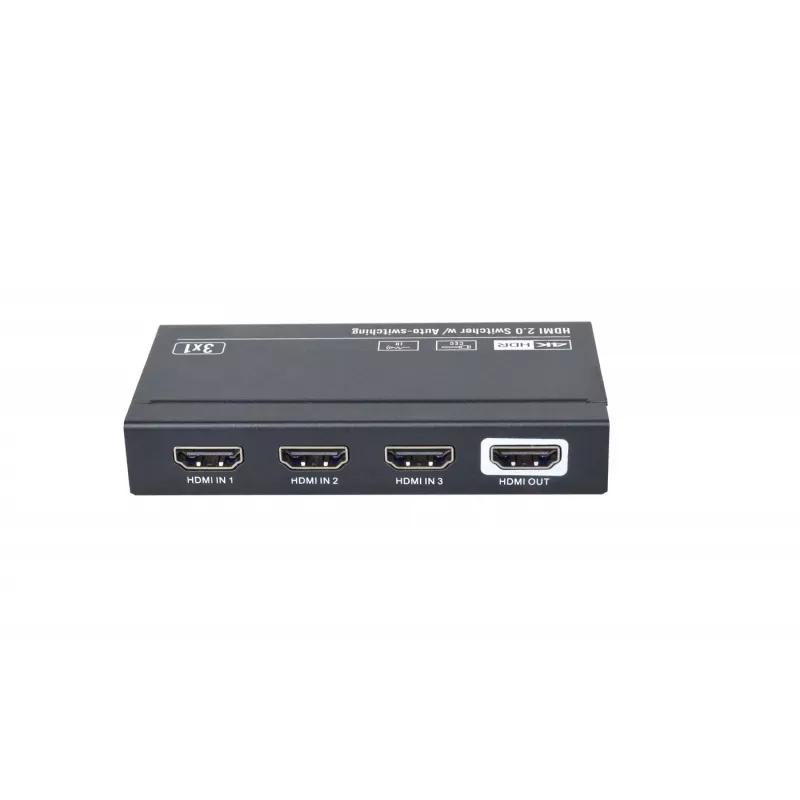

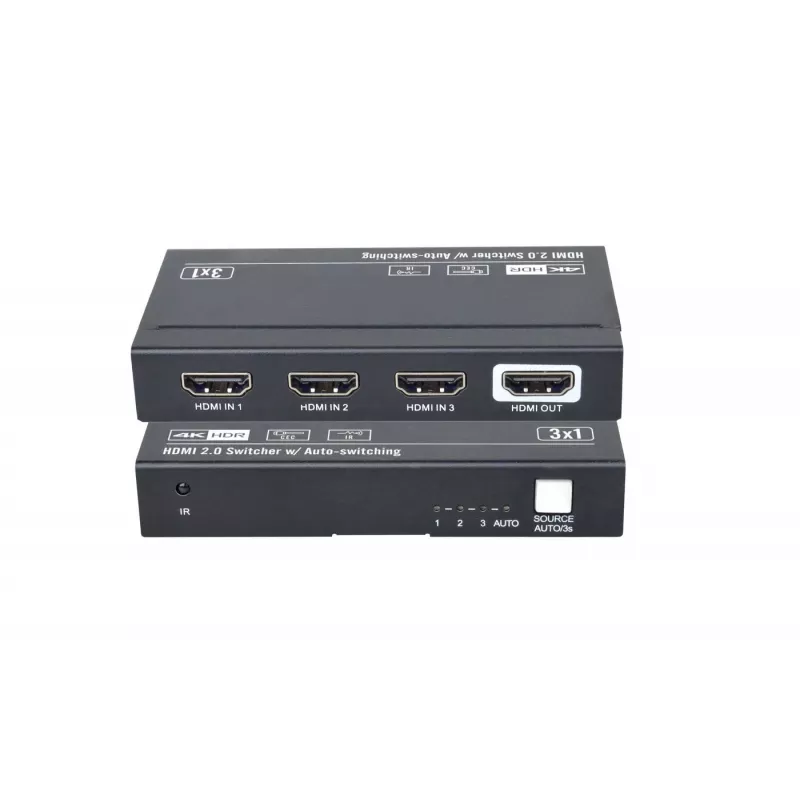

The Vivolink VLSW131 is a compact HDMI 3x1 switch that supports up to 3840×2160 (4K) at 60 Hz. It requires no external power supply and is powered via the HDMI 5 V line. The unit supports HDMI 2.0 and includes an IR sensor and remote for control. Its small footprint allows mounting behind a screen or inside AV furniture to combine three HDMI sources onto a single display input.

Advantages

The switch offers automatic input switching (autoswitching) and CEC pass-through for simplified device control. It is plug-and-play with no additional drivers or power adapters needed, and its HDMI 2.0 compliance ensures compatibility with modern UHD sources and displays. The included IR remote and external IR sensor provide convenient control when the unit is hidden from view.

Suitable for

• Home entertainment systems with multiple HDMI sources (Blu-ray, game console, streaming box)
• Conference rooms or meeting spaces to switch between laptops and media players
• Installation behind a TV or inside AV cabinets to save a display HDMI input

Key specifications

• Model: Vivolink VLSW131
• Inputs/Outputs: 3× HDMI inputs, 1× HDMI output
• Maximum resolution: 3840×2160 @ 60 Hz (4K60)
• HDMI version: HDMI 2.0 compliant
• Power: Powered via HDMI 5 V (no external PSU required)
• Control: IR remote and IR sensor included; supports CEC pass-through
• Colour: Black
• Dimensions (W×D×H): 105 × 55 × 18 mm
• Weight: 0.18 kg

How to use

Connect up to three HDMI source devices to the HDMI IN ports and connect the HDMI OUT to your display. The switch will draw power from the connected HDMI source (5 V) and operate without an external power adapter. Use the remote control or let the autoswitching function select the active input automatically; CEC commands can also control compatible devices. If the switch is mounted out of sight, position the included IR sensor so it can receive signals from the remote.

Recommendations

For reliable 4K@60Hz performance use high-quality HDMI 2.0 cables and ensure at least one connected source provides 5 V supply on the HDMI line. If multiple hidden devices are used, place the IR sensor where the remote has a clear path and test CEC behavior with your specific TV and source combinations.
