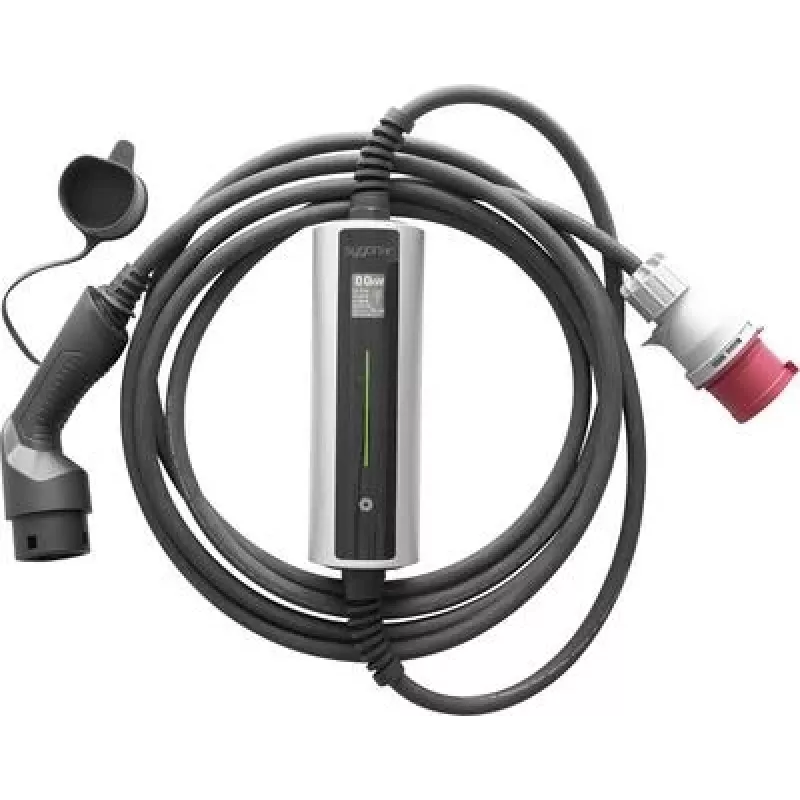

Sygonix Stazione di ricarica mobile Type 2 Mode 2 32 A 22 kW (SY-6723958)

Charging an electric vehicle away from a fixed wallbox often means relying on slow, unpredictable charging options. The Sygonix Mobile Charging Station Type 2 Mode 2 solves this by delivering up to 22 kW of power through a standard CEE 32 A industrial socket, giving you fast and reliable three-phase charging wherever such a socket is available.

Who is it for

This mobile charger is ideal for EV drivers who need a portable, high-power charging solution for use at locations without a dedicated charging station, such as workshops, farms, or temporary sites. It suits vehicles with a Type 2 inlet and supports adjustable current settings to match the available supply.

Main features

• Mode 2 charging with a maximum output of 22 kW and 32 A
• Adjustable charging current: 6 A, 8 A, 10 A, 13 A, 16 A, 20 A, 24 A, 32 A
• Three-phase 400 V AC input via CEE 32 A red industrial plug
• Type 2 vehicle connector (IEC 62196-2) with 5 m cable
• Control box with IP67 protection and LCD display for status monitoring
• Integrated safety features: overcurrent, undervoltage, overvoltage, short circuit, overtemperature, and ground fault protection
• RCD Type A with 6 mA DC fault current detection
• Operating temperature range: -30 °C to +50 °C

Specifications

• Charging mode: Mode 2
• Max. charging power: 22 kW
• Max. charging current: 32 A
• Adjustable current levels: 6/8/10/13/16/20/24/32 A
• Phases: 3-phase
• Input voltage: 400 V AC
• Output voltage: 400 V AC
• Vehicle connector: Type 2 (IEC 62196-2)
• Grid connector: CEE 32 A (3-phase, red)
• Cable length: 5 m
• Control box IP rating: IP67
• Plug IP rating (when connected): IP54
• RCD type: Type A + 6 mA DC fault current detection
• Display: LCD
• Operating temperature: -30 °C to +50 °C
• Certifications: CE, TÜV
• Control box housing material: Polycarbonate (PC)
• Cable material: Thermoplastic Polyurethane (TPU)

Tips

Before use, ensure the CEE socket is rated for at least 32 A and protected by an appropriate circuit breaker. Select the charging current according to the socket's capacity to avoid overloading. The LCD display shows real-time charging status and any error codes for quick troubleshooting.
