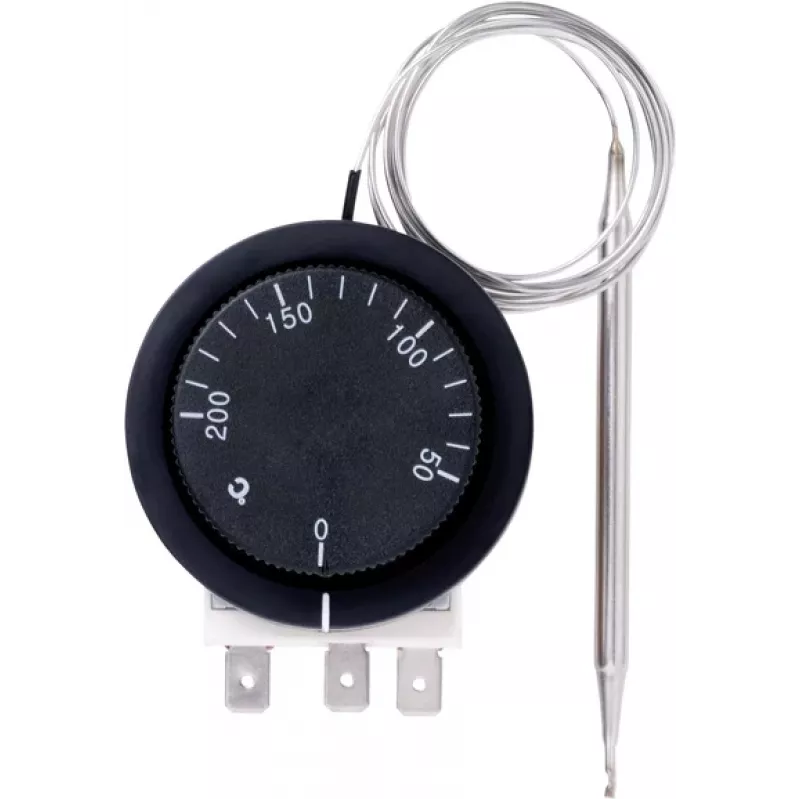

Sygonix SY-5044434 termostato da incasso 50-200°C con sonda capillare

For precise temperature regulation in ovens, fryers, heating plates and other thermal equipment, the Sygonix SY-5044434 built-in thermostat offers a mechanical control range of 50 to 200 °C. Its capillary tube sensor with a 1000 mm capillary and stainless steel probe (Ø 6 x 70 mm) allows flexible placement, while the flush-mount design with 60 mm installation diameter fits standard cut-outs. The rotary knob provides simple, reliable adjustment without the need for programming.

Key specifications

• Temperature control range: 50 - 200 °C
• Sensor type: Capillary tube sensor
• Capillary tube length: 1000 mm
• Sensor probe dimensions: Ø 6 x 70 mm
• Switching capacity: 16 A at 230 V AC
• Contact type: 1 changeover contact (CO)
• Switching differential (hysteresis): approx. 5 K
• Mounting type: Flush mount
• Installation diameter: 60 mm
• Installation depth: 43 mm
• Housing material: Plastic
• Sensor material: Stainless steel
• Control method: Mechanical rotary knob
• Connection type: Screw terminals
• Operating voltage: 230 V AC

Why choose it

The Sygonix built-in thermostat delivers dependable mechanical temperature control without complex electronics. Its robust stainless steel sensor and generous capillary length provide installation flexibility, while the 16 A switching capacity handles high-power heating elements. The simple rotary knob allows quick adjustments, making it ideal for both replacement and new installations.

Ideal use cases

• Temperature control in electric ovens and grills
• Regulation of deep fryers and heating plates
• Replacement thermostat for catering equipment
• Custom thermal control projects

Good to know

The thermostat is designed for flush mounting in panels or equipment housings. The capillary sensor should be routed without sharp bends to ensure accurate temperature sensing. Screw terminals provide secure electrical connections.
