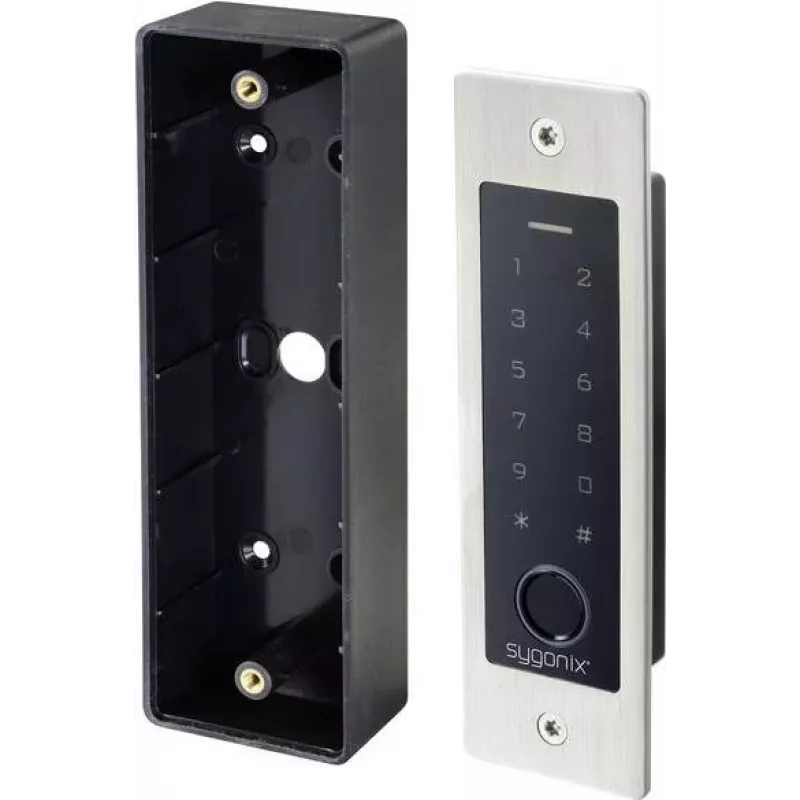

Sygonix SY-5231014 sistema di controllo accessi da incasso con impronta digitale/RFID e tastiera illuminata, 12-18 V DC, IP55

Secure residential or commercial entry points with the Sygonix SY-5231014, a flush-mount access control system supporting fingerprint, RFID card, and PIN code authentication. Designed for gates, doors, and restricted areas, it offers flexible access management with a capacity of up to 1000 users. The illuminated keypad ensures visibility in low-light conditions, while the IP55-rated zinc alloy housing withstands outdoor exposure.

Key specifications

• Authentication methods: fingerprint, RFID card, PIN code
• User capacity: 1000 (100 fingerprints, 900 RFID cards/PINs)
• RFID frequency: 125 kHz, EM-ID compatible, reading distance 2-6 cm
• Relay output: 1x NO/NC/COM, Wiegand 26/34 output
• Adjustable door open time: 0-99 seconds
• Power supply: 12-18 V DC, standby current <100 mA, operating current <150 mA
• Operating temperature: -20 °C to +50 °C, humidity 10%-90% RH
• Housing: zinc alloy, IP55, flush-mount installation
• Additional features: tamper alarm, door sensor input

Why choose it

The Sygonix SY-5231014 combines three authentication methods in one durable unit, providing flexibility for different user preferences. Its IP55 rating and zinc alloy construction make it suitable for outdoor installation, while the illuminated keypad enhances usability at night. The tamper alarm adds an extra layer of security.

Ideal use cases

• Residential gates and doors requiring keyless entry
• Small office or warehouse access control
• Areas needing multi-factor authentication (fingerprint + PIN)
• Outdoor entry points exposed to weather

Good to know

The system supports Wiegand 26/34 output for integration with existing access control panels. Door open time is adjustable from 0 to 99 seconds. Installation requires a flush-mount box (not included).
