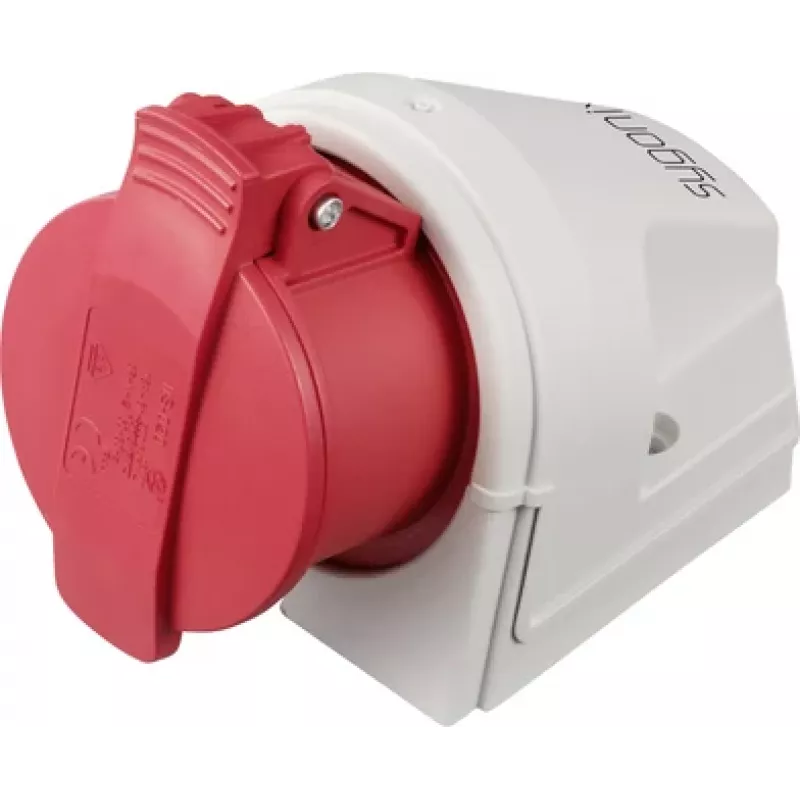

Sygonix SY-6261876 Presa a parete CEE 16 A 5 poli 415 V/AC IP44

The Sygonix SY-6261876 is a robust CEE wall socket engineered for demanding industrial and commercial power connections. Its 5-pole configuration (3P+N+PE) and 16 A rating at 415 V/AC deliver reliable three-phase power, while the IP44 protection makes it suitable for environments where dust and water splashes are a concern.

Highlights

• 16 A current rating for high-power equipment
• 5-pole (3P+N+PE) for three-phase systems
• IP44 protection against dust and splashing water
• Wall-mounted design with screw terminals
• Durable polyamide housing and brass contacts

In daily use

This socket is built for permanent installation in workshops, industrial facilities, and outdoor areas where a reliable power connection is essential. The 6h clock position ensures compatibility with standard CEE plugs, and the screw terminals accept cable cross-sections from 1.5 mm² to 4 mm², making wiring straightforward.

Full specifications

• Current rating: 16 A
• Voltage rating: 415 V/AC
• Number of poles: 5 (3P+N+PE)
• IP protection class: IP44
• Frequency: 50/60 Hz
• Clock position: 6h
• Connection type: Screw terminals
• Mounting type: Wall-mounted
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Colour: Red / Grey
• Operating temperature range: -25°C to +40°C
• Standards: IEC 60309
• Min. cable cross-section: 1.5 mm²
• Max. cable cross-section: 4 mm²
• Flammability rating: UL94 V2
• Glow wire test: 850 °C

Final note

For a secure and long-lasting three-phase power connection, the Sygonix SY-6261876 offers the durability and performance expected in industrial environments.
