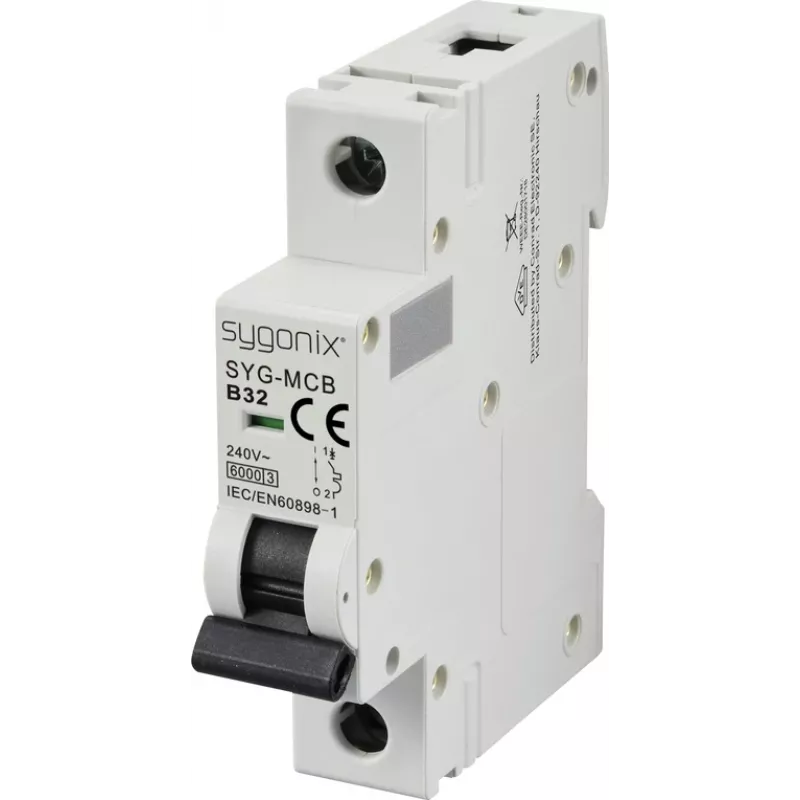

Sygonix SY-6440886 SYG-MCB 1P/B32/6KA Interruttore automatico magnetotermico 1 polo 32 A 240 V/AC

Miniature circuit breaker (MCB) with 1-pole protection, rated for 32 A and 240 V/AC. Provides reliable overcurrent and short-circuit protection for residential and commercial electrical installations. Tripping characteristic B with a short-circuit breaking capacity of 6 kA.

Advantages

Compact DIN rail mounting, screw terminals for conductors up to 25 mm², and a wide operating temperature range from -25 to +55 °C.

Suitable for

• Protection of lighting and socket circuits
• Residential distribution boards
• Commercial electrical panels

Key specifications

• Number of poles: 1
• Rated current: 32 A
• Rated voltage: 240 V/AC
• Tripping characteristic: B
• Rated short-circuit breaking capacity (Icn): 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal capacity: 1 - 25 mm²
• Connection: Screw terminals
• Electrical life: 10,000 cycles
• Mechanical life: 20,000 cycles
• Energy limiting class: 3
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 500 V
• Pollution degree: 2
• Operating temperature: -25 to +55 °C

Recommendations

Ideal for protecting circuits with moderate inrush currents. Ensure proper sizing according to load and cable cross-section.
