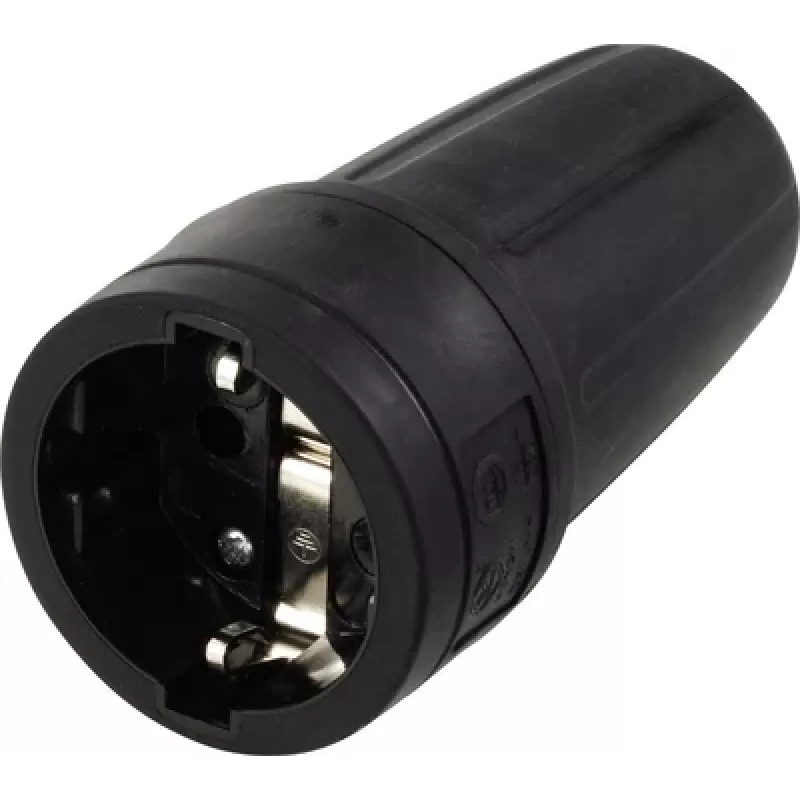

Sygonix SY-6618472 connettore femmina Schuko TPE 250 V/AC nero

Rated for 16 A at 250 V AC, this Schuko coupling handles demanding power connections with ease. The SY-6618472 is a female CEE 7/3 socket with screw terminals for secure cable assembly, housed in a black thermoplastic elastomer (TPE) body that withstands temperatures from -25 to +60 °C.

Overview

The Sygonix SY-6618472 is a Schuko coupling (female) designed for DIY power cable assembly. It features a straight cable entry and screw terminals for conductors up to 2.5 mm², making it suitable for a wide range of applications. The nickel-plated brass contacts ensure reliable conductivity.

What stands out

• Robust TPE housing for durability and flexibility
• 2-pole + earth (2P+E) configuration for safety
• Straight cable entry simplifies installation
• Wide operating temperature range from -25 to +60 °C

Technical details

• Connector type: Schuko coupling (female)
• Plug standard: CEE 7/3
• Rated voltage: 250 V AC
• Rated current: 16 A
• Number of poles: 2P+E
• Housing material: Thermoplastic elastomer (TPE)
• Color: Black
• Connection type: Screw terminals
• Cable entry: Straight
• Max. cable cross-section: 2.5 mm²
• Contact material: Brass (nickel-plated)
• Flammability rating: V-2

Our verdict

A reliable and durable Schuko coupling for custom power cable builds, offering solid performance in a compact design.
