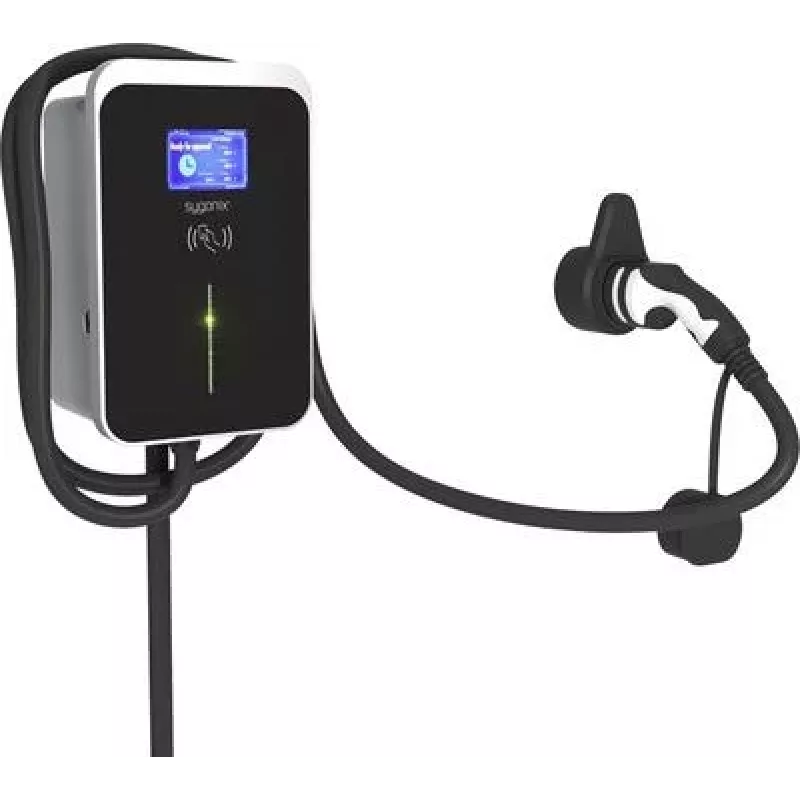

Sygonix wallbox Type 2 Mode 3 32 A 22 kW App WiFi RFID (SY-6687958)

The Sygonix Wallbox SY-6687958 delivers 22 kW three-phase charging for electric vehicles, combining app and RFID control in a robust wall-mounted unit. Unlike basic chargers, it includes an integrated energy meter and two RFID cards for access management.

Highlights

• 22 kW maximum charging power via Type 2 connector
• Mode 3 charging with 32 A current, 400 V input
• Control via WiFi app or RFID cards (2 included)
• Integrated 5 m charging cable
• IP54 and IK10 rated housing for outdoor durability

In daily use

The wallbox supports 3-phase 400 V AC at 50 Hz, with an operating range of -25°C to +50°C. Its polycarbonate housing and integrated energy meter make it suitable for private and semi-public installations.

Full specifications

• Charging standard: Type 2
• Charging mode: Mode 3
• Maximum charging power: 22 kW
• Maximum charging current: 32 A
• Phases: 3-phase
• Input voltage: 400 V AC
• Frequency: 50 Hz
• Connectivity: WiFi, RFID
• Control method: App control, RFID card
• RFID cards included: 2
• Integrated cable length: 5 m
• Protection class: IP54
• Impact resistance: IK10
• Safety features: Overcurrent protection, Residual current protection (Type A + 6mA DC), Overvoltage protection, Undervoltage protection, Over-temperature protection, Ground fault protection
• Display type: LED status indicator
• Mounting type: Wall mounting
• Operating temperature range: -25°C to +50°C
• Housing material: PC (Polycarbonate)
• Energy meter: Integrated

Final note

With its integrated energy meter and dual access control, this wallbox is a complete solution for managed EV charging.
