Synergy 21 patch panel in fibra ottica 24x LC-Duplex fori, 19 pollici 1U, non popolato, nero

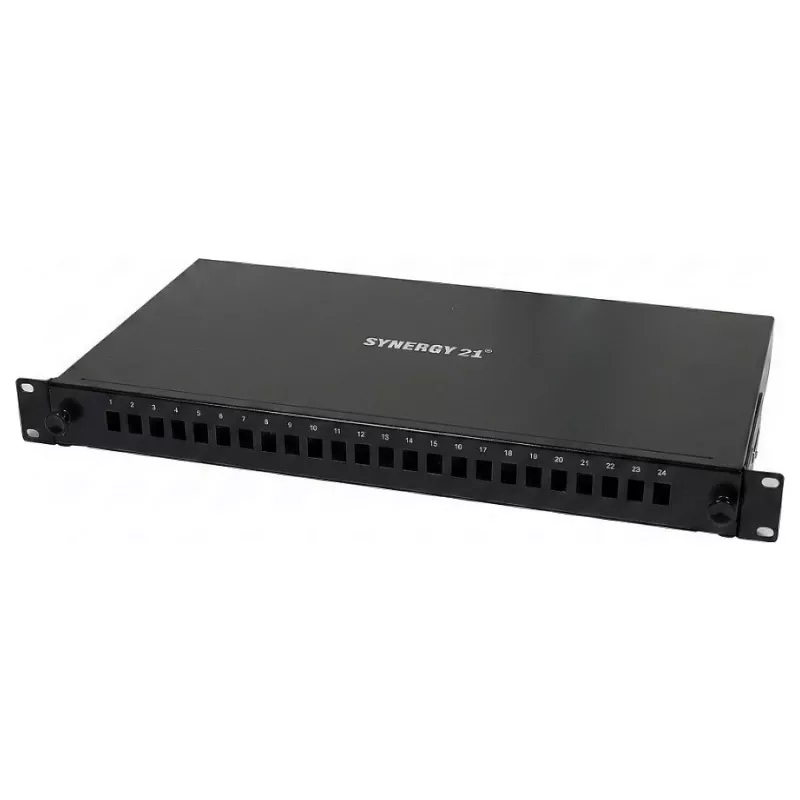

The Synergy 21 S216299V3 is a high-quality fiber optic patch panel designed for professional network installations. It provides 24 LC-Duplex cutouts in a compact 1U 19-inch form factor, allowing for efficient fiber management and organization. The panel is unpopulated, meaning no LC couplers are included, giving you the flexibility to install your own connectors as needed. Its robust steel construction and sleek black finish ensure durability and a clean appearance in any server rack or network cabinet.

Advantages

This patch panel offers several key benefits for network administrators and installers. The 24-port configuration supports up to 48 fibers, making it ideal for high-density fiber environments. The unpopulated design allows for customization with different types of LC couplers, including simplex or duplex, and supports both single-mode and multimode fibers. Integrated cable routing and strain relief features simplify cable management and protect fiber connections. The panel is compliant with RoHS and CE standards, ensuring safety and environmental responsibility.

Suitable for

• Data centers and server rooms requiring high-density fiber patching
• Telecommunications and IT infrastructure installations
• Fiber-to-the-desk (FTTD) and local area network (LAN) applications
• Upgrading or expanding existing fiber optic networks

Key specifications

• Product Type: Fiber Optic Patch Panel
• Rack Unit: 1U
• Rack Size: 19 inch
• Port Configuration: 24x LC-Duplex Cutouts
• Fiber Capacity: 48 Fibers (max)
• Couplers Included: No (Unpopulated)
• Color: Black
• Housing Material: Steel
• Mounting Type: Rack Mount
• Cable Entry: Rear
• Front Panel Design: Fixed
• Compatibility: Standard 19-inch network cabinets
• Application Environment: Indoor
• Operating Temperature Range: -10°C to +60°C
• Storage Temperature Range: -20°C to +70°C
• Protection Rating: IP20
• Cable Management Features: Integrated cable routing and strain relief
• Standard Compliance: RoHS, CE

Recommendations

For optimal performance, pair this patch panel with high-quality LC duplex couplers and fiber optic cables. Ensure proper cable management and strain relief to maintain signal integrity. Suitable for use in indoor environments with controlled temperature and humidity.
