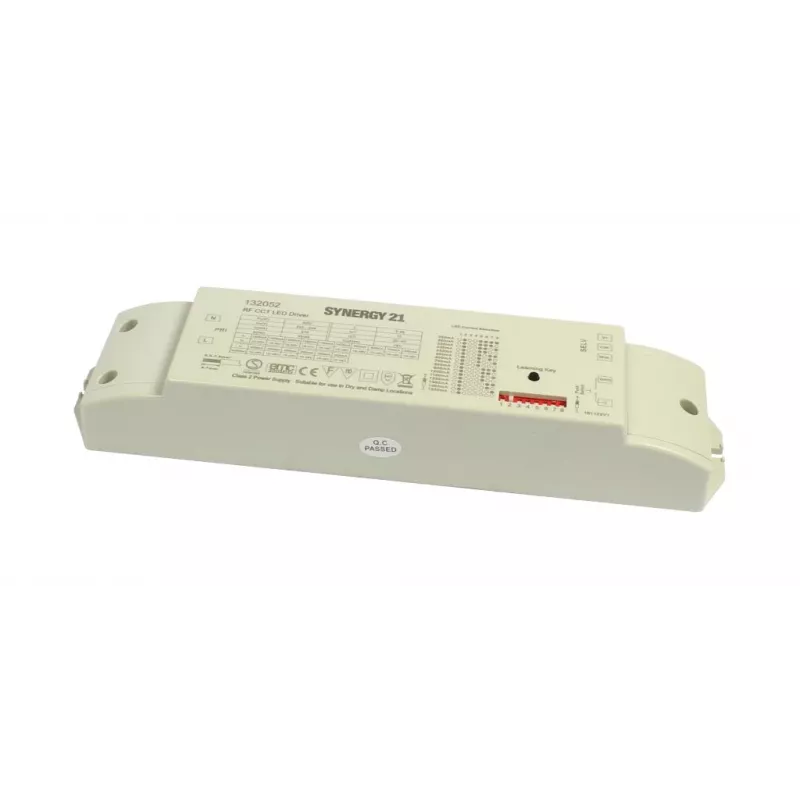

SYNERGY21 EOS 05 controller LED DALI-2 a 4 canali con alimentatore 24V 75W

LED controller with integrated constant voltage power supply, delivering 75W across four channels at 24V DC. Supports DALI-2 DT8 protocol for tunable white and RGBW applications, enabling precise 0-100% dimming control.

Advantages

Combines control and power in one unit, simplifying installation. DALI-2 compatibility ensures interoperability with standard lighting control systems. Four channels allow independent control of multiple LED strips or modules.

Suitable for

• 24V constant voltage LED strips and modules
• Tunable white and RGBW lighting setups
• Commercial and residential DALI-2 lighting systems

Key specifications

• Output: 24V DC, 75W, 4 channels
• Control protocol: DALI-2, device type DT8
• Input: 200-240V AC, 50/60Hz
• Dimming range: 0-100%
• Protection: overload, short circuit, over temperature
• Operating temperature: -20°C to +45°C
• IP rating: IP20
• Material: plastic housing

Recommendations

Ideal for projects requiring DALI-2 control of constant voltage LED lighting with integrated power.
