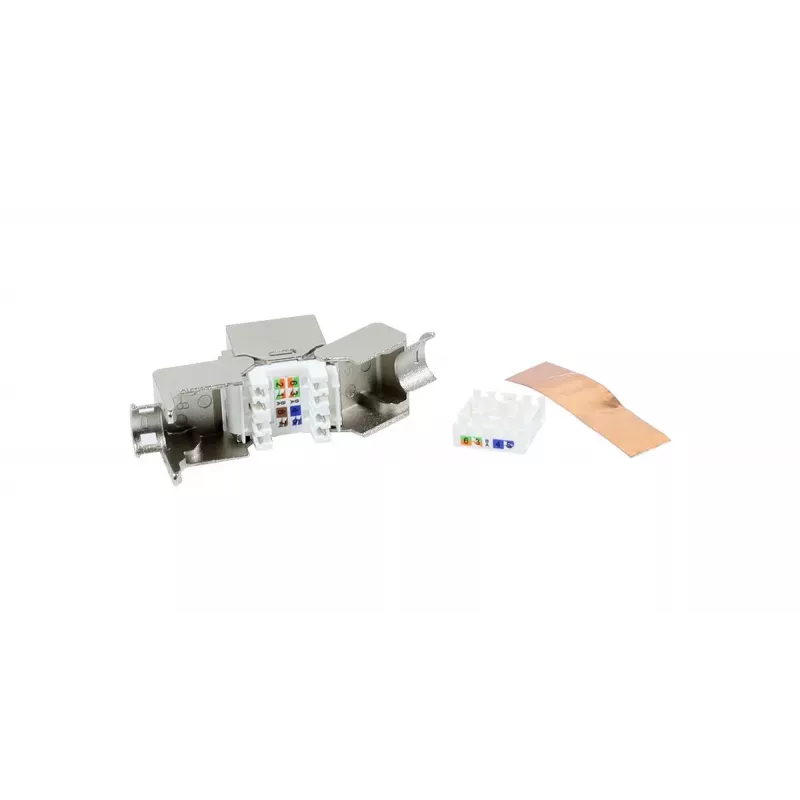

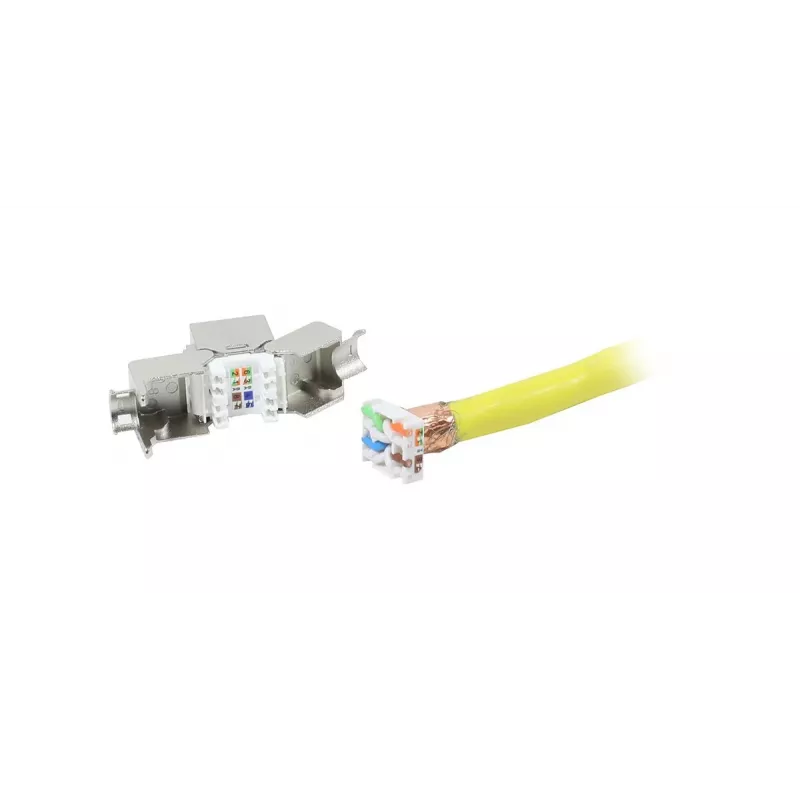

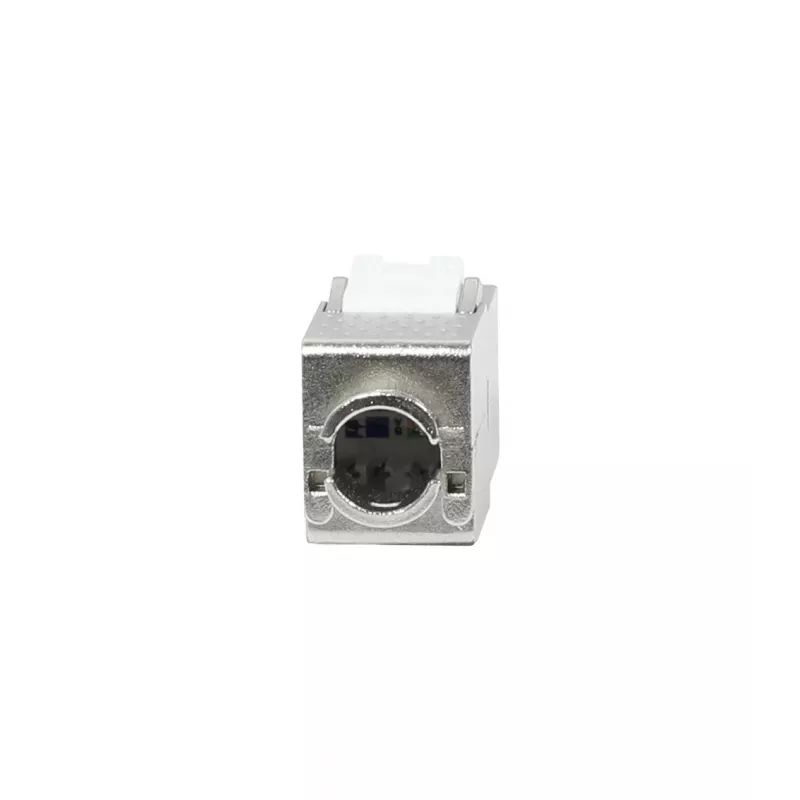

SYNERGY21 S216378V3 CAT8.1 Modulo keystone RJ45, slim-line corto, certificato GHMT, bianco

Engineered for 40 Gigabit Ethernet over twisted-pair copper, this keystone module delivers a 2000 MHz bandwidth in a slim-line, short-depth housing. The tool-free IDC termination and die-cast zinc body make it a practical choice for high-density CAT8.1 installations.

Overview

The SYNERGY21 S216378V3 is a fully shielded CAT8.1 keystone module with an RJ45 connector. It supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) and is GHMT certified. The module snaps into standard keystone ports and accepts solid or stranded conductors from AWG 22 to 24.

What stands out

• 2000 MHz bandwidth for 40GBASE-T
• Slim-line, short-depth design for tight spaces
• Tool-free IDC termination
• Die-cast zinc housing with gold-plated contacts
• GHMT certified

Technical details

• Connector: RJ45
• Performance: Category 8.1
• Shielding: Fully shielded (STP/FTP)
• Data rate: 40 Gbit/s
• Bandwidth: 2000 MHz
• Colour: White
• Material: Die-cast zinc
• Contact plating: Gold
• Termination: Tool-free IDC
• PoE: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standards: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2-1
• Cable compatibility: AWG 22-24, solid or stranded

Our verdict

A compact, certified CAT8.1 keystone module that delivers full 40G performance with tool-free installation.
