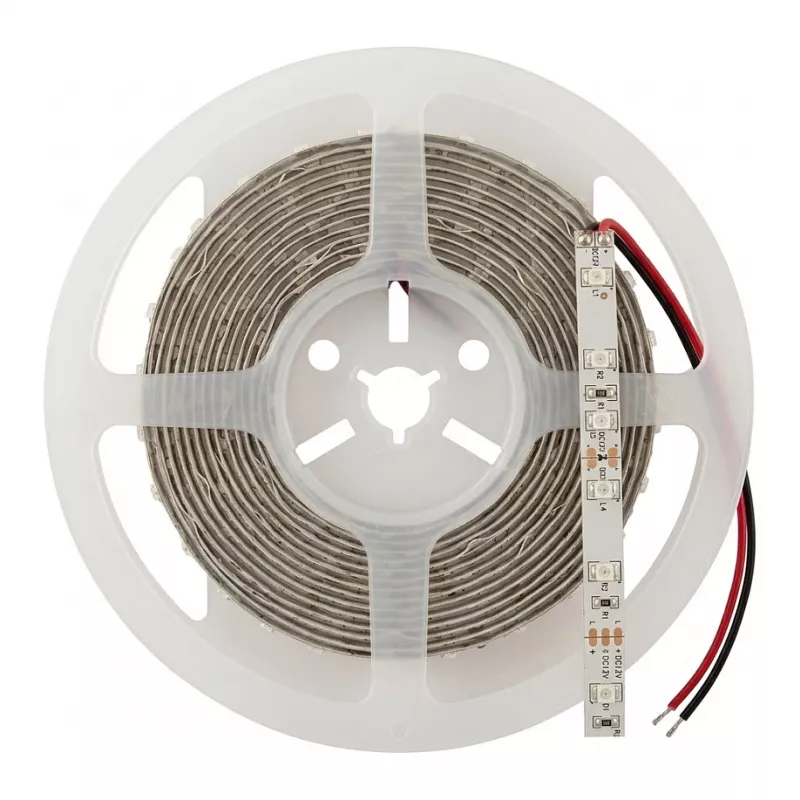

SYNERGY21 striscia LED Flex 3528 - 224 DW (CCT) DC24V 20W per colore IP20 CRI>80

The SYNERGY21 LED Flex Strip 3528 - 224 DW (CCT) is a high-performance dual white LED strip designed for professional indoor lighting applications. Featuring SMD 3528 LEDs with a density of 224 LEDs per meter, this strip delivers exceptional brightness and color tuning capability. Operating at DC 24V, it consumes up to 20W per color channel, providing a luminous flux of approximately 1500-1600 lm per meter per channel. With a CRI greater than 80, colors appear natural and vibrant. The strip is dimmable with a compatible CCT controller and offers a beam angle of 120° for wide illumination. It can be cut at marked segments (typically every 50mm or 100mm) for custom lengths. The flexible copper PCB with 3M self-adhesive backing ensures easy installation on various surfaces. Suitable for indoor use only (IP20), it operates in temperatures from -20°C to +45°C and has an expected lifespan of up to 50,000 hours. The color temperature range spans from 2700K (warm white) to 6500K (cool white), controlled via two channels (warm white and cool white). Maximum recommended run length is 5 meters.

Advantages

This LED strip offers tunable white light, allowing you to adjust the color temperature from warm to cool white to suit any mood or task. High LED density ensures uniform illumination without hotspots. The 24V DC operation provides safety and efficiency, while the adhesive backing simplifies installation. Dimmability adds flexibility for creating dynamic lighting scenes.

Suitable for

• Indoor accent lighting
• Under-cabinet lighting
• Display and shelf lighting
• Coove lighting and architectural highlights
• Retail and hospitality environments

Key specifications

• LED Type: SMD 3528
• LED Density: 224 LEDs/m
• Color Type: Dual White (CCT)
• Voltage: DC 24V
• Max Power Consumption: 20W per color channel per meter
• IP Rating: IP20
• CRI: >80
• Dimmable: Yes (with compatible CCT controller)
• Beam Angle: 120°
• Cuttable: Yes (every 50mm or 100mm)
• Adhesive Backing: Yes (3M tape)
• Operating Temperature: -20°C to +45°C
• Lifespan: Up to 50,000 hours
• PCB Material: Flexible Copper
• Color Temperature Range: 2700K - 6500K
• Number of Channels: 2 (Warm White, Cool White)
• Luminous Flux: ~1500-1600 lm/m per channel
• Max Recommended Run Length: 5m

Recommendations

For optimal performance, use with a compatible 24V DC power supply and a CCT LED controller. Ensure proper heat dissipation when mounting on heat-sensitive surfaces. Not suitable for outdoor or damp locations.
