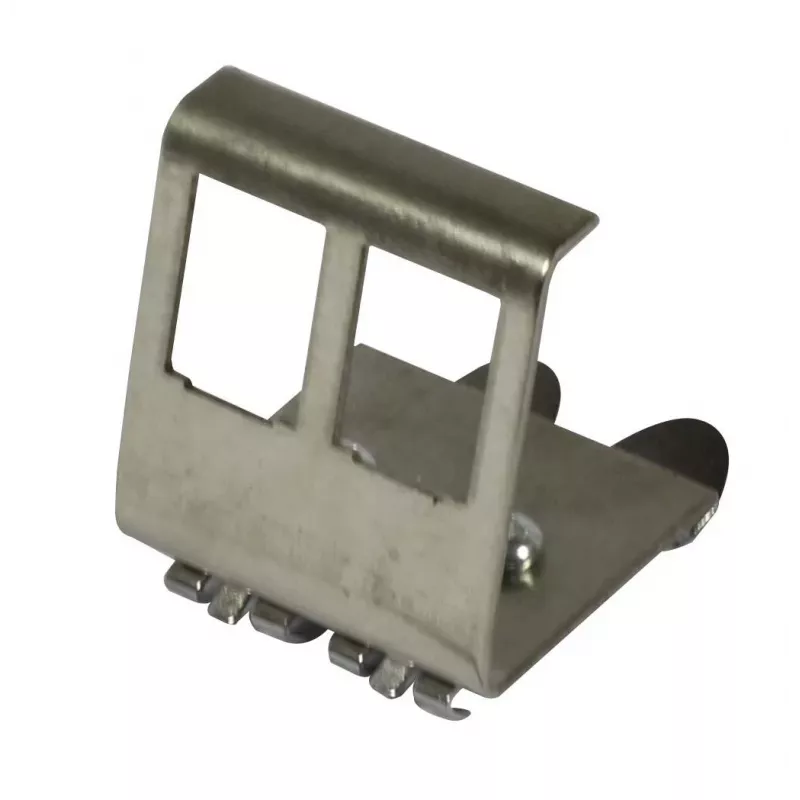

Synergy 21 adattatore per guida DIN modulo keystone per 2x modulo TP, grigio chiaro (RAL 7035)

The Synergy 21 Keystone Module DIN Rail Adapter is a high-quality mounting solution designed for industrial and building automation applications. It allows for the secure installation of up to two keystone modules (AMJ/UMJ compatible) on a standard DIN rail (TS35 according to EN 60715). The adapter is made from halogen-free PC/ABS plastic with a light grey (RAL 7035) finish, ensuring durability and a professional appearance.

Advantages

This adapter offers a compact and reliable way to integrate keystone modules into DIN rail systems. Its 1 TE width saves space, while the robust material and flammability rating UL94 V-0 ensure safety and longevity. The tool-free snap-on mounting simplifies installation and maintenance.

Suitable for

• Industrial Ethernet networks
• Building automation systems
• Network distribution cabinets
• Control panels and junction boxes

Key specifications

• Product Type: Keystone Module DIN Rail Adapter
• Number of Module Slots: 2
• Module Type Compatibility: Keystone (AMJ/UMJ compatible)
• Mounting Type: DIN Rail (TS35 according to EN 60715)
• Material: PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene)
• Halogen-Free: Yes
• Color: Light Grey (RAL 7035)
• Operating Temperature: -40 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Protection Class: IP20
• Flammability Rating: UL94 V-0
• Width in Pitch Units (TE): 1 TE
• Standard Compliance: EN 60715
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal performance, pair this adapter with Synergy 21 keystone modules and use in a clean, dry environment within the specified temperature range. Ensure proper DIN rail alignment for secure mounting.
