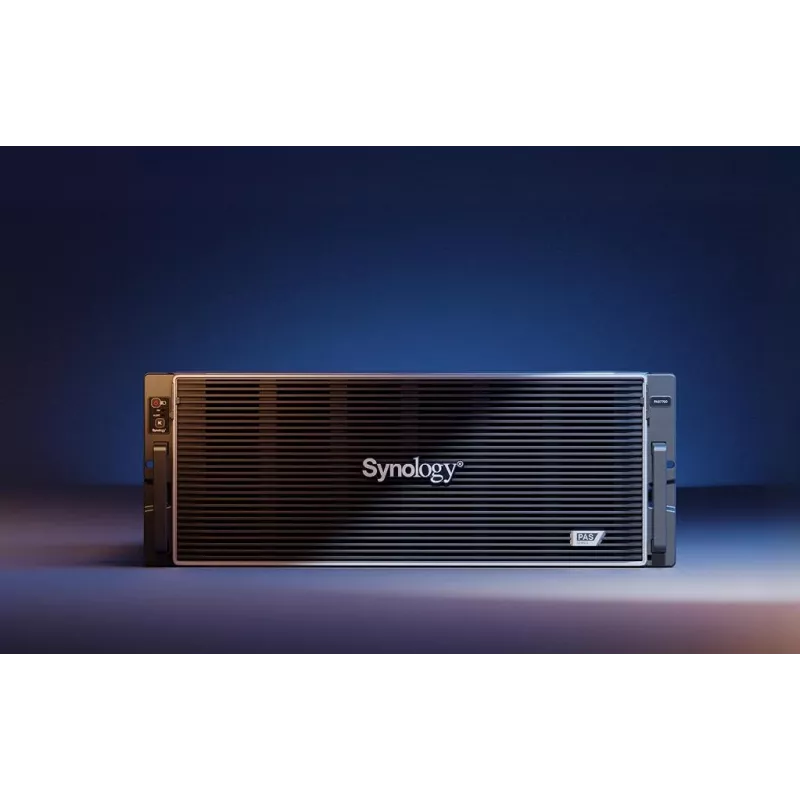

Synology PAS7700 48-Bay PA Station 7443P - SAN - Parallelo

The Synology PAS7700 is a high-performance 48-bay Storage Area Network (SAN) system designed for enterprise environments requiring massive storage capacity and high availability. With dual redundant power supplies and advanced data protection features, it ensures business continuity and data integrity.

Advantages

Massive scalability with up to 1056 TB raw capacity using 22 TB drives, dual 10GbE and 16Gb Fibre Channel connectivity for high-speed data access, and comprehensive RAID support including Synology Hybrid RAID for flexible storage management.

Suitable for

• Enterprise data centers requiring high-capacity SAN storage
• Virtualized environments with VMware, Hyper-V, or Citrix
• Backup and disaster recovery solutions
• Media and entertainment workflows with large file sizes

Key specifications

• Product Type: Storage Area Network (SAN) System
• Form Factor: 4U Rackmount
• Drive Bays: 48
• Compatible Drive Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Maximum Raw Capacity: 1056 TB (48 x 22 TB HDDs)
• Processor: Intel Xeon D-1541 Octa-core 2.1 GHz
• System Memory: 64 GB DDR4 ECC RDIMM (expandable to 512 GB)
• Network Interfaces: 4 x 10GbE RJ-45, 2 x 16Gb Fibre Channel (FC) ports
• Expansion Ports: 2 x Mini-SAS HD
• RAID Support: Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6, 10, 50, 60
• Supported Protocols: iSCSI, Fibre Channel, NFS, SMB/CIFS, FTP, WebDAV
• File System: Btrfs, EXT4
• Power Supply: Dual Redundant 1600W
• Management: Synology DiskStation Manager (DSM)
• Warranty: 5-Year Limited

Recommendations

Ideal for organizations that need a robust, high-density SAN solution with excellent performance and reliability. The PAS7700 is a future-proof investment for growing data demands.
