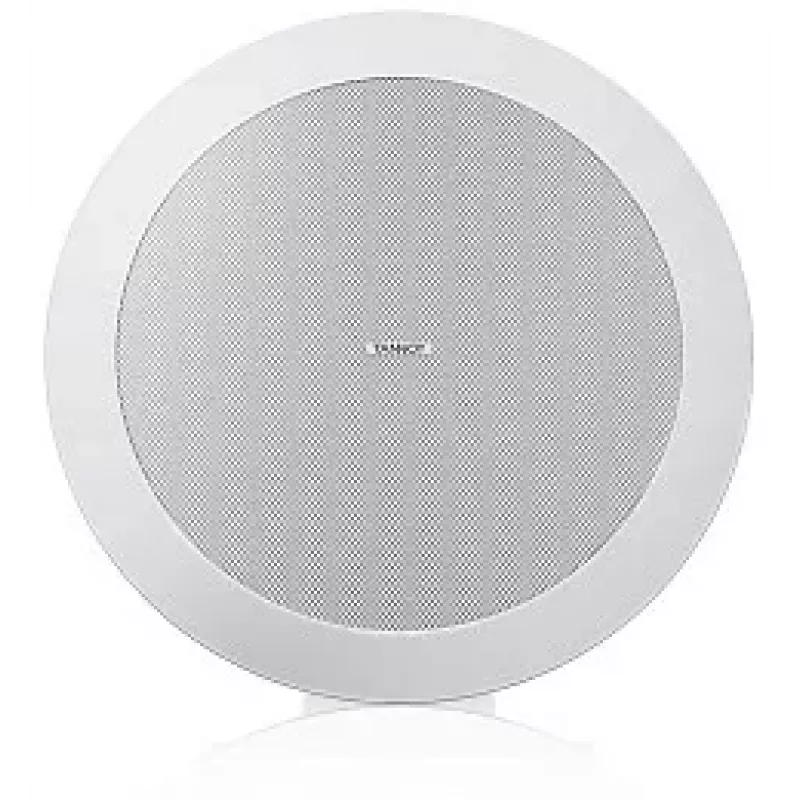

Tannoy CVS 4 MICRO diffusore da soffitto coassiale 4" con cassa posteriore per applicazioni installate

The Tannoy CVS 4 MICRO 4 is a high-performance coaxial ceiling loudspeaker designed for professional installation applications. Featuring a 4-inch polypropylene cone woofer and a 0.75-inch PEI dome tweeter, this speaker delivers clear and powerful audio with a frequency response of 100 Hz to 20 kHz. The integrated steel back can ensures easy installation and compliance with safety standards.

Advantages

Compact design with exceptional sound quality, easy 3-point self-aligning clamp mounting, and versatile transformer taps for 100V and 70V line systems. The paintable white grille blends seamlessly into any environment.

Suitable for

• Commercial installations such as offices, retail stores, and restaurants
• Background music and paging systems
• Ceiling-mounted audio in conference rooms and lobbies

Key specifications

• Speaker Type: Coaxial Ceiling Loudspeaker
• Low Frequency Driver: 4" (100 mm) Polypropylene Cone
• High Frequency Driver: 0.75" (19 mm) PEI Dome
• Frequency Response (-3dB): 100 Hz - 20 kHz
• Power Handling (Program): 40 W
• Nominal Impedance: 8 Ohms
• Transformer Taps (100V): 30 W, 15 W, 7.5 W, 3.75 W
• Sensitivity (1W/1m): 87 dB SPL
• Maximum SPL (Peak): 109 dB SPL
• Dispersion Angle: 90° Conical
• Cutout Diameter: 183 mm (7.20")
• Mounting Depth: 180 mm (7.09")
• Safety Agency Ratings: UL 1480, UL 2043, EN 54-24 Compliant

Recommendations

For optimal performance, pair with a compatible amplifier and ensure proper installation by a qualified professional. The speaker is suitable for both 70V and 100V distributed audio systems.
