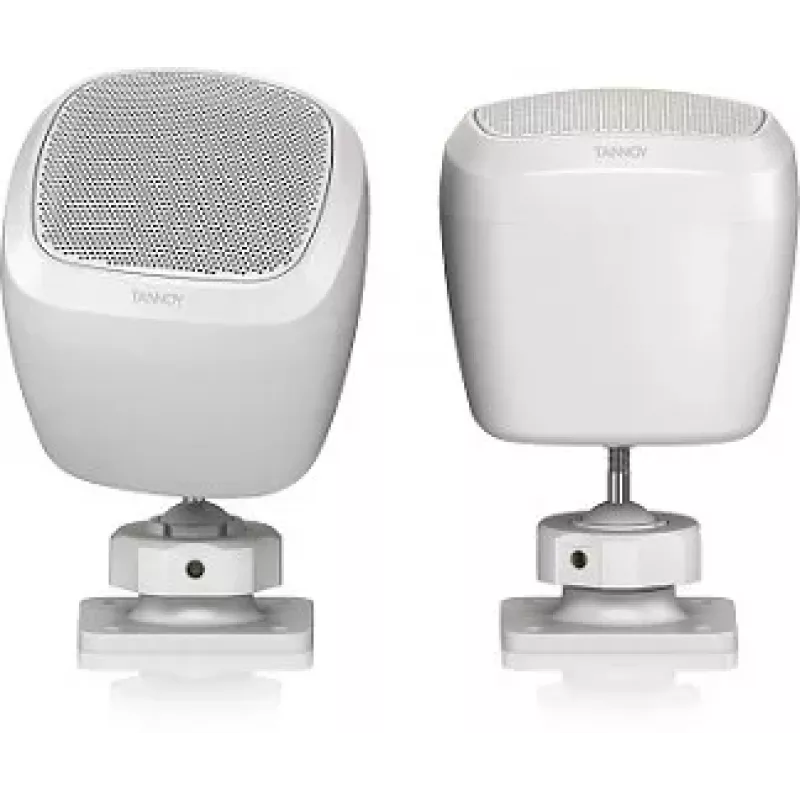

Tannoy SAT 3-WH diffusore satellitare da superficie (bianco)

The Tannoy SAT 3-WH is a high-performance surface mount satellite loudspeaker designed for commercial applications. Featuring a 2-way full-range system with a 3.5" paper cone woofer and a 0.75" titanium dome tweeter, it delivers clear and intelligible audio with a frequency response of 100 Hz to 20 kHz. The speaker is housed in a durable ABS plastic enclosure with a powder-coated perforated steel grille, finished in white to blend seamlessly into any environment.

Advantages

With a continuous power handling of 30 W RMS and peak power of 120 W, the SAT 3-WH provides ample volume for commercial spaces. Its 120° conical dispersion ensures wide coverage, while the integrated wall bracket simplifies installation. The Phoenix-style locking connector with screw terminals offers secure and reliable connections. Additionally, the built-in transformer supports 70V and 100V line systems with multiple tap settings (30 W, 15 W, 7.5 W, 3.75 W for 70V; 30 W, 15 W, 7.5 W for 100V), making it ideal for distributed audio systems.

Suitable for

• Commercial installations such as retail stores, restaurants, and offices
• Background music and paging systems
• 70V/100V distributed audio networks
• Surface mount applications where space is limited

Key specifications

• Speaker Type: Surface Mount Satellite Loudspeaker
• System Type: 2-way, Full Range
• Frequency Response (-3 dB): 100 Hz - 20 kHz
• Power Handling (Continuous): 30 W RMS
• Power Handling (Peak): 120 W Peak
• Nominal Impedance: 6 Ohms
• Sensitivity (1W/1m): 88 dB SPL
• Maximum SPL (Peak): 108 dB SPL
• Dispersion (H x V): 120° Conical
• Low Frequency Driver: 3.5" (89 mm) Paper Cone
• High Frequency Driver: 0.75" (19 mm) Titanium Dome Tweeter
• Crossover Frequency: 3.5 kHz
• Transformer Taps (70V): 30 W, 15 W, 7.5 W, 3.75 W
• Transformer Taps (100V): 30 W, 15 W, 7.5 W
• Enclosure Material: ABS Plastic
• Grille Material: Powder-coated Perforated Steel
• Color: White
• Mounting Options: Integrated Wall Bracket
• Connectors: Phoenix-style Locking Connector with Screw Terminals

Recommendations

For optimal performance, pair the SAT 3-WH with a compatible amplifier and ensure proper impedance matching. Ideal for use in multi-zone audio systems where reliability and sound quality are paramount.
