Techly ricevitore aggiuntivo per amplificatore / splitter HDMI Over IP IDATA EXTIP-373R

The Techly IDATA EXTIP-373R Additional Receiver HDMI Over IP is a compact receiver designed for distributed HDMI video systems. It supports a maximum resolution of 1920 x 1080 and receives HDMI signals over structured network cabling, using Cat5e or Cat6 cables to cover distances up to 120 metres. The unit features HDMI video I/O, low power consumption of 3 W at 5 V and a small enclosure measuring 57 mm × 106 mm × 26 mm, enabling discreet installation in AV racks, behind displays or in media boxes.

Advantages

The receiver provides reliable HDMI signal reception over IP-based extension systems and is suitable for deployments that require Full HD video distribution without the need for long HDMI runs. Its low power draw and compact footprint simplify integration into multi-display setups. Support for Cat5e and Cat6 cabling enables use with common structured cabling infrastructures while maintaining consistent video quality at distances up to 120 metres.

Suitable for

• Digital signage and multi-screen video walls
• Conference rooms and meeting spaces
• Classroom and lecture capture systems
• Retail displays and point-of-sale screens
• Home theatre or media room installations requiring distributed sources

Key specifications

• Maximum supported resolution: 1920 x 1080 (Full HD)
• Cable transmission medium: Cat5e, Cat6

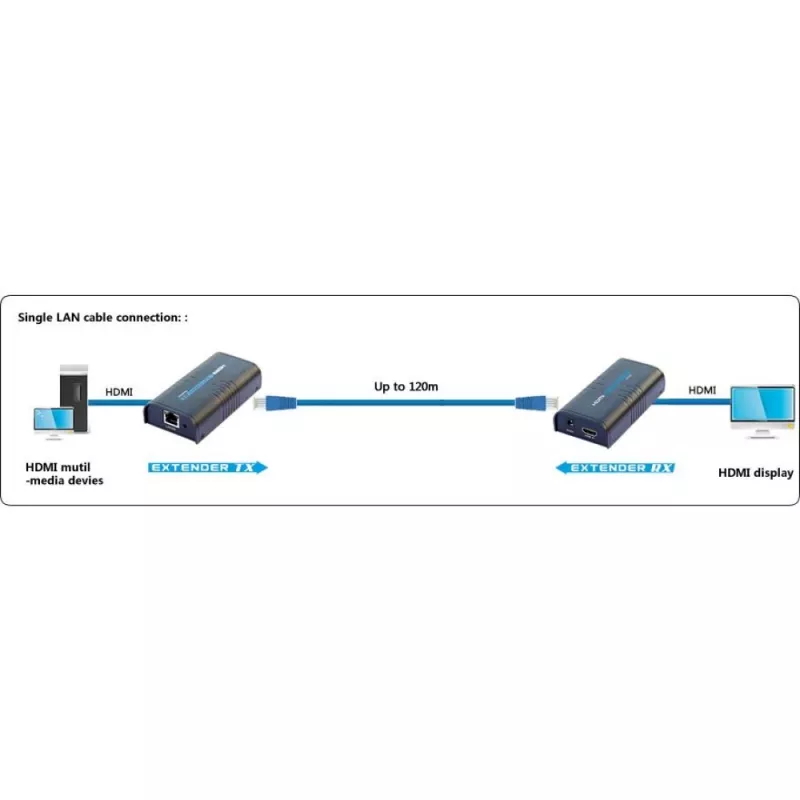

• Maximum transmission distance over cable: up to 120 metres
• Video ports: HDMI input/output for receiving decoded HDMI streams
• Power consumption: 3 W at 5 V
• Colour: Black
• Weight: 0.342 kg
• Dimensions (W × D × H): 57 mm × 106 mm × 26 mm

How to use

Install the receiver near the display to be driven and connect an HDMI cable from the receiver’s HDMI output to the display’s HDMI input. Use Cat5e or Cat6 cabling to connect the receiver to the corresponding HDMI Over IP transmitter or network switch configured for the Techly EXTIP system, observing a maximum run length of 120 metres. Provide power to the unit with a 5 V supply rated to deliver the device’s power consumption. After physical connections are made, verify signal lock and configure any required IP or EDID settings through the central transmitter or management interface according to the system documentation.

Recommendations

For reliable performance, use high-quality Cat5e or Cat6 cables and certified HDMI leads. Keep cable runs within the 120 metre limit and avoid routing near strong electromagnetic sources. Ensure the transmitter and receiver firmware are up to date and verify EDID settings when connecting displays with specific resolution or audio requirements.
