Techly supporto a parete per LCD LED 19-37'' inclinabile 1 snodo bianco ICA-LCD 2900WH

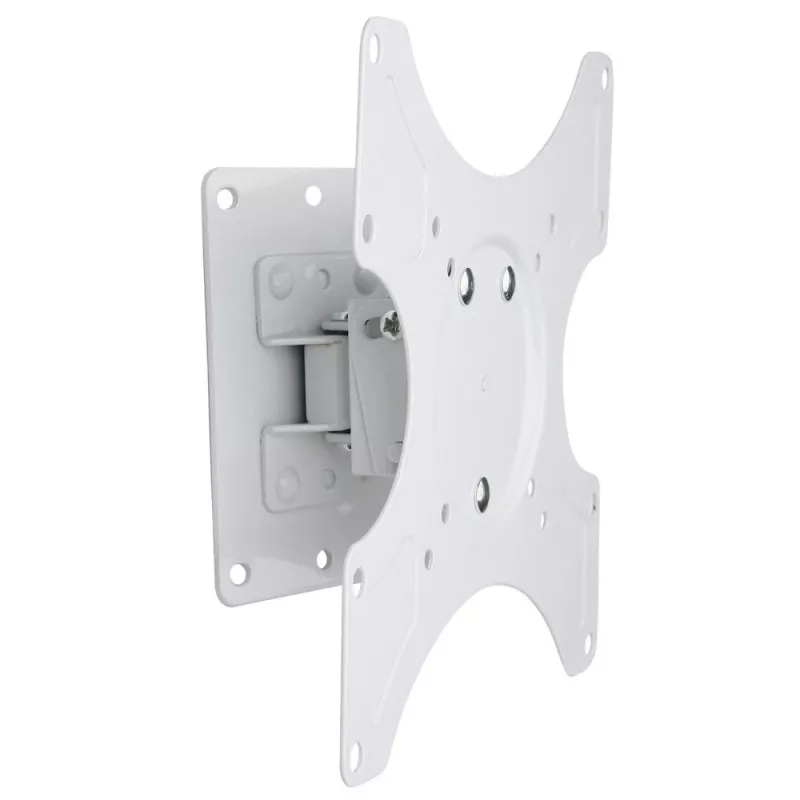

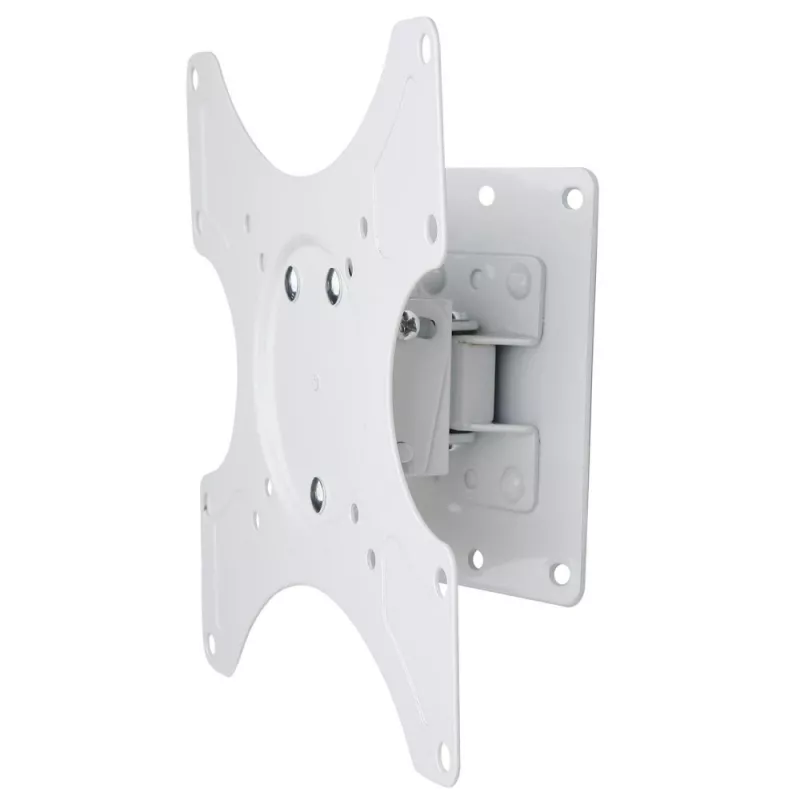

Universal bracket for fixing a LED/LCD monitor or small TV on the wall. The Techly ICA-LCD-2900WH supports screens from 19" to 37" and accommodates VESA patterns from 75x75 mm up to 200x200 mm. It is finished in white and designed to keep the display close to the wall while allowing light tilt and swivel adjustment.

Advantages

The mount supports up to 25 kg and fits common VESA standards (75x75, 100x100, 200x100, 200x200), offering compatibility with a wide range of LED and LCD displays. Its single-joint arm provides a compact adjustable solution with a minimum wall clearance of 63.5 mm and a lightweight construction of 0.8 kg for easier handling during installation.

Suitable for

• Home TV or monitor mounting (19"–37")
• Office workstations and meeting rooms
• Small commercial displays in shops or reception areas

Key specifications

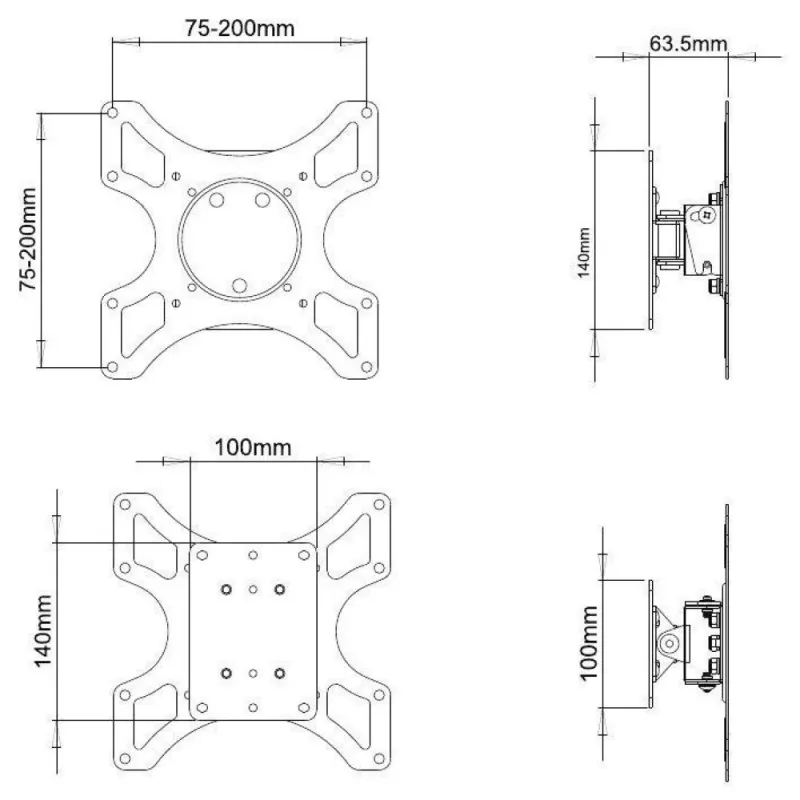

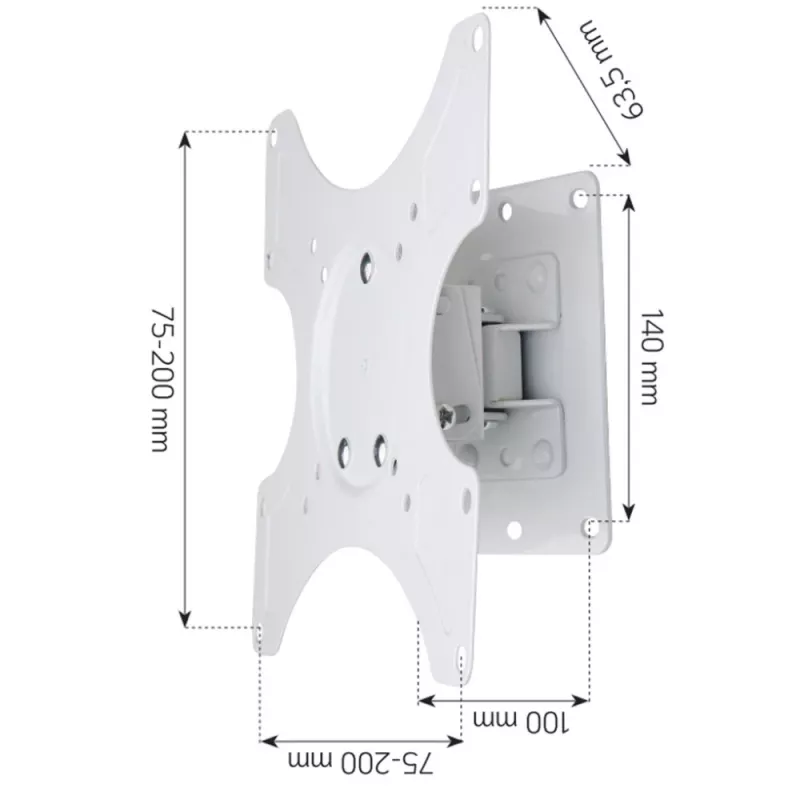

• VESA compatibility: 75x75, 100x100, 200x100, 200x200 mm
• Maximum supported weight: 25 kg

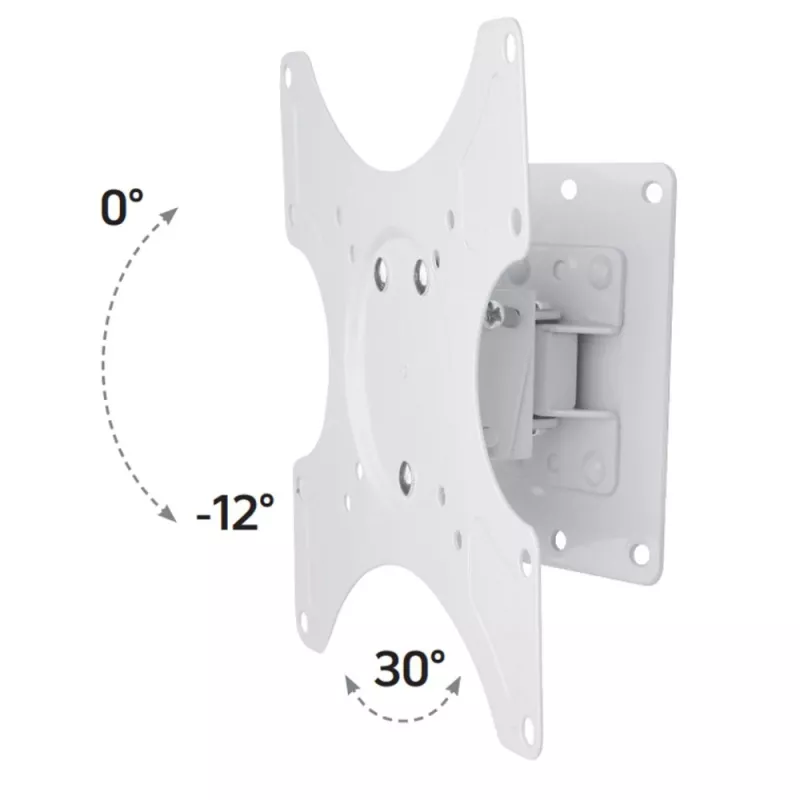

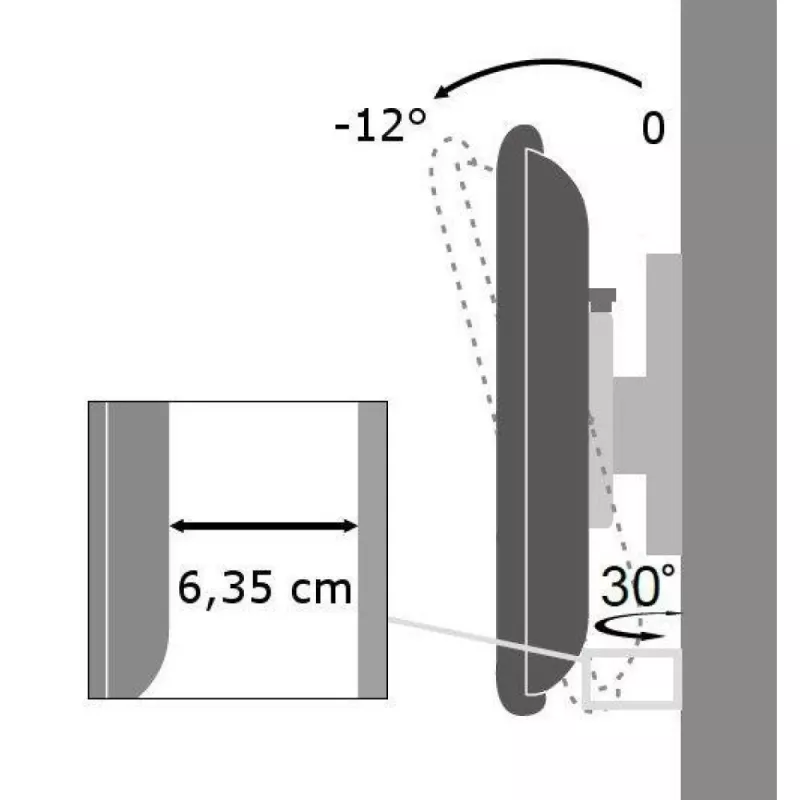

• Tilt range: 0 to -12°
• Horizontal swivel: ±30°
• Minimum distance from wall: 63.5 mm
• Wall plate dimensions: 100 x 140 mm
• Product weight: 0.8 kg
• Colour: White

How to use

Attach the wall plate to a suitable solid surface using the included screws and plugs, following the supplied installation instructions. Fix the bracket arm to the wall plate, then mount the display to the bracket using screws that match the display's VESA pattern. Adjust tilt and horizontal angle to the desired viewing position and ensure all fasteners are securely tightened.

Recommendations

Verify the display weight and VESA pattern before installation. Use appropriate wall fixings for the wall material (solid wall, drywall with anchors, etc.). Do not exceed the maximum load of 25 kg and periodically check mounting screws for tightness.
