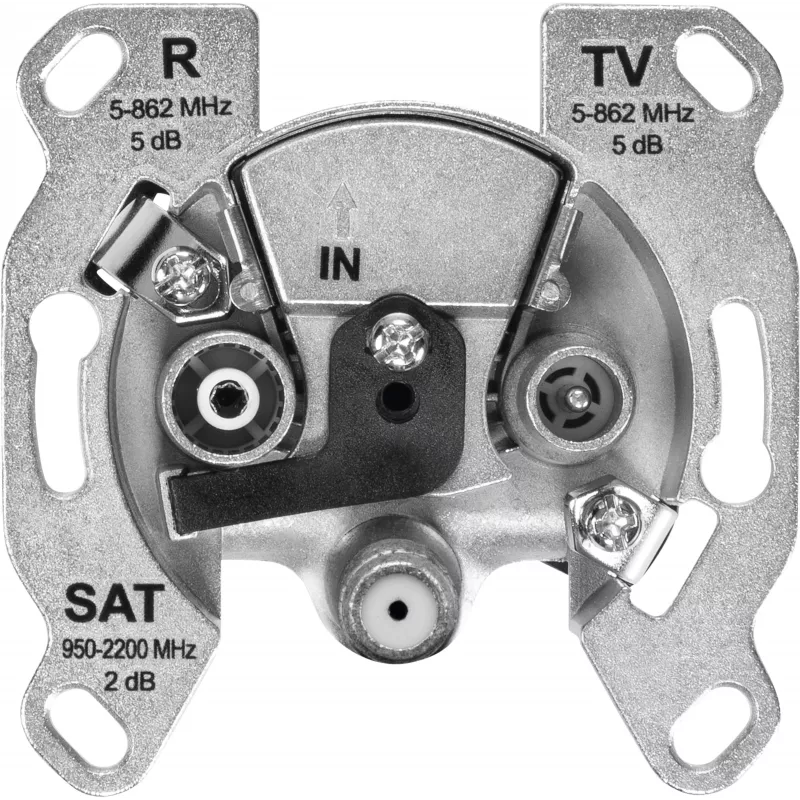

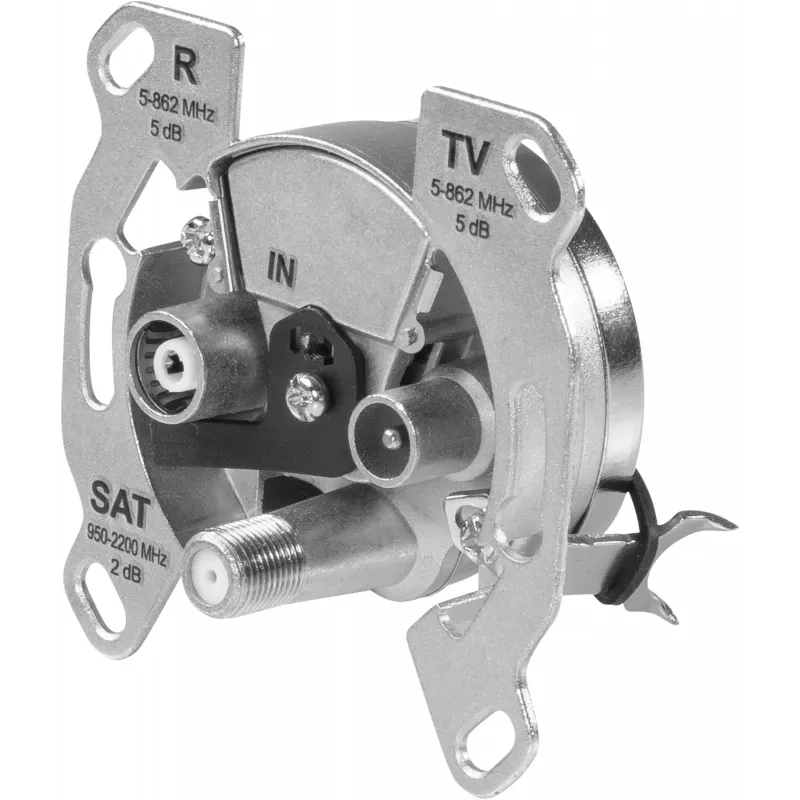

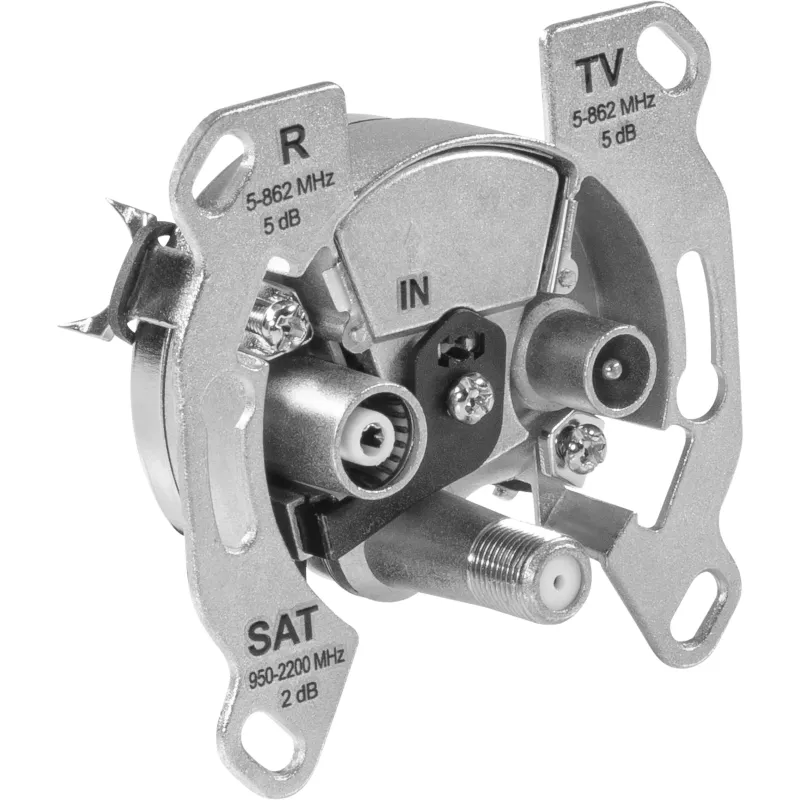

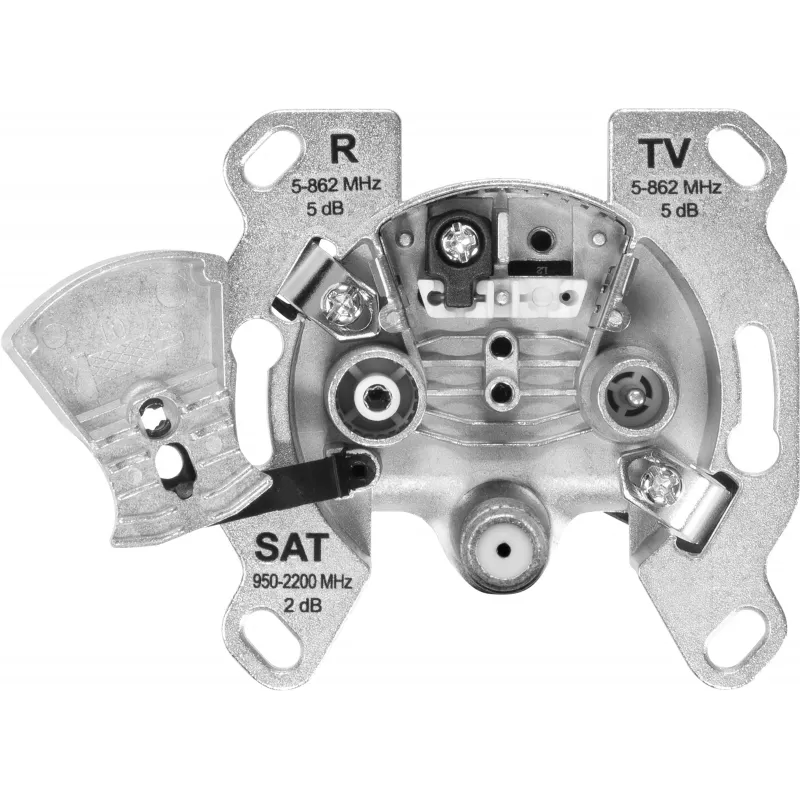

TechniSat TECHNIPRO SV600 V2 presa a muro per antenna a 3 fori con disaccoppiamento a diodi DC (TV, radio, SAT) 0004/3075

With a wide frequency range of 5–862 MHz for TV/radio and 950–2400 MHz for SAT, this TechniSat antenna socket handles terrestrial and satellite signals with equal confidence. The 3-hole design provides separate TV, radio, and SAT connections, while diode decoupling prevents DC interference between lines.

Overview

The TECHNIPRO SV600 V2 is a flush-mounted antenna wall socket for single, star, and tree distribution systems. It offers 10 dB output attenuation on all three connections and 2.5 dB loop-through attenuation, ensuring stable signal levels in multi-room setups. Class A shielding and 75 Ohm impedance maintain signal integrity across the entire spectrum.

What stands out

• DC diode decoupling blocks unwanted DC voltage between SAT and terrestrial lines
• Return channel capable for interactive services
• IEC male TV, IEC female radio, and F-type SAT connections
• Flush-mounted design fits standard wall boxes

Technical details

• Frequency range TV/radio: 5–862 MHz
• Frequency range SAT: 950–2400 MHz
• Output attenuation: 10 dB (TV, radio, SAT)
• Loop-through attenuation: 2.5 dB (TV/radio, SAT)
• Shielding class: A
• Impedance: 75 Ohm
• Mounting type: Flush-mounted
• Distribution compatibility: Single, star, tree

Our verdict

A reliable, diode-decoupled antenna socket for balanced signal distribution in modern home installations.
