Hypertec 258151-HY patch panel 1U

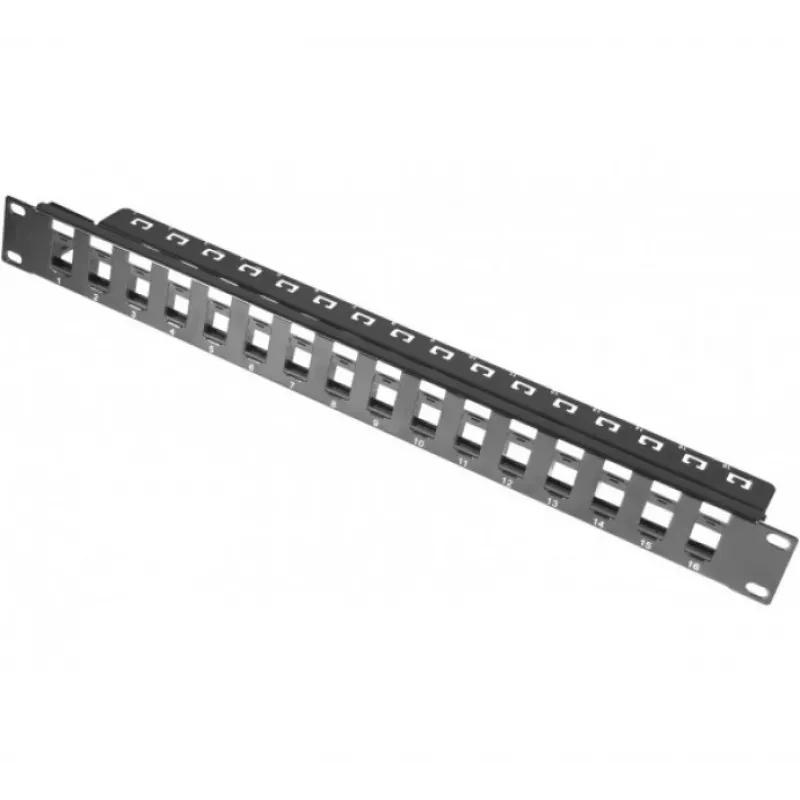

The Tecline 258151 is a 1U patch panel designed for orderly cable termination and distribution inside standard 19-inch server racks. Finished in black, the unit provides a compact and durable mounting point for network cabling, helping to centralize connections and reduce cable clutter. Its 1U height preserves rack space while supporting common copper and fiber connector modules depending on installation choices, making it suitable for structured cabling in small server rooms, wiring closets, or home labs.

Advantages

The patch panel offers a space-saving 1U footprint, a robust metal chassis with a black finish for corrosion resistance and professional appearance, and standardized rack-mount dimensions for straightforward installation. By providing a dedicated termination surface it improves cable organization and simplifies troubleshooting and maintenance. The panel’s construction supports a range of connector and cable types, allowing flexible adaptation to different networking requirements.

Key specifications

How to use

Install the patch panel in a standard 19-inch rack using the front mounting holes and appropriate rack screws. Terminate incoming and outgoing cables to the panel according to the chosen connector type or keystone modules, following color codes and wiring standards applicable to your network (for example T568A/B for twisted pair). Label ports as required to maintain clear identification of connections. After termination, route cables with appropriate cable management accessories to avoid sharp bends and reduce strain on cable terminations.

Recommendations

For reliable performance, match the patch panel with compatible keystone modules and quality cabling, keep cable bends within recommended radius limits, and secure cabling with strain relief and horizontal managers. Regularly verify port labeling and connection integrity during maintenance to ensure efficient troubleshooting and minimal downtime.
