Equip 326623 Patch Panel 1U

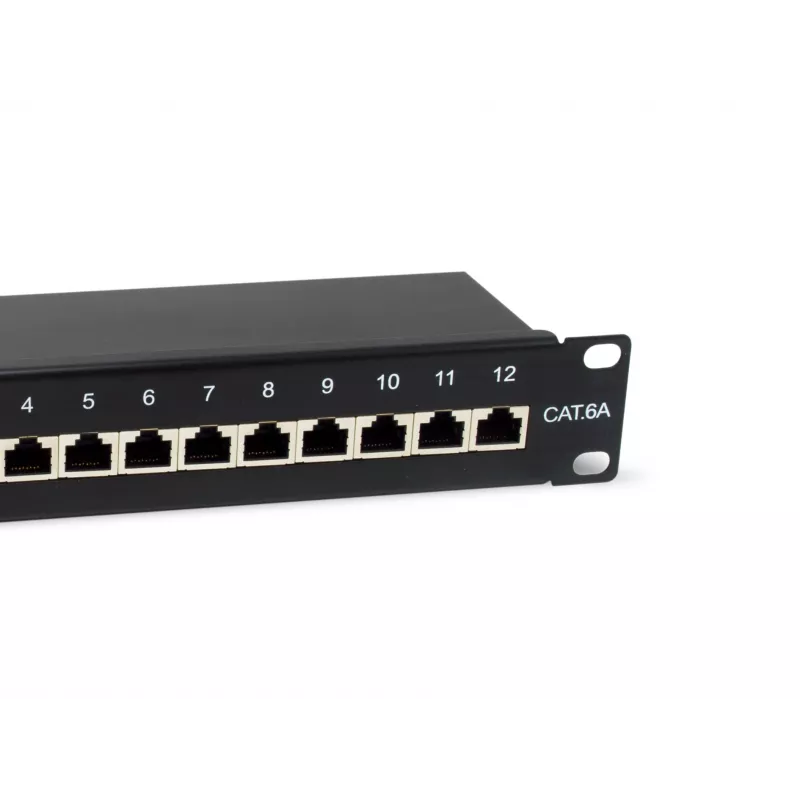

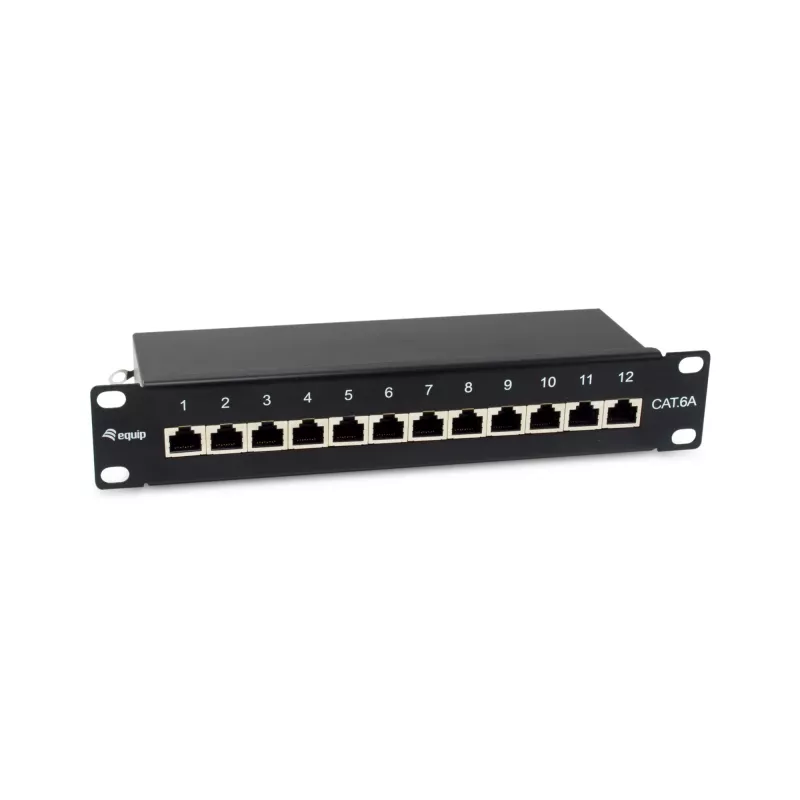

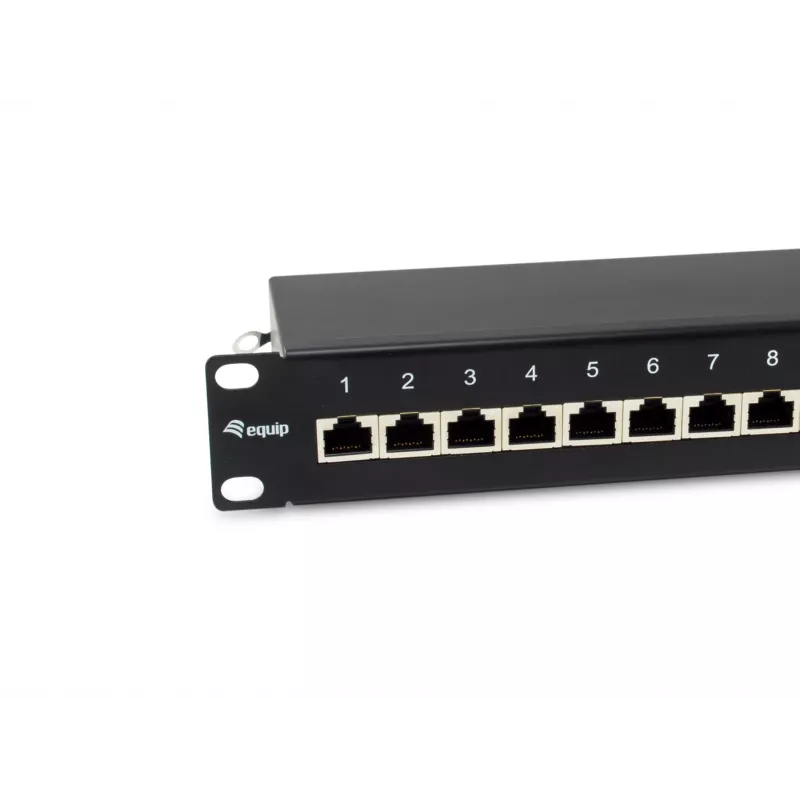

The Equip 326623 Patch Panel 1U is a rack-mounted cabling component designed for 10GBase-T Ethernet networks. Manufactured by EQUIP, this 1U metal patch panel supports up to 10,000 Mbit/s data transfer rates and provides 12 ports in a compact 254 mm × 109.3 mm × 44.3 mm housing with a black finish. The unit is CE and RoHS compliant and is intended to deliver organized, reliable connections in server rooms, network racks and data centers.

Advantages

The metal construction offers mechanical strength and long-term durability while the 1U form factor conserves rack space. Support for 10GBase-T ensures compatibility with high-speed Ethernet equipment. The black finish and compact dimensions simplify installation and cable management in standard 19-inch racks. Certification to CE and RoHS indicates conformity with relevant safety and environmental requirements.

Suitable for

• 10GBase-T Ethernet cabling in server rooms
• Structured cabling panels in data centers
• Network racks requiring a compact 1U patch panel
• Applications needing 12-port consolidation and organized connectivity

Key specifications

• Model: Equip 326623
• Form factor: 1U rack-mounted
• Ports quantity: 12
• Maximum data rate: 10,000 Mbit/s (10GBase-T)
• Material: Metal
• Product colour: Black
• Dimensions (W×H×D): 254 mm × 109.3 mm × 44.3 mm
• Weight: 0.89 kg
• Standards: CE, RoHS
• Brand: EQUIP
• MPN: 326623
• EAN: 4015867237571

How to use

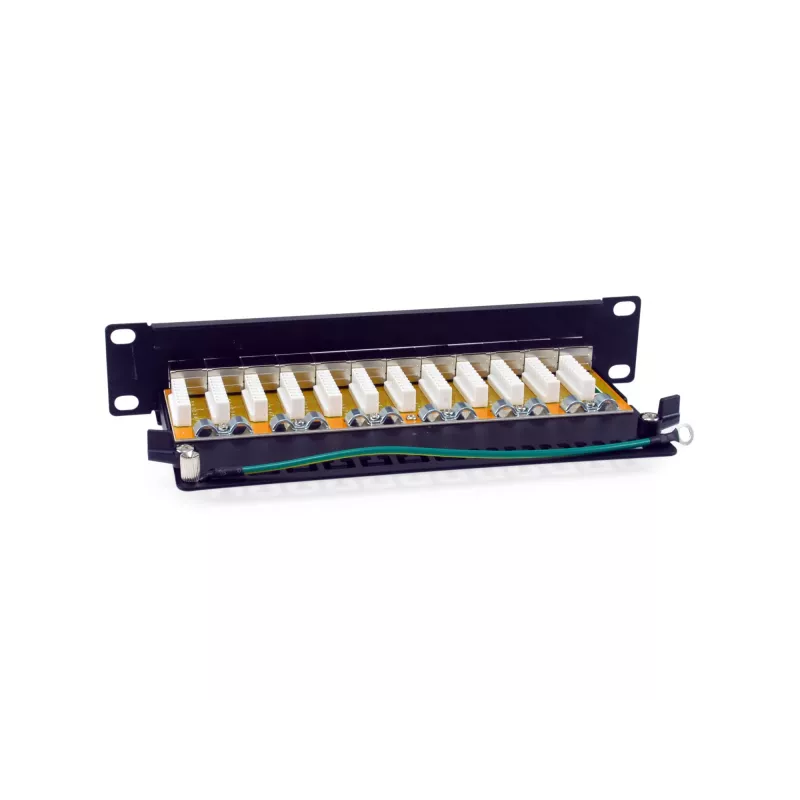

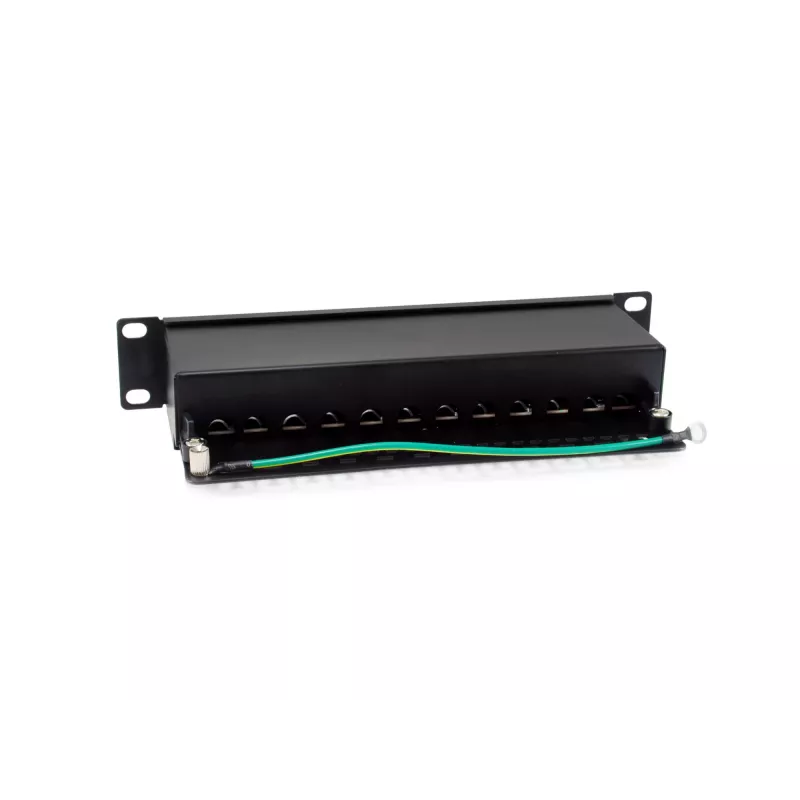

Mount the 1U patch panel into a standard 19-inch rack using appropriate rack screws. Terminate the incoming horizontal cabling to the rear connection points according to your cabling standard (for example, T568A/T568B) and secure the cables to maintain bend radius and strain relief. Connect network devices to the front ports with compatible RJ45 patch cables. Verify link and speed using network test tools or managed switches configured for 10GBase-T operation.

Recommendations

For best performance, use Category 6A or higher cabling for 10GBase-T links and maintain recommended cable distances and bend radii. Label ports clearly for future maintenance and keep patch cords organized with cable management accessories to reduce signal interference and simplify troubleshooting.
