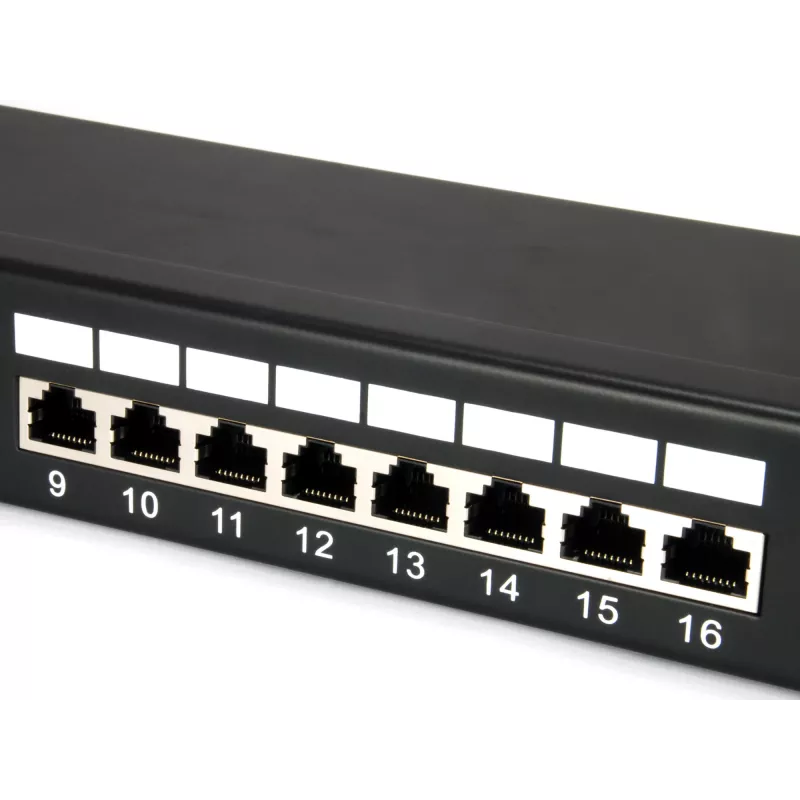

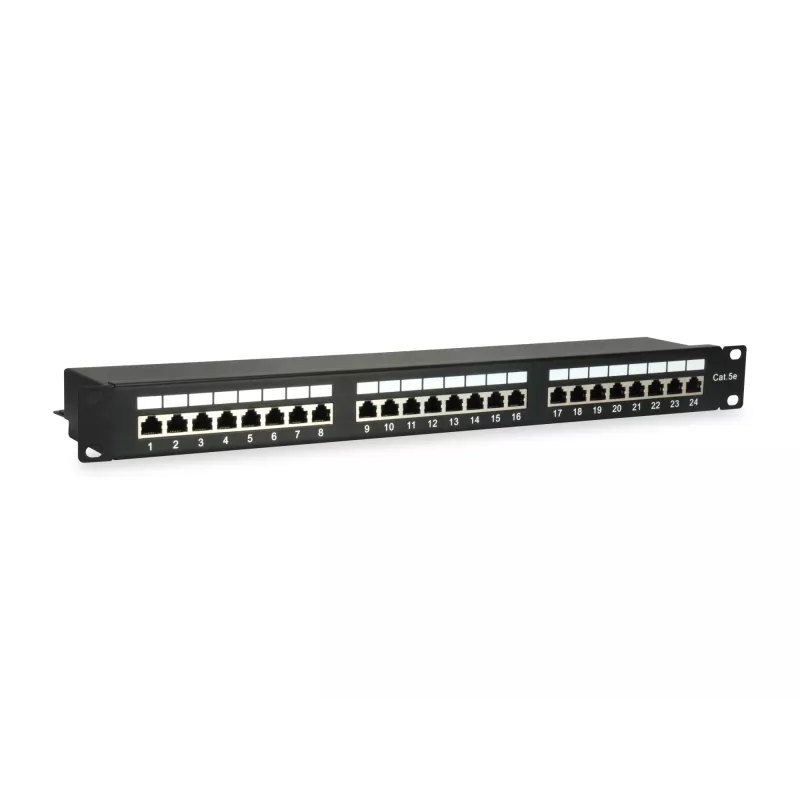

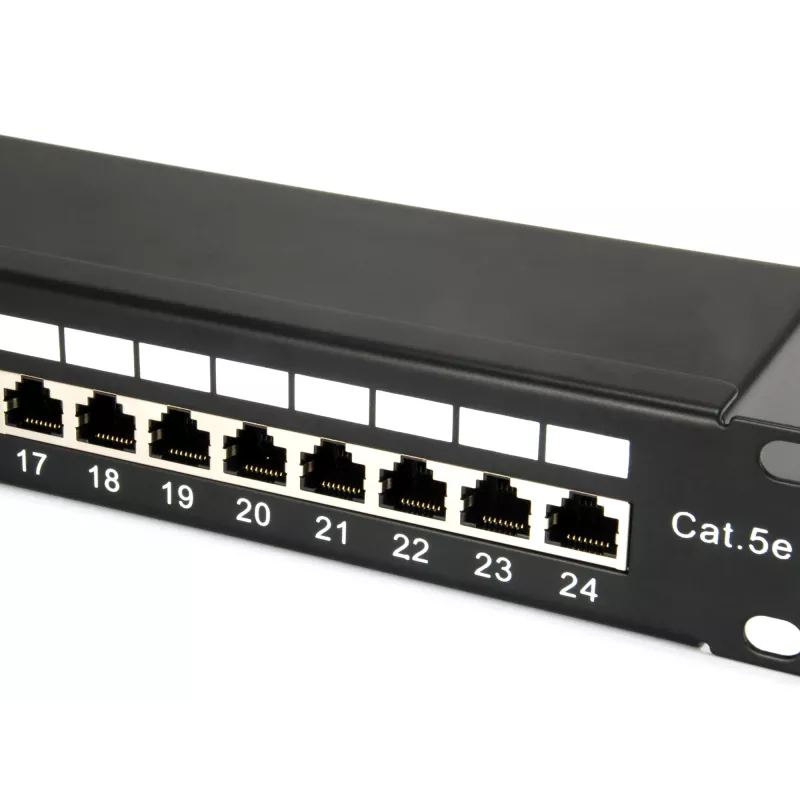

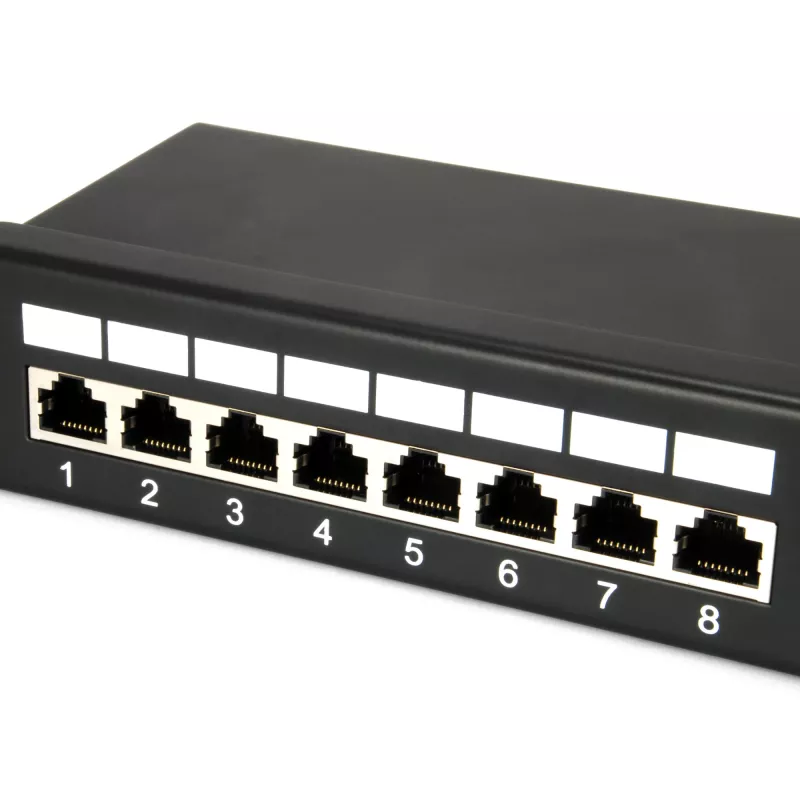

Equip Patch Panel 24 porte Cat.5e schermato, nero

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized cable routing and strain relief. It supports both LSA and 110 termination standards and provides 24 shielded RJ45 ports with individual port numbering. The panel is intended for use with Cat5e cabling and fits standard 19" racks with a compact 1U height.

Advantages

This 24-port shielded patch panel offers a compact 1U rack footprint, clear port numbering for easy identification, and compatibility with both LSA and 110 termination methods. The shielded RJ45 ports help maintain signal integrity when used with shielded cabling and accessories. Its black finish and standard dimensions make it suitable for typical rack installations.

Suitable for

• Structured Cat5e network installations
• Server rooms and communication cabinets
• Connections requiring shielded cabling
• Horizontal and vertical patching in 19" racks

Key specifications

• Brand: EQUIP
• Model / MPN: 327425
• EAN: 4015867207451
• Ports: 24 shielded RJ45
• Category: Cat.5e
• Rack units: 1U (19")
• Dimensions (W×H×D): 482.6 × 44.5 × 110.5 mm
• Colour: Black
• Weight: 1.5 kg

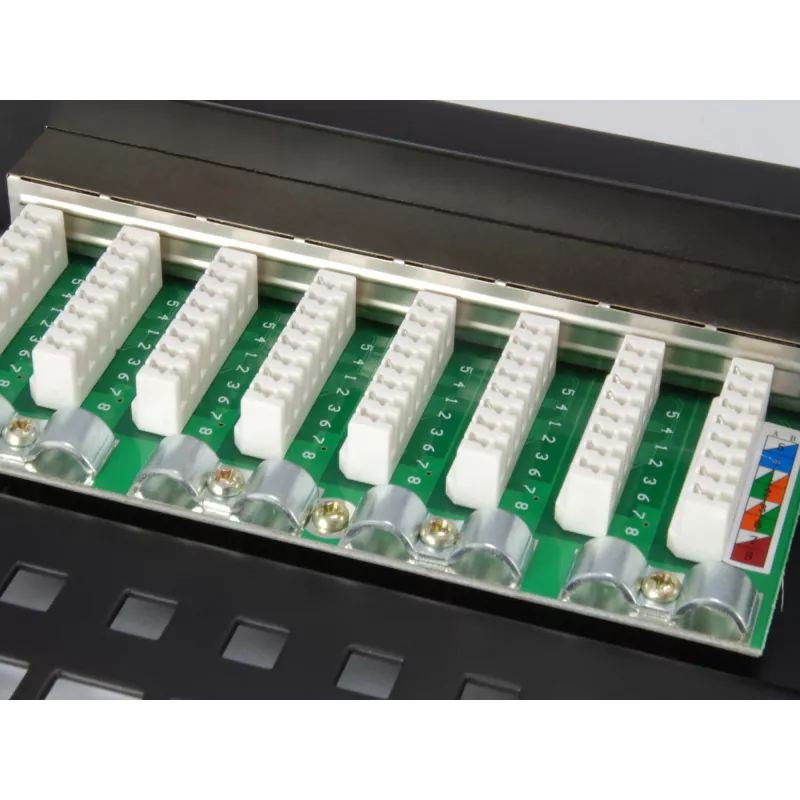

• Termination standards: LSA and 110

How to use

Mount the patch panel in a standard 19" rack occupying 1U of height. Terminate Cat5e shielded cables using the preferred LSA or 110 method, ensuring proper shielding continuity and strain relief. Connect shielded patch cords to the RJ45 ports to link equipment and network switches. Use the numbered port labels to map and document connections for easier maintenance.

Recommendations

For optimal performance, pair the patch panel with equip® shielded patch cords and maintain proper cable management to preserve shielding and minimize interference. Follow structured cabling best practices when terminating and routing cables.
