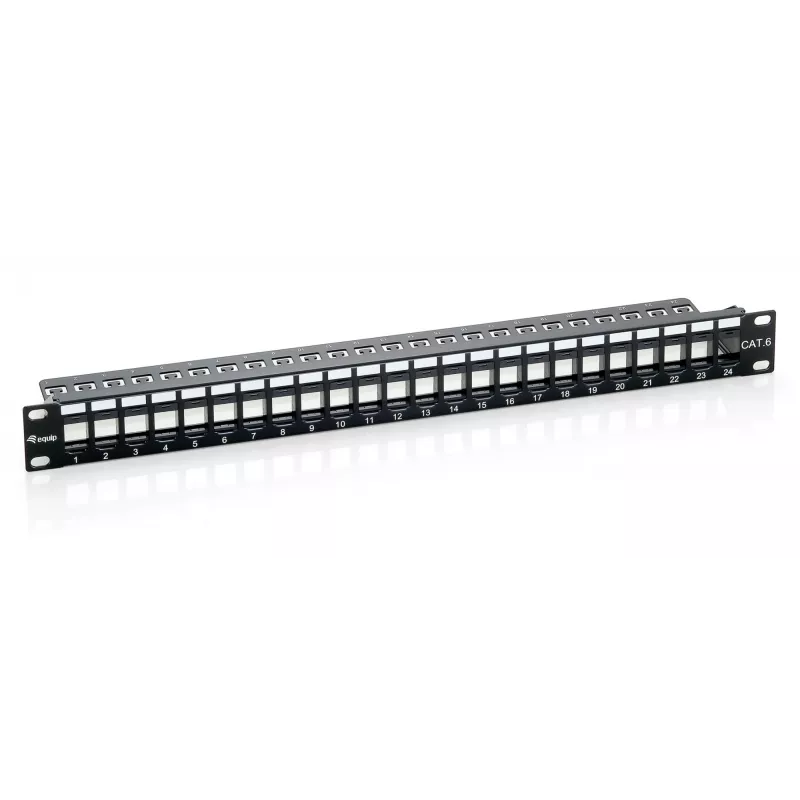

Patch panel Keystone 24 porte Cat.6 non schermato Equip, nero

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized cable routing and strain relief. It supports both LSA and 110 termination standards and provides 24 labelled ports for easy identification. This unshielded Cat.6 keystone patch panel is intended to be used with equip® unshielded keystone jacks and compatible Cat6 cables and fits standard 19" racks with a compact 1U height.

Advantages

The patch panel offers a compact 1U rack design with clear port numbering to simplify installation and maintenance. Its integrated cable management supports neat cable routing and strain relief, while compatibility with both LSA and 110 termination methods provides flexibility for different wiring practices. The black finish ensures a discreet, professional appearance in equipment racks.

Suitable for

• Structured network cabling in offices and small data rooms
• Connecting Cat6 horizontal cabling to keystone jacks
• Rack-mounted network equipment in server cabinets

Key specifications

• Brand: EQUIP
• Model / MPN: 769224
• EAN: 4015867138939
• Ports: 24 keystone ports
• Category: Cat.6 (unshielded)
• Mounting: 19" rack, 1U
• Dimensions (W×H×D): 483 mm × 44 mm × 92.7 mm
• Weight: 0.7 kg
• Colour: Black

How to use

Mount the patch panel into a standard 19" rack using the front mounting holes and appropriate screws. Terminate Cat6 cables to keystone jacks using either LSA or 110 termination tools, then insert the keystone jacks into the panel's ports. Label or verify port numbers as needed and route cables through the integrated cable management features to provide strain relief and maintain an organized rack layout.

Recommendations

Use equip® unshielded Cat6 keystone jacks and matching Cat6 cables for best compatibility. Perform terminations with the correct LSA or 110 punch-down tool and test each link with a cable tester after installation to ensure compliance with Cat6 performance.
