Tecline Pigtail in fibra ottica OS2 LC/UPC, 2,0 m, confezione da 12, multicolore 20500019

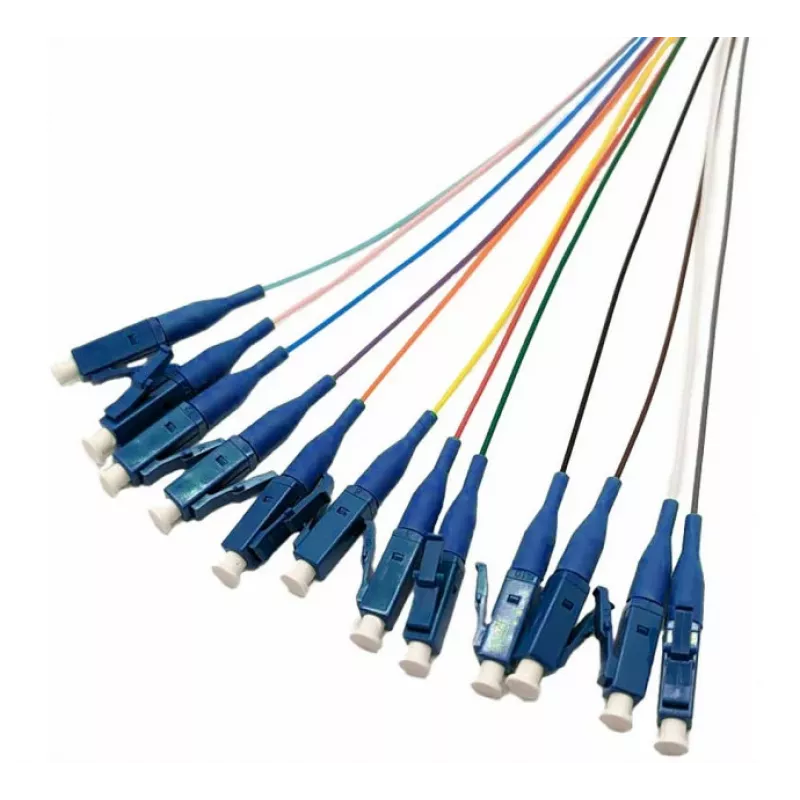

Network technicians terminating single-mode fiber in patch panels or ODFs will appreciate this 12-pack of Tecline OS2 pigtails. Each pigtail has an LC/UPC connector on one end and a 0.9 mm multi-colored LSZH jacket for easy fiber identification during splicing.

Key specifications

• Fiber type: OS2 single-mode (G.657.A1/A2 compatible)
• Connector: LC/UPC
• Length: 2.0 m per pigtail
• Quantity: 12 pigtails
• Jacket: LSZH, multi-colored, 0.9 mm diameter
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Minimum bend radius: 10 mm
• Operating temperature: -20 °C to +70 °C

Why choose it

These pigtails are pre-terminated with LC/UPC connectors, saving time and ensuring consistent low-loss performance. The LSZH jacket reduces toxic smoke in case of fire, and the multi-colored jackets simplify fiber management in dense installations.

Ideal use cases

• Splicing in fiber distribution frames (ODFs)
• Terminating backbone cabling in data centers
• Patch panel assembly for enterprise networks

Good to know

The pigtails are compatible with standard fusion splicing equipment and meet TIA/EIA-568-C.3 requirements for single-mode fiber cabling.
