Telaio portatarghetta patch panel Corning 79156-501 00 per moduli LSA+ (compatibile con montaggio LSA Plus)

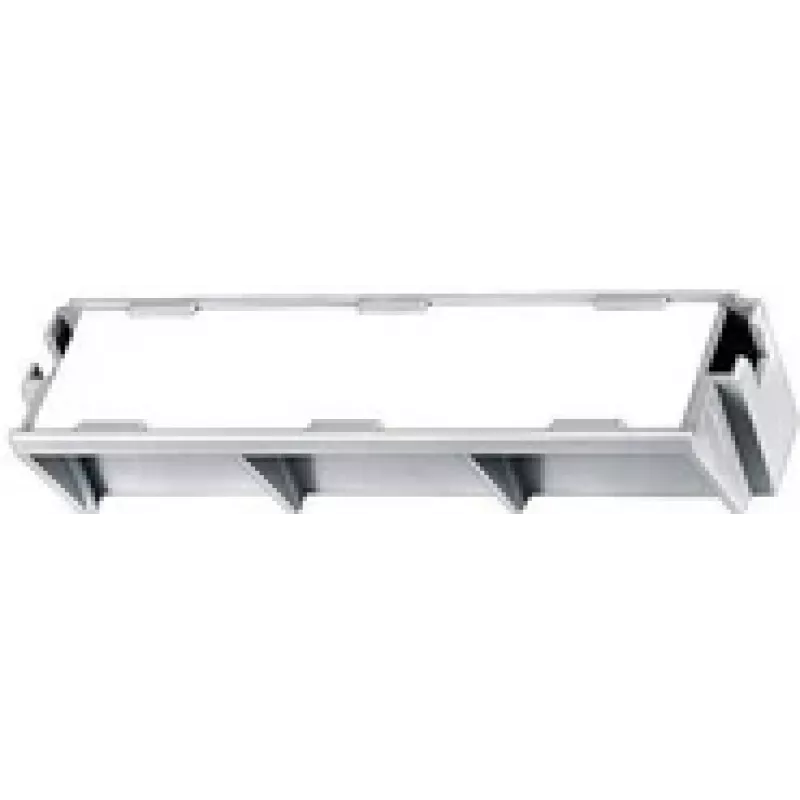

Corning 79156-501 00 is a plug-in label frame intended for use with LSA+ telecommunication modules. Designed to fit into LSA Plus compatible mounting systems on patch panels and distribution frames, this label frame creates a clear, durable surface for port identification and supports organized cabling in structured network installations. The frame is compatible with common LSA+ module dimensions and provides a straightforward way to mark connections without altering the panel or module hardware.

Advantages

The plug-in design allows quick installation and removal without tools, making the frame suitable for maintenance and re-labeling. Its surface accepts printed or handwritten labels and keeps marking visible at rack or bench height. The frame is made to align precisely with LSA+ modules, which reduces misalignment and ensures consistent labeling across multiple panels. It contributes to improved cable management and faster identification of circuits during commissioning and troubleshooting.

Suitable for

• Labeling ports on patch panels with LSA+ compatible modules
• Structured cabling installations in telecom and data closets
• Distribution frames where modular identification is required
• Maintenance tasks that require rapid re-labeling or replacement

Key specifications

• Form factor: plug-in label frame designed for LSA+ module mounting
• Compatibility: fits LSA Plus compatible mounting systems and modules
• Label surface: flat area for printed or handwritten identification
• Installation: tool-free insertion and removal into module slots
• Intended use environment: patch panels, distribution frames, telecom racks

How to use

Insert the label frame into the designated slot on the patch panel or distribution frame where LSA+ modules are mounted. Ensure the frame aligns with adjacent modules and fully seats into the mounting groove until it locks or sits flush. Apply a printed label or write directly on the frame's surface using a suitable marker. To replace or remove the frame, pull it straight out from the slot, taking care not to disturb adjacent modules or cabling.

Recommendations

For durable results, use a high-contrast printed label or permanent marker rated for plastic surfaces. Verify compatibility with the specific LSA+ modules in your panel before installation to ensure correct fit and alignment. Keep spare frames available for quick replacement during maintenance to maintain consistent labeling across the installation.
