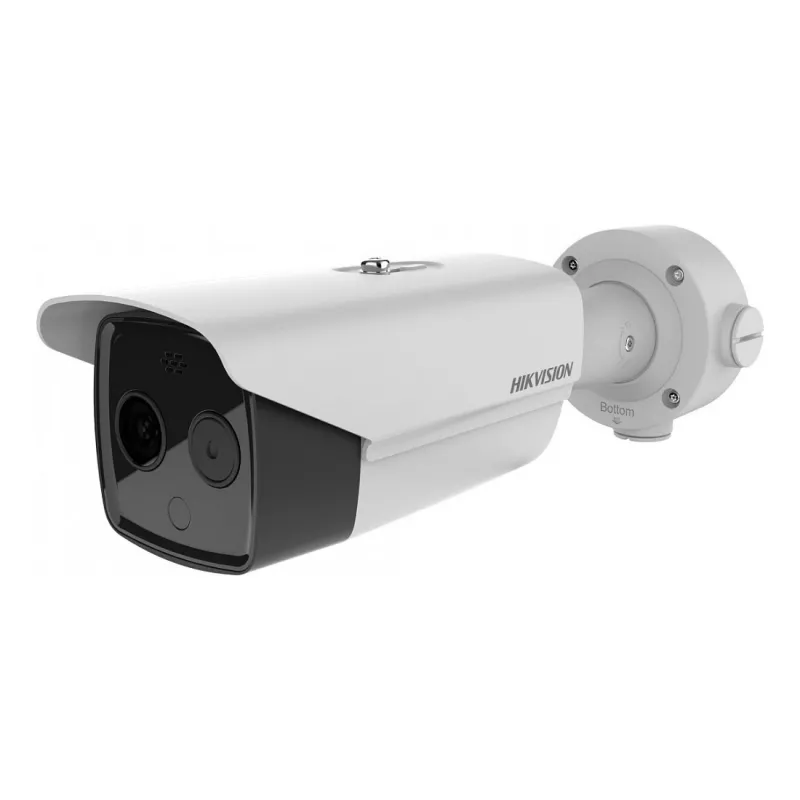

Hikvision DS-2TD2617B-3/PA(B) Telecamera bullet termica Bi-Spectrum, 160x120

The Hikvision DS-2TD2617B-3/PA(B) is a thermal bi-spectrum bullet camera designed for indoor and outdoor use. It features a 4 MP CMOS sensor and a fixed 8 mm lens, delivering a maximum resolution of 2688 x 1520 pixels.

Key features

• IP security camera
• Indoor & outdoor
• Wired
• Ceiling/wall mounting
• Bullet form factor
• White
• Wide Dynamic Range (WDR)
• Day/night mode
• Alarm input/output
• 32 languages supported
• IP66
• Night vision
• IR LED
• Video streaming
• Noise reduction
• 3D noise reduction
• Ethernet/LAN
• Quality of Service (QoS) support
• Built-in card reader
• Microphone input
• DC connection
• IP address filtering
• HTTPS encryption
• Web browser
• Reset button

Specifications

• Brand: Hikvision
• MPN: DS-2TD2617B-3/PA(B)
• Minimum illumination: 0.0018 lux
• Horizontal viewing angle: 39.42°
• Vertical viewing angle: 22.14°
• Sensor type: CMOS
• Image sensor size: 25.4 / 2.7 mm (1/2.7")
• Effective pixels (H x V): 2688 x 1520
• Fixed focal length: 8 mm
• Maximum aperture: 1.1
• Night vision distance: 40 m
• Maximum resolution: 2688 x 1520 pixels
• Total megapixels: 4 MP
• Video compression formats: H.264, H.265, MPEG
• Supported graphics resolutions: 176 x 144, 320 x 240, 352 x 288, 384 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
• Supported video modes: 240p, 360p, 480p, 540p, 576p, 720p, 768p, 1080p, 1440p, 1520p
• Up to 30 frames per second: 30 fps
• Audio input channels: 1.0 channels
• Supported audio formats: G.711, G.711 A-law, G.711 μ-law, G.726, MP2L2, PCM
• Ethernet interface type: Fast Ethernet
• Network standard: IEEE 802.1x, IEEE 802.3af
• Supported network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Number of users: 32 users
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
• Max. memory card size: 128 GB
• Number of Ethernet LAN ports (RJ-45): 1
• RS-485 ports: 1
• Power source: DC, PoE
• Power consumption (max.): 7.5 W
• Power consumption (Power over Ethernet (PoE)): 8 W
• DC output volts: 12
• Operating temperature: 10 - 35 °C
• Relative humidity in operation: 0 - 95%
• Width: 113.5 mm
• Height: 115.2 mm
• Length: 358.3 mm
• Weight: 1.76 kg
• Packaging type: Box
• Number of cameras: 1
• Cables included: LAN (RJ-45)
