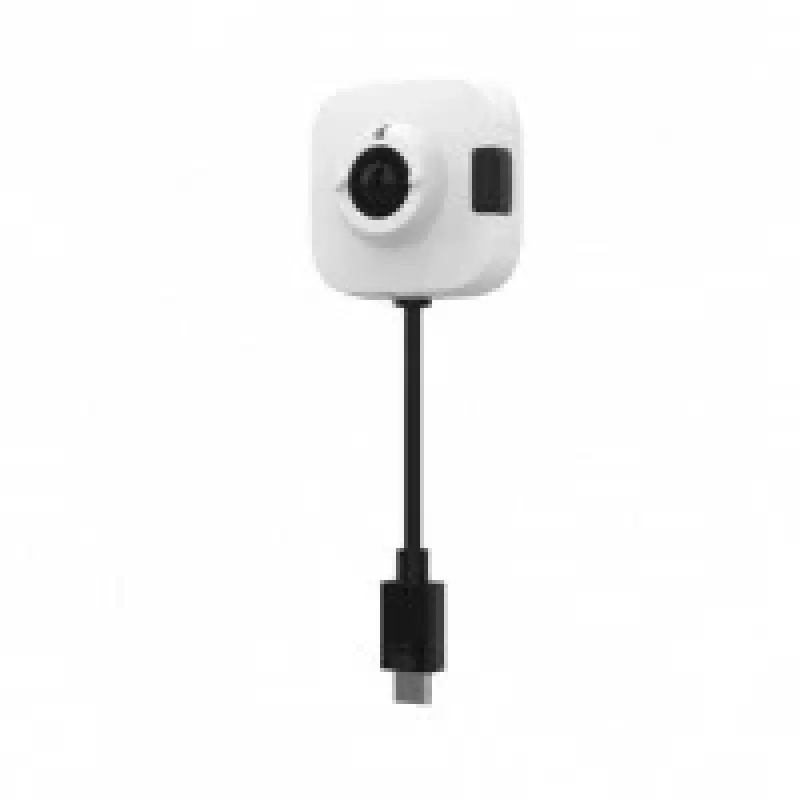

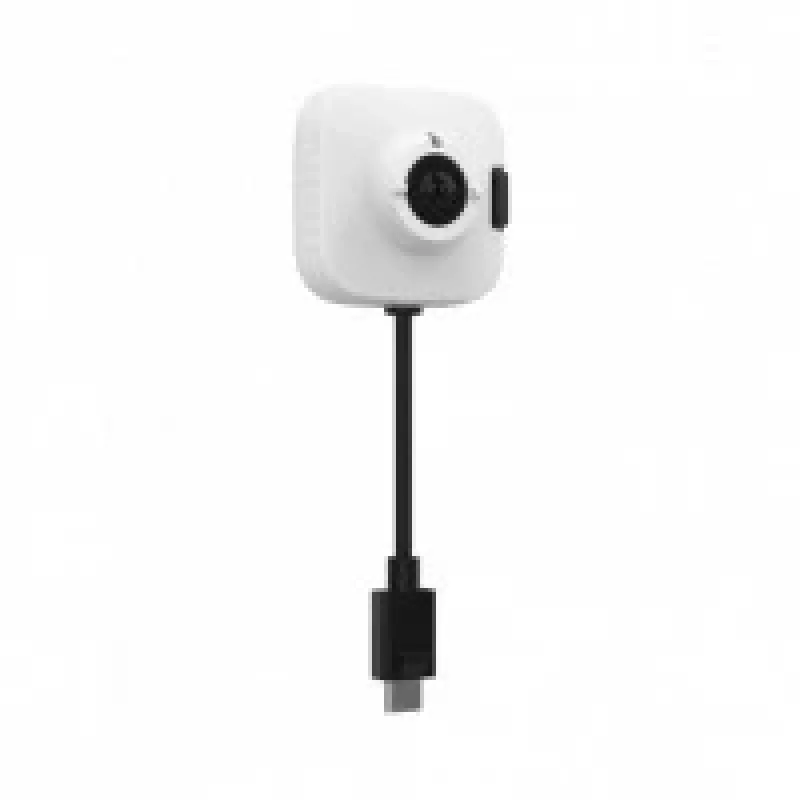

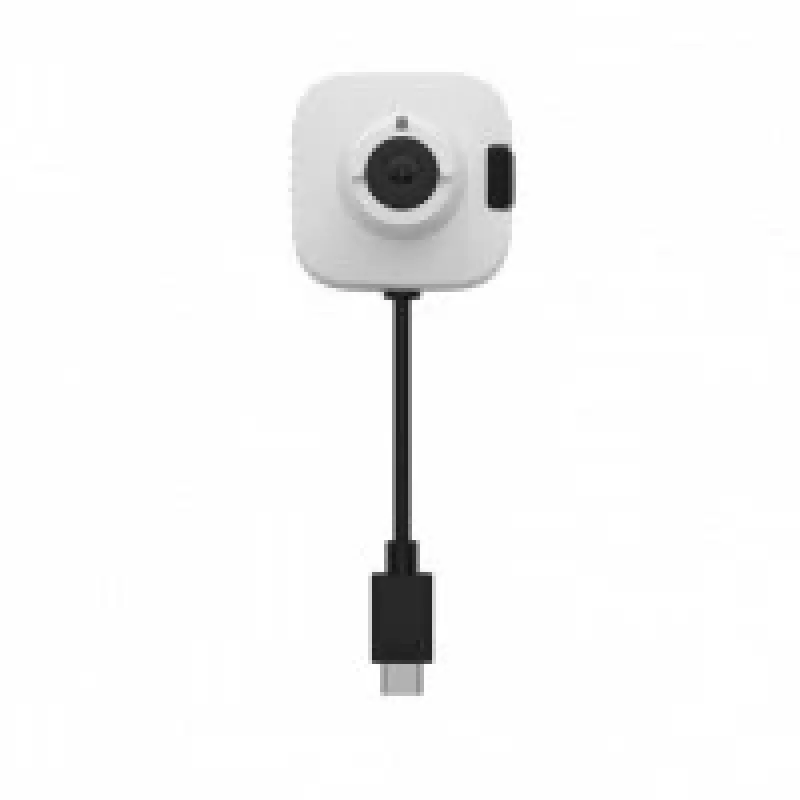

Telecamera di sorveglianza Axis 02260-001 cablata CMOS 1920 x 1080 pixel

AXIS TW1201 Body Worn Mini Cube Sensor is a compact wired body camera with a CMOS sensor offering up to 1920 x 1080 pixels resolution and a minimum illumination of 0.1 lx. Housed in a small black or white plastic enclosure and weighing approximately 0.04 kg, the unit is designed for discreet recording and flexible placement. The camera connects via a 0.8 m wired USB cable and supports common video compression formats including AVC, H.264 and MPEG‑4. It is certified to EN 55032 Class B and FCC Part 15.

Advantages

The camera combines a small form factor and low weight with robust optical performance equivalent to AXIS W100, producing sharp images even in low light. A simple magnet mounting system enables easy repositioning and attachment to lightweight fabrics such as blazer lapels or T‑shirts. The wired USB connection ensures stable data transfer and compatibility with systems that accept wired video input.

Suitable for

• Discreet body-worn recording by security personnel
• Evidence capture in field operations and inspections
• Use where low-profile mounting is required (lapels, pockets, thin fabrics)
• Environments requiring wired, stable video connection

Key specifications

• Model: AXIS TW1201 / MPN 02260-001
• Image sensor: CMOS
• Maximum resolution: 1920 x 1080 pixels (Full HD)
• Minimum illumination: 0.1 lx
• Connectivity: Wired USB, cable length 0.8 m
• Video compression: AVC, H.264, MPEG‑4
• Mounting: Magnet mount
• Housing colors: Black and white
• Weight: approx. 0.04 kg
• Certifications: EN 55032 Class B, FCC Part 15

How to use

Attach the AXIS TW1201 to clothing using the magnet mount, positioning the lens to face the area to be recorded. Connect the camera to a compatible USB port using the supplied 0.8 m cable. Configure the receiving device or recording software to accept the camera’s AVC/H.264/MPEG‑4 stream and set desired resolution and exposure settings as needed. Verify the image framing and lighting before starting the recording session.

Recommendations

For best results, place the camera on stable, thin fabric (lapels or T‑shirts) to maintain a discreet profile and ensure the magnet has full contact. Test exposure settings in the expected lighting conditions and secure the USB connection to prevent accidental disconnection during use.
