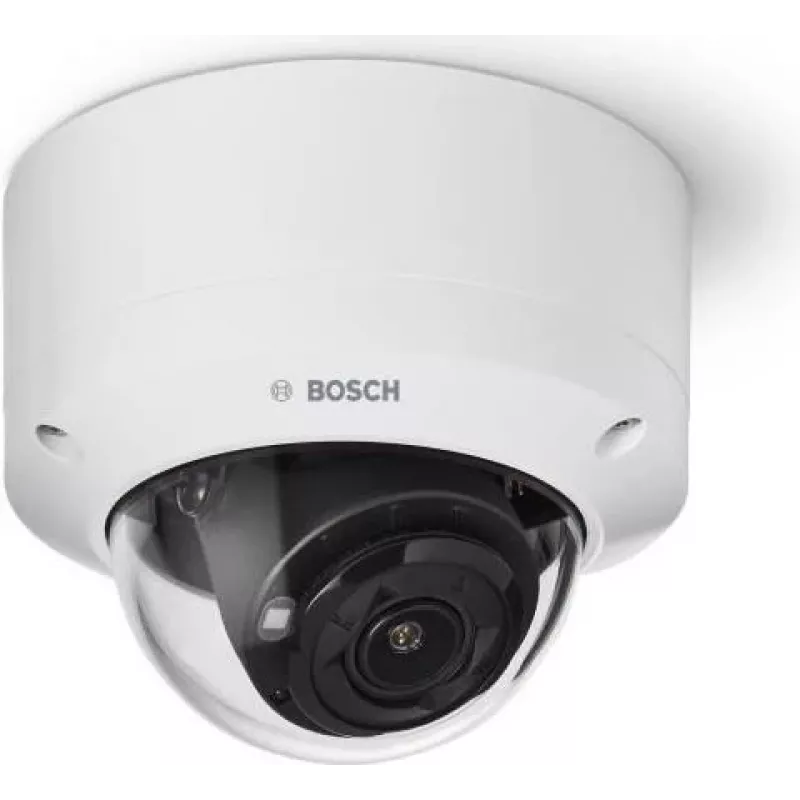

Telecamera di sorveglianza Bosch NDV-5702-AL Fixed Dome 2MP HDR 3.2-10.5mm

The Bosch NDV-5702-AL Fixed Dome is a 2MP surveillance camera with HDR imaging and a 3.2–10.5 mm varifocal lens designed for reliable day/night monitoring. The camera produces full HD video with improved dynamic range to capture detail in scenes that include both bright and dark areas. Housed in a compact fixed dome enclosure with weather-resistant construction, it is suitable for mounted installations where discreet, continuous observation is required. Integrated motion detection and remote viewing support enable straightforward integration into IP-based security systems.

Advantages

High dynamic range (HDR) ensures better image detail in mixed lighting, reducing blown-out highlights and deep shadows. The 3.2–10.5 mm varifocal lens allows flexible framing from wide-angle to medium-telephoto views without changing the camera. The camera’s 2MP sensor delivers full HD resolution for identification and evidence purposes. Robust dome housing supports indoor and outdoor installations and helps protect the optics from weather and tampering. Network connectivity and motion detection simplify remote monitoring and event-driven recording.

Suitable for (tasks / use cases)

• Perimeter surveillance of commercial or residential buildings
• Indoor monitoring of lobbies, corridors and retail areas
• Parking lot and driveway observation
• Entrance and access control points

Key specifications

• Image sensor resolution: 2 megapixels (Full HD)
• Lens: 3.2–10.5 mm varifocal
• Imaging: High Dynamic Range (HDR)
• Form factor: fixed dome
• Suitable for indoor and outdoor installation (weather-resistant housing)
• Features: motion detection, remote viewing over IP

How to use

Install the camera at the selected mounting point, ensuring the dome has a clear field of view and is within range of your network infrastructure. Use the lens adjustment to set the desired focal length and framing; tighten the lens controls and secure the dome cover. Connect the camera to the IP network and configure network settings, user access and recording options using the manufacturer’s setup utility or compatible video management software. Calibrate motion detection zones and sensitivity to reduce false alarms from irrelevant motion sources.

Recommendations

Position the camera to avoid direct, intense light sources in the frame to maximize HDR effectiveness. For outdoor installations, mount the camera under some overhang when possible to reduce direct exposure to rain and sun. Regularly clean the dome cover and check seals to maintain image clarity and weather resistance. Integrate the camera with a network video recorder or cloud service for continuous recording and secure remote access.
