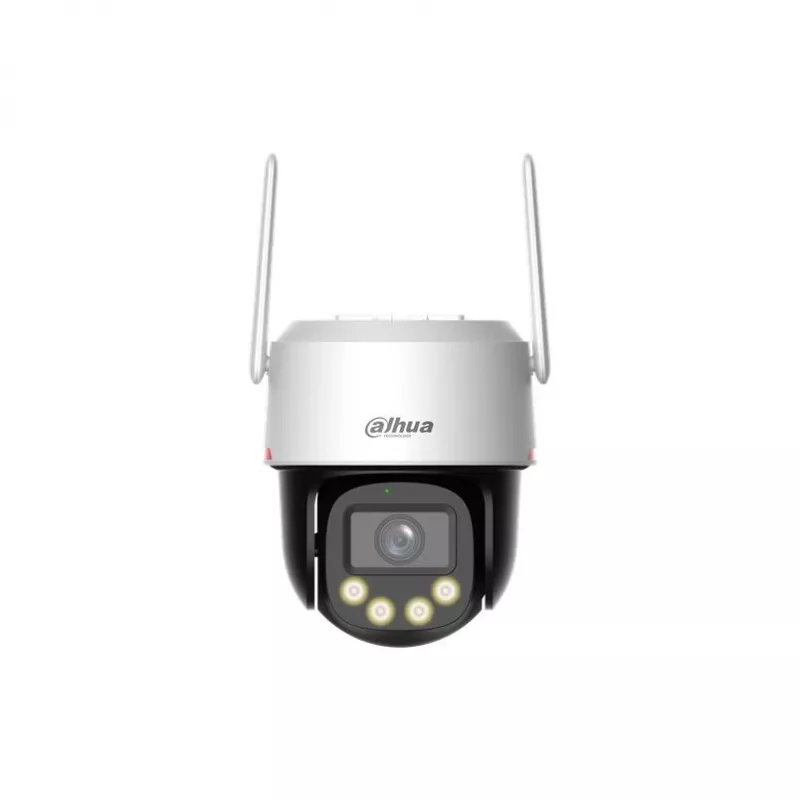

Telecamera di sorveglianza DAHUA WRL CAMERA 3MP PT DOME WIFI P3F-PV-0360B-PRO

Compact dome camera model P3F-PV-0360B-PRO features a 1/2.8" image sensor and 3 megapixel resolution. The unit includes a built-in microphone, supports microSD card storage up to 512 GB, and is powered by a 12 VDC supply (1 A ± 10%). Its housing measures 153.5 mm × Φ129.3 mm and the product is supplied individually in single-unit boxes.

Advantages

The P3F-PV-0360B-PRO combines a 3 MP sensor and integrated microphone in a compact dome format, enabling local recording to cards up to 512 GB and straightforward installation with a 12 V power input. Its moderate dimensions make it suitable for ceiling or wall mounting where space is limited.

Key specifications

• Model: P3F-PV-0360B-PRO
• Sensor size: 1/2.8"
• Resolution: 3 Megapixel
• Microphone: Built-in
• Card support: up to 512 GB
• Power options: 12 V
• Power supply requirements: 12 VDC, 1 A ± 10%
• Dimensions: 153.5 mm × Φ129.3 mm
• Box quantity: 1

How to use

Mount the dome camera on a suitable ceiling or wall surface using the appropriate fasteners. Insert a supported microSD card (up to 512 GB) into the card slot before powering the device. Connect a stable 12 VDC power source capable of supplying 1 A (±10%) and configure camera settings via the supplied interface or software according to installation needs. Verify audio recording is enabled if microphone capture is required.

Recommendations

Use a high-quality, class-rated microSD card to ensure reliable recording. Ensure the power supply matches the specified 12 VDC and current rating to avoid performance issues. Install the camera in a sheltered location or use additional weather protection if placed outdoors.
