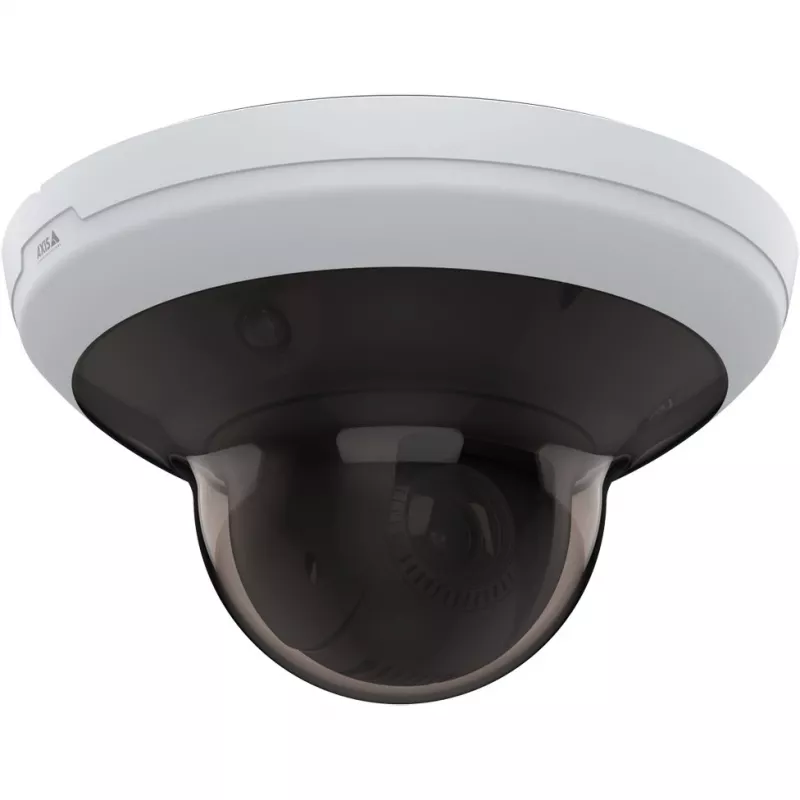

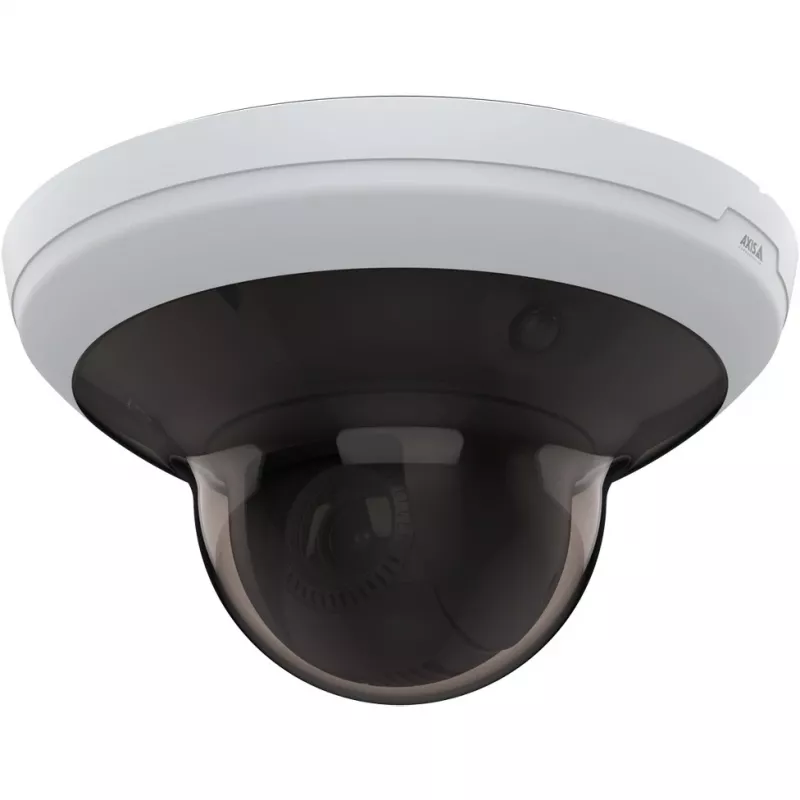

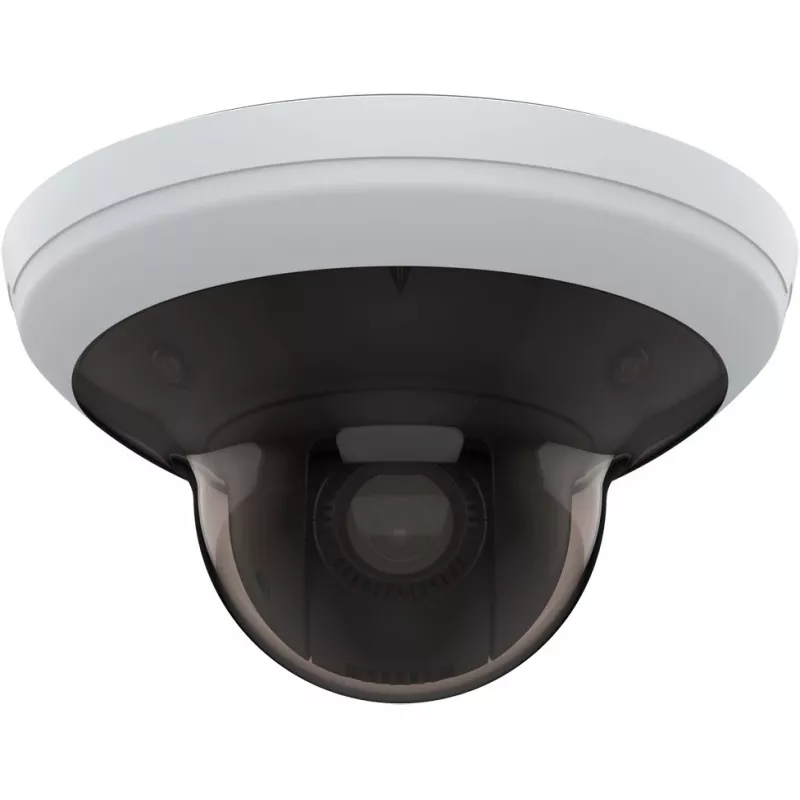

Telecamera di sorveglianza IP Axis 02187-002 1920 x 1080 pixel

AXIS M5000-G PTZ Camera combines three 5 MP fixed sensors and one PTZ module with 10x optical zoom to provide comprehensive situational awareness for indoor areas up to 400 m2 (4300 ft2). The camera displays wide overview and detailed zoomed views on a single monitor, allowing users to switch from an overall scene to close-up detail with a single click. It also supports wireless I/O connectivity using Z-Wave Plus® to communicate with up to six devices, enabling integration with environmental sensors or lighting for unified monitoring and control. Installing AXIS M5000-G delivers the coverage of four cameras in one housing.

Advantages

AXIS M5000-G reduces hardware complexity by combining multiple sensors and a PTZ lens in a single unit, lowering installation and maintenance needs. The 10x optical zoom PTZ provides high-detail imaging when required, while the three 5 MP sensors maintain wide-area coverage. Built-in Z-Wave Plus® wireless I/O enables simple integration with devices such as temperature sensors and lighting controllers for centralized monitoring. The single-monitor workflow enables fast transitions between overview and zoomed views, improving situational awareness in indoor environments.

Key specifications

• Image sensors: three 5 MP fixed sensors + one PTZ sensor
• Optical zoom: 10x (PTZ)
• Coverage area: up to 400 m2 (4300 ft2)
• Wireless I/O: Z-Wave Plus® support, up to 6 devices
• Form factor: combined multi-sensor and PTZ camera

How to use

Mount the AXIS M5000-G according to the installation guidelines for indoor coverage up to 400 m2. Configure the camera via the provided management interface to set up the multi-sensor layout and PTZ presets. Use the single-monitor view to navigate between the wide-area sensors and the PTZ zoomed view; click to move from overview to detailed view. Pair Z-Wave Plus® devices through the camera’s wireless I/O settings to connect temperature sensors, door contacts, or lighting controllers and define any automation or alert rules as needed.

Recommendations

For optimal performance, position the camera centrally to cover the target area and plan PTZ patrols or presets to cover points of interest. When integrating Z-Wave Plus® devices, verify device compatibility and place wireless devices within recommended range to ensure reliable communication.
