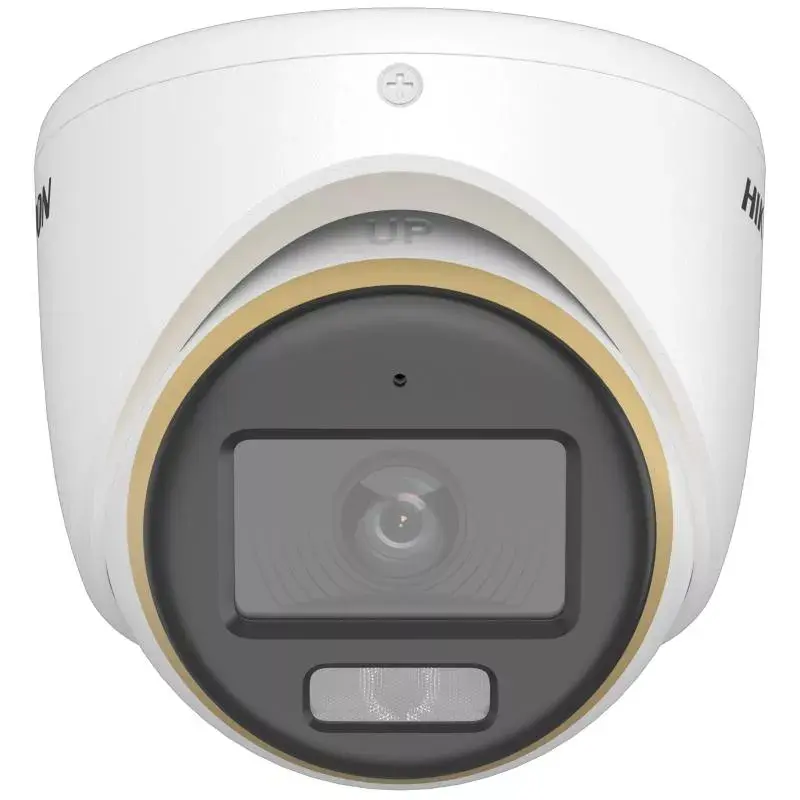

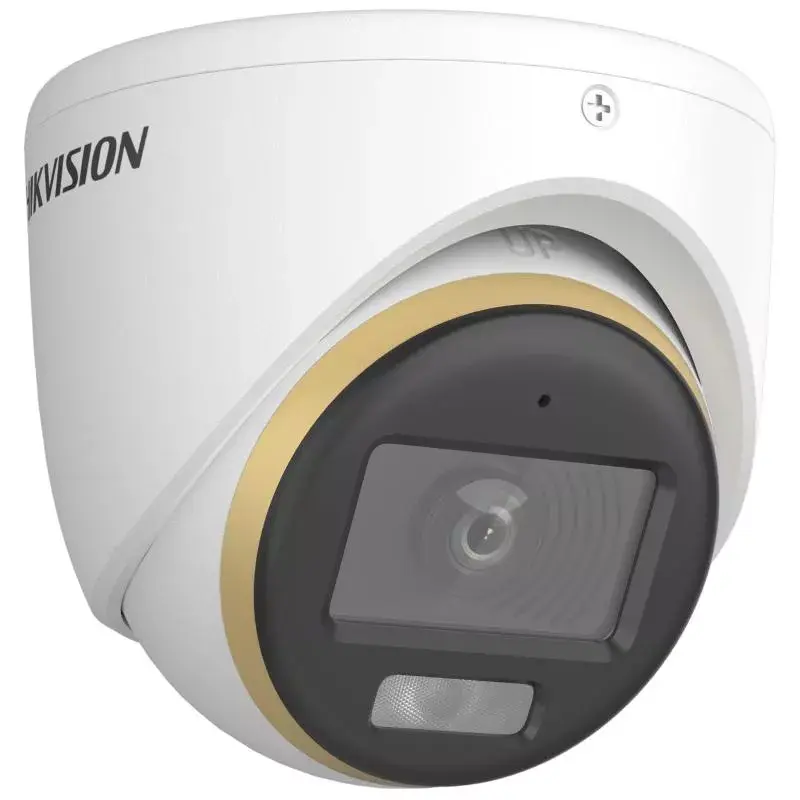

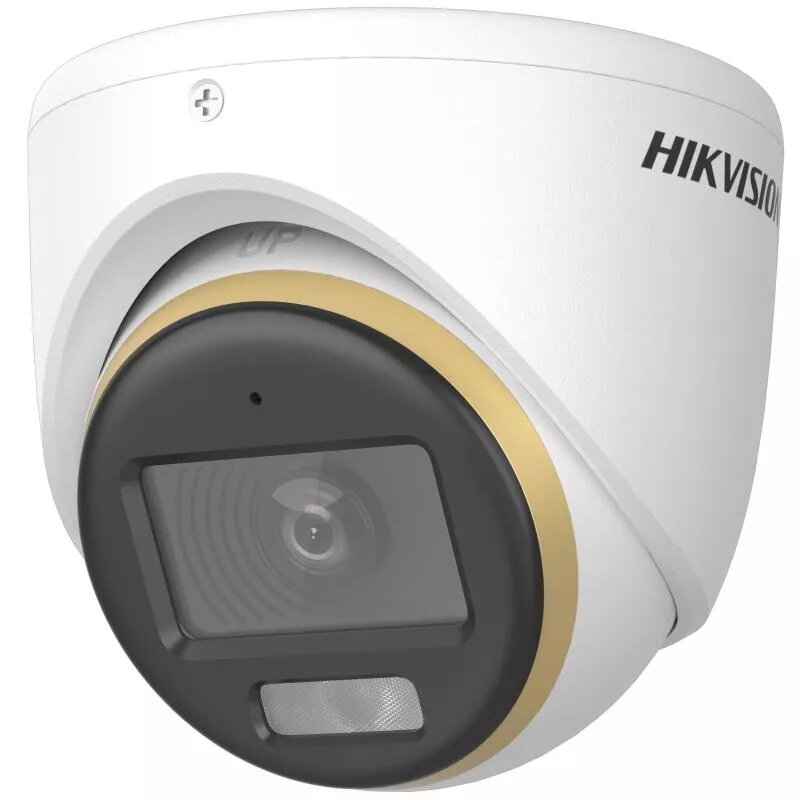

Telecamera di sorveglianza IP Hikvision Turbo HD DS-2CE70DF3T-LMFS 1920x1080

The Hikvision Turbo HD DS-2CE70DF3T-LMFS 1920x1080 is an IP security camera designed for ceiling installation and suitable for both indoor and outdoor environments. It delivers Full HD (1920 x 1080) resolution at up to 30 fps using a CMOS sensor and a 2.8 mm fixed focal-length lens. The camera provides wide coverage with a 360° rotation capability and a 105° horizontal by 56° vertical field of view. Housed in a white enclosure, the unit supports wired connectivity and includes video motion detection for basic event triggering.

Advantages

This camera combines Full HD image capture with a compact ceiling-mount form factor to offer clear, continuous monitoring in a variety of settings. The 2.8 mm lens and wide viewing angles reduce the number of cameras required to cover open areas, while the 360° rotation provides flexibility when adjusting the scene. Wired connectivity ensures a stable video feed, and integrated video motion detection supports simple automated alerts or recording actions.

Suitable for (tasks / use cases)

• Monitoring retail floors and checkout areas
• Observing corridors, lobbies and reception spaces
• Surveillance of small warehouses and storage rooms
• Ceiling-mounted coverage of indoor public areas
• Exterior overhangs and sheltered outdoor entrances

Key specifications

• Resolution: 1920 x 1080 (Full HD)
• Frame rate: up to 30 fps
• Image sensor: CMOS
• Lens focal length: 2.8 mm (fixed)
• Field of view: 105° horizontal, 56° vertical
• Rotation: 360° adjustable rotation
• Mounting type: Ceiling
• Placement: Indoor and outdoor supported
• Connectivity: Wired
• Video motion detection: Yes
• Colour: White
• Weight: 0.335 kg

How to use

Mount the camera to a suitable ceiling surface following local installation codes and ensuring a stable wired network connection. Position and rotate the camera to obtain the required coverage area and secure it in place. Connect the unit to power and the wired network, then configure resolution, frame rate and motion detection settings through the Hikvision management software or compatible NVR. Verify the field of view on a live feed and adjust angle and rotation as needed to avoid blind spots.

Recommendations

For reliable performance, install the camera where it is protected from direct exposure to severe weather if used outdoors, such as under an overhang. Use a stable wired network and consistent power source; integrate motion detection settings with your recording or alerting system to reduce unnecessary recordings. Regularly check lens cleanliness and perform firmware updates via authorized Hikvision tools to maintain image quality and security.
