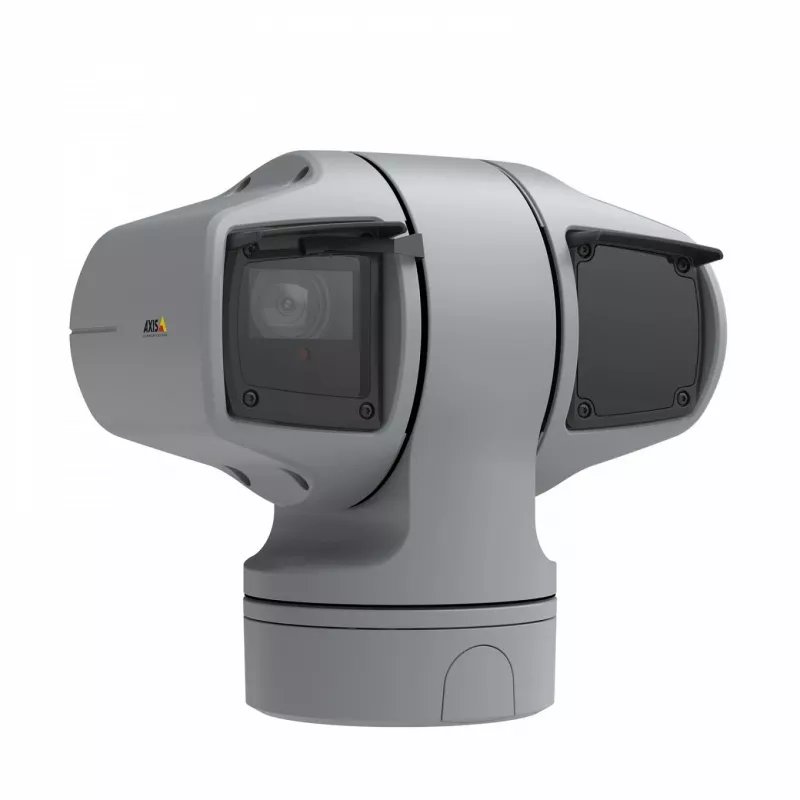

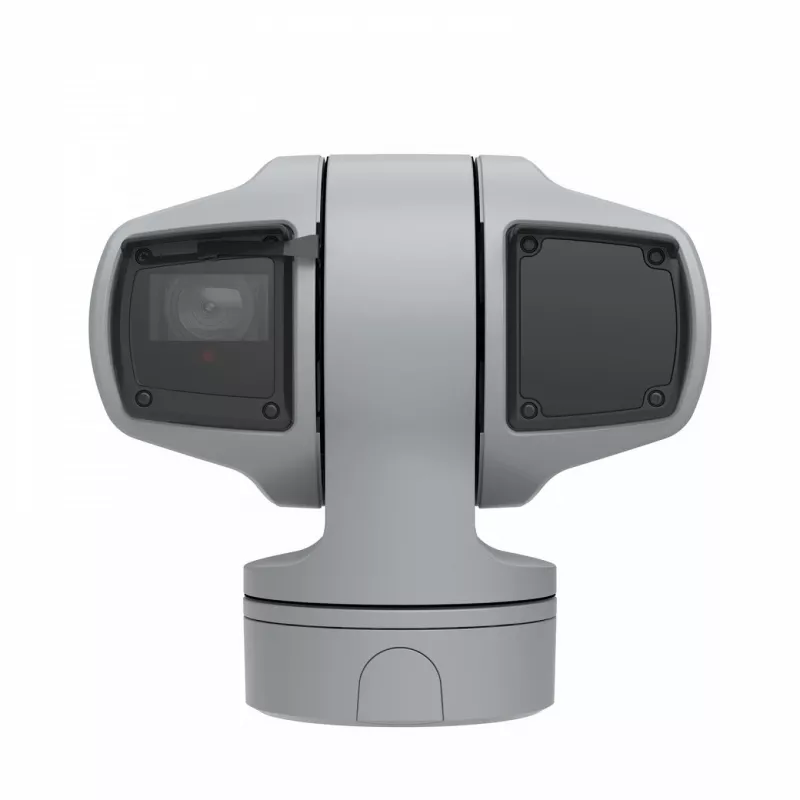

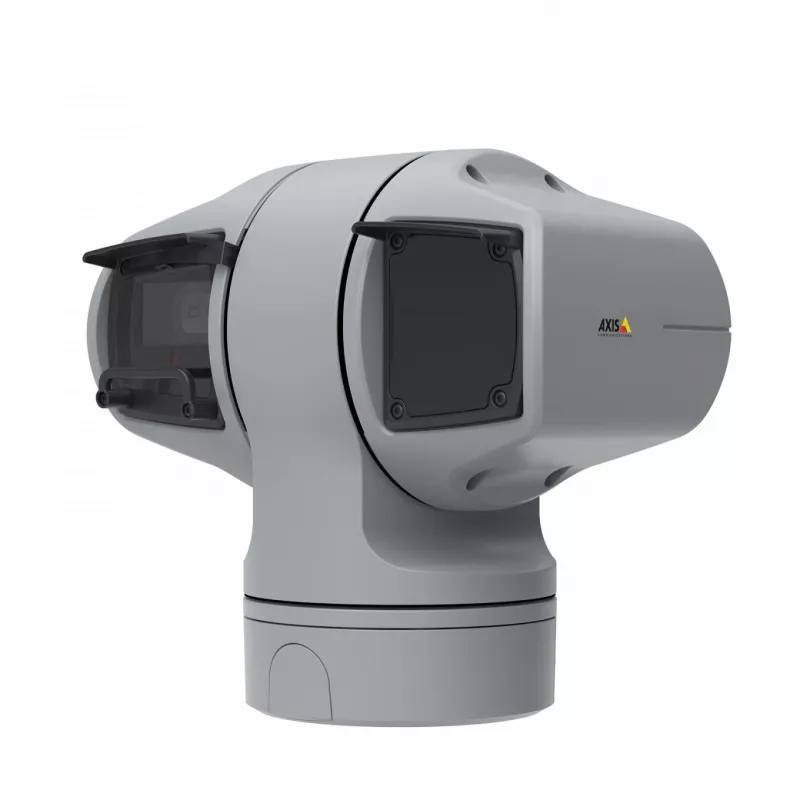

Telecamera di videosorveglianza IP Axis 02316-003 Box 1920 x 1080 pixel

The AXIS 02316-003 (AXIS Q6225-LE) is a heavy-duty outdoor IP security camera in a grey box form factor that delivers 1920 x 1080 HDTV resolution with a 1/2" sensor and 31x optical zoom. Built to MIL-STD-810G and rated IK10 for vandal resistance, it combines Lightfinder, Forensic WDR and OptimizedIR to provide sharp images across a wide range of lighting conditions. The camera supports built-in analytics, wired Ethernet connectivity, and efficient video compression (Zipstream with H.264/H.265) to reduce bandwidth and storage needs.

Advantages

The camera provides robust environmental and impact protection for outdoor surveillance, capable of operating in very harsh conditions and resisting strong winds. Its optical 31x zoom together with 12x digital zoom and a 63.8° horizontal field of view enable detailed long-distance monitoring. Low-light performance (minimum illumination 0.05 lx), advanced image processing and integrated analytics improve detection and identification while Zipstream lowers data and storage requirements.

Suitable for

When it may not be suitable

This wired, heavyweight camera (approx. 8.7 kg) is intended for fixed outdoor mounting and may be excessive for small indoor installations or simple home security where compact or wireless cameras are preferred. Environments that require Wi‑Fi connectivity or extremely low-cost solutions may not find this model appropriate.

Key specifications

How to use

Mount the camera on a suitable outdoor wall bracket and connect to a wired Ethernet network for power and data. Configure basic camera settings and enable built-in analytics via the Axis management interface or compatible VMS. Use PTZ controls to position and zoom for required coverage; adjust Forensic WDR and OptimizedIR settings for improved detail in mixed or low-light scenes. Monitor video streams and record to network storage with H.264/H.265 compression to optimize bandwidth and retention.

What to consider before purchase

Recommendations

For reliable outdoor surveillance, install the AXIS 02316-003 on a secure wall mount with proper weather sealing and ensure network and power redundancy. Configure compression and recording settings to balance image quality and storage, and periodically clean the dome and verify alignment after severe weather events.
