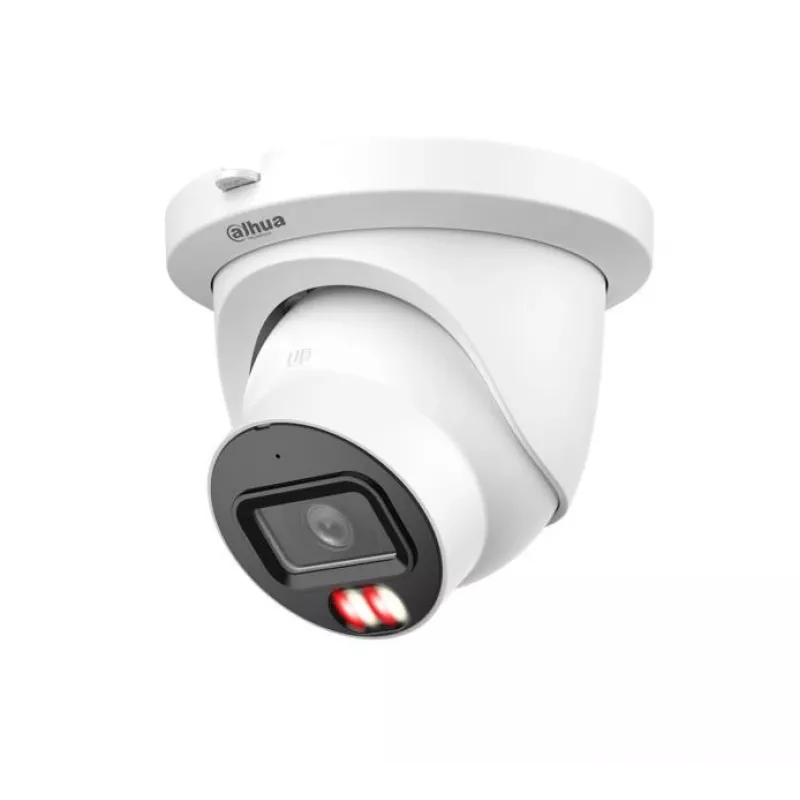

Telecamera IP Dome DAHUA HDW5859TM-ASE-IL-0280B 8MP Eyeball con illuminazione IR

8 Mega Pixel outdoor dome camera with a 2.8mm fixed lens and 1/1.8" image sensor. The camera provides 3840 × 2160 effective pixels, supports IR illumination for low-light conditions and offers flexible power options including PoE+ (802.3at), ePoE or a 12 VDC input. The compact weatherproof housing is designed for outdoor use and operates across a wide temperature range, making it suitable for surveillance in varied environments.

Advantages

The camera delivers high-resolution 8 MP imagery for detailed scene capture while the 2.8mm lens provides a wide field of view. Low-light performance is enhanced by IR illumination and a low minimum illumination threshold of 0.0004 lux. Multiple power options (PoE/12 V) simplify installation and deployment, and the robust operating temperature range (−40 °C to +60 °C) ensures reliable operation outdoors.

Key specifications

• Type: HDTV/Megapixel/Outdoor
• Resolution: 8 Mega Pixel (3840 × 2160)
• Sensor size: 1/1.8"
• Focal length: 2.8 mm (M12 lens mount)
• Effective pixels: 3840 (H) × 2160 (V)
• Minimum illumination: 0.0004 Lux
• IR illumination: yes
• Electronic shutter speed: Auto/Manual 1/3 s–1/100,000 s
• Power options: PoE+ (802.3at), ePoE, 12 VDC (±30%)
• Environment: Outdoor
• Operating temperature: −40 °C to +60 °C
• Dimensions: 105.5 mm × Φ122.0 mm

How to use

Install the camera in a suitable outdoor location with a stable mounting surface and appropriate exposure to the monitored area. Connect power via PoE+ (802.3at) or to a 12 VDC supply within the specified tolerance. Configure exposure and electronic shutter settings (Auto or Manual) through the device interface to match lighting conditions. Ensure the lens is secured in the M12 mount and adjust the field of view as needed. Verify IR illumination performance in low-light conditions and perform a final alignment check.

Recommendations

For optimal performance, use PoE+ (802.3at) or ePoE where possible to provide reliable power and data over a single cable. Select mounting locations that are sheltered from direct spray and debris, and confirm the 12 VDC supply meets the ±30% tolerance. Regularly inspect seals and connections to maintain weatherproofing and clean the dome cover to avoid image degradation.
