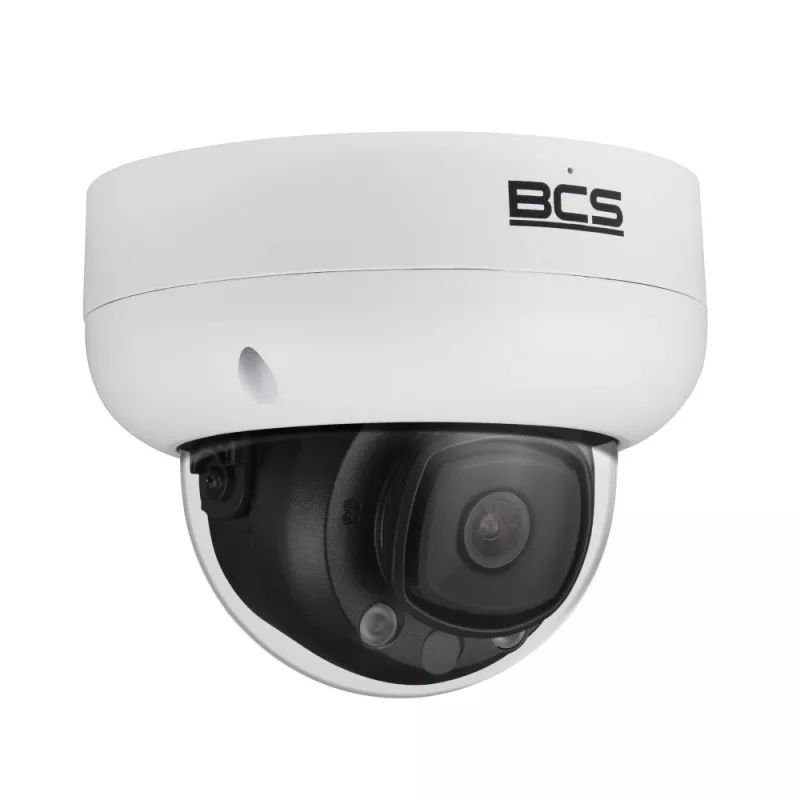

Telecamera IP dome IR 5MP BCS BCS-L-DIP25FCR5L5-Ai2, 2,8mm, 50m IR, IP67, IK10, IA

The BCS-L-DIP25FCR5L5-Ai2 is a high-performance 5MP IR dome IP camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" progressive scan CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. Equipped with Smart IR technology, it provides up to 50m of night vision. The camera supports H.265+ compression, True WDR 120dB, and advanced AI analytics including SMD, perimeter protection, and face detection. Its robust metal housing with IP67 and IK10 ratings ensures reliable operation in harsh environments.

Advantages

Exceptional image quality with 5MP resolution and 120dB True WDR for challenging lighting conditions. Smart IR adapts to scene brightness for optimal night vision. AI-powered analytics reduce false alarms and enhance security. Durable design with IP67 weatherproofing and IK10 vandal resistance ensures long-term reliability. Easy installation with PoE support and built-in microphone for audio monitoring.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring high-definition monitoring
• Indoor and outdoor applications demanding vandal resistance

Key specifications

• Sensor: 1/2.7" 5MP Progressive Scan CMOS
• Resolution: 2592x1944 (5MP) at 20fps
• Lens: 2.8mm fixed, 103° horizontal FOV
• IR Range: Up to 50m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• AI Features: SMD, Perimeter Protection, Face Detection
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100Base-T
• Power: 12V DC / PoE (802.3af), max 6.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to +60°C
• Housing: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. Position the camera to avoid direct sunlight or extreme reflections for best image quality.
