Telecamera IP fixed dome LevelOne GEMINI, 2 megapixel, H.265, antivandalo, 802.3af PoE, interno/esterno

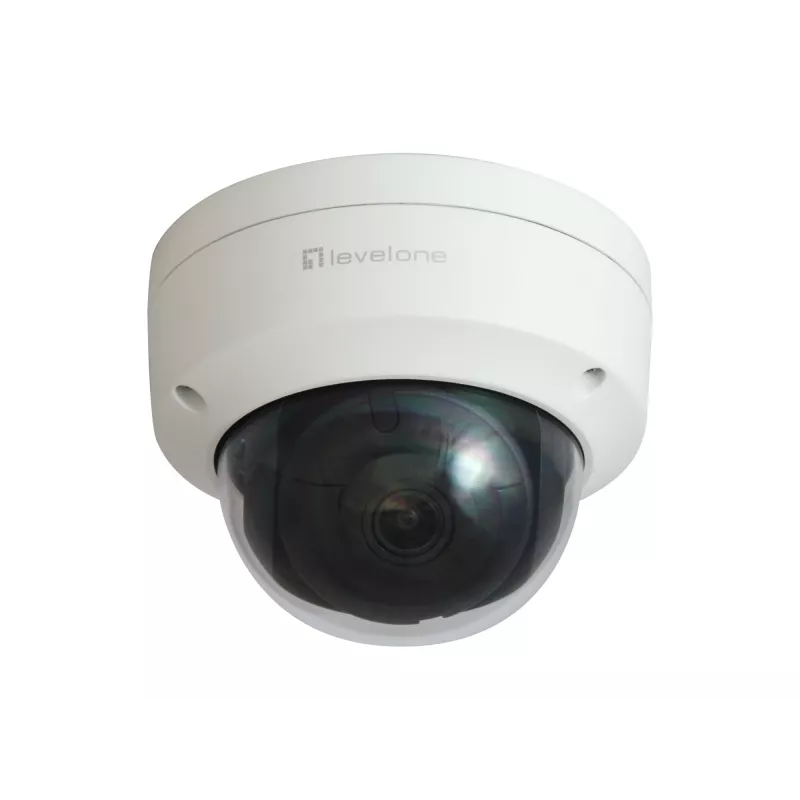

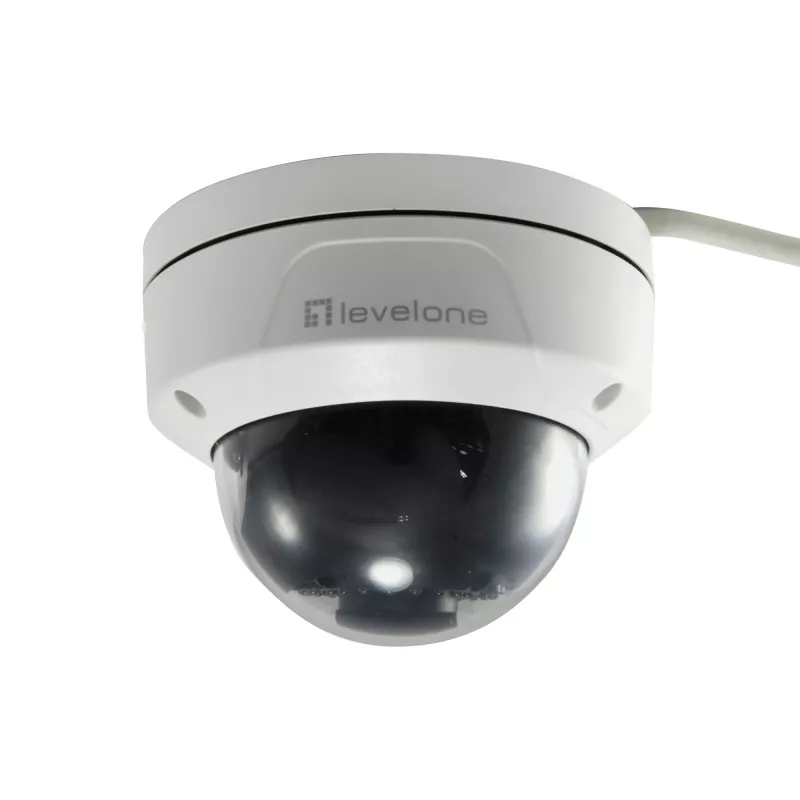

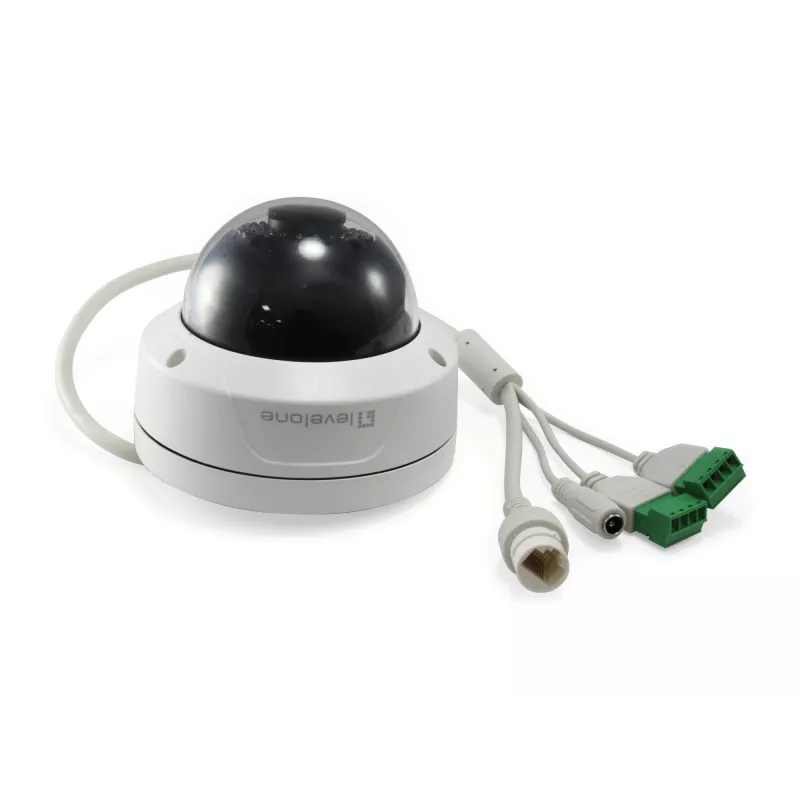

The LevelOne GEMINI FCS-3402 is a fixed-position outdoor IP security camera that delivers 2-megapixel resolution with H.265 video compression for efficient storage. Designed for both indoor and outdoor installations, it is vandalproof and rated IP67 for protection against rain, dust, snow and humidity. The camera supports Power over Ethernet (802.3af) to carry power and data over a single Cat.5 cable and provides a wide 86° horizontal field of view with a 4 mm fixed focal length and 8x digital zoom.

Advantages

The camera combines 2 MP image quality with H.265 compression to reduce bandwidth and storage needs while maintaining clear footage. Its IP67 rating and vandalproof design enable reliable operation in harsh outdoor environments. PoE (802.3af) simplifies installation by using one cable for power and network connectivity. The 86° field of view and 46° vertical angle offer broad coverage for typical surveillance scenarios.

Suitable for

• Perimeter and outdoor area monitoring
• Entrance, driveway and parking surveillance
• Indoor ceiling or wall surveillance in public spaces
• Sites requiring weatherproof and vandal-resistant cameras

Key specifications

• Resolution: 2 megapixels
• Video compression: H.265
• Field of view (horizontal): 86°; vertical: 46°
• Lens: fixed 4 mm, 8x digital zoom
• PoE: 802.3af supported
• Ingress protection: IP67
• Frame rate: up to 30 fps
• Connectivity: wired Ethernet (no Wi‑Fi)
• Mounting: ceiling or wall
• Colour: white

How to use

Mount the camera on a stable ceiling or wall surface using appropriate fixtures. Connect the device to the network switch or injector using a Cat.5 (or higher) Ethernet cable to provide both power and data via PoE (802.3af). Configure network settings and video parameters through the camera’s web interface or the supported management software, adjusting resolution, compression, motion detection and image orientation as needed. Position the camera to cover the desired area within its 86° field of view and fine-tune the framing using the camera’s housing adjustments.

Recommendations

For best results, install the camera within reach of a PoE switch or injector that meets 802.3af specifications, ensure the mounting surface is secure and protected from extreme mechanical impact, and schedule periodic checks of lens cleanliness and firmware updates to maintain image quality and security.
