TELEGÄRTNER adattatore BNC da incasso femmina a femmina 50 Ohm J01004A1231

This BNC bulkhead adapter from TELEGÄRTNER delivers a 50 Ohm impedance with a VSWR of ≤1.25 at 1 GHz, ensuring reliable signal integrity up to 4 GHz.

Overview

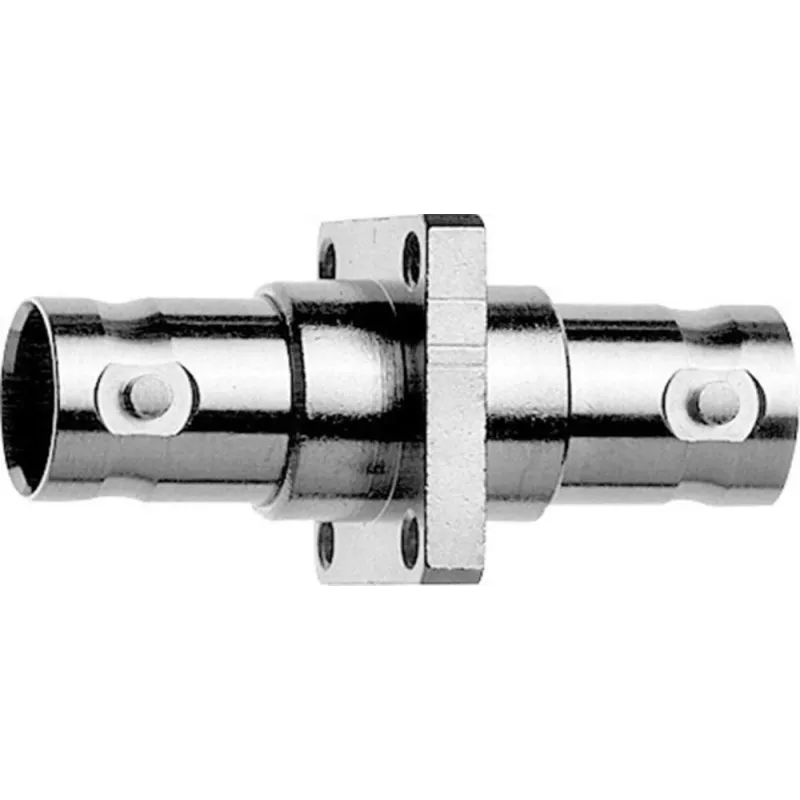

The J01004A1231 is a panel-mount BNC coupler featuring a jack-to-jack (female-to-female) configuration. It is designed for through-panel connections where a secure, low-loss link is required. The adapter body is made of nickel-plated brass, while the contacts are gold-plated for excellent conductivity and corrosion resistance. PTFE insulation provides stable dielectric performance across the operating temperature range of -40 °C to +85 °C.

What stands out

• Wide frequency range: 0 – 4 GHz
• Low VSWR: ≤1.25 at 1 GHz
• High insulation resistance: ≥5 GΩ
• Gold-plated contacts for reliable signal transmission
• Robust nickel-plated brass body for durability

Technical details

• Connector type: BNC
• Gender: Jack (female) to Jack (female)
• Impedance: 50 Ohm
• Mounting type: Bulkhead / Panel mount
• Mounting hole diameter: 12.7 mm (0.5 inch)
• Dielectric withstanding voltage: 1.5 kVeff (50 Hz)
• Contact resistance (inner): ≤1.0 mΩ
• Contact resistance (outer): ≤1.5 mΩ
• Body material: Brass (CuZn39Pb3), nickel plated
• Contact material: Brass (CuZn39Pb3), gold plated
• Insulation material: PTFE

Our verdict

A high-quality bulkhead adapter that provides a dependable BNC connection for panel-mounted applications, with excellent electrical performance and robust construction.
