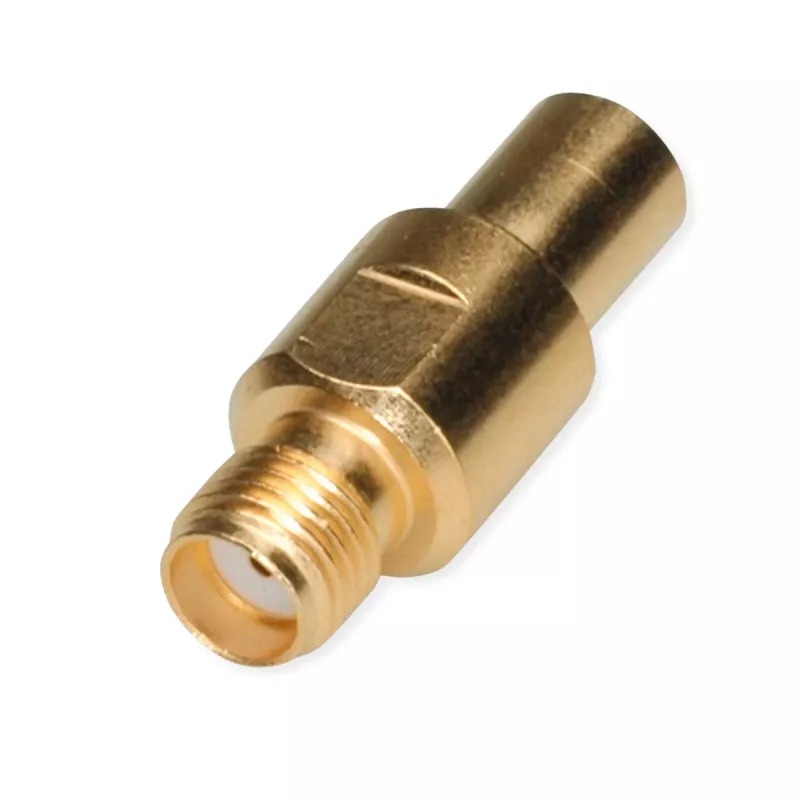

Telegärtner adattatore coassiale SMA femmina su SMB femmina J01155A0041

When a system uses SMA and SMB interfaces, connecting them directly is impossible without the right adapter. This Telegärtner J01155A0041 coaxial adapter bridges that gap, providing a reliable 50 Ohm transition between an SMA female and an SMB female connector.

Who is it for

RF technicians, test engineers, and system integrators who need to interconnect components with different coaxial connector types in laboratory, test, or communication setups.

Main features

• Adapter type: Coaxial Adapter
• Connector A: SMA female
• Connector B: SMB female
• Impedance: 50 Ohm
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.25 (DC - 4 GHz)
• Body material: Brass with nickel plating
• Center contact: Brass with gold plating
• Insulator: PTFE
• Dielectric withstanding voltage: 1000 Veff
• Insulation resistance: ≥ 1 GΩ
• Operating temperature: -40°C to +85°C
• Mating cycles: 500
• Mounting type: Straight
• RoHS compliant

Specifications

• Connector 1: SMA
• Connector 1 gender: Female
• Connector 2: SMB
• Connector 2 gender: Female
• Impedance: 50 Ω
• Frequency band: DC - 4 GHz
• Voltage Standing Wave Ratio (VSWR): ≤ 1.25
• Product colour: Silver

Tips

Ensure both mating connectors are clean and properly aligned before connection to maintain signal integrity and prolong connector life.
