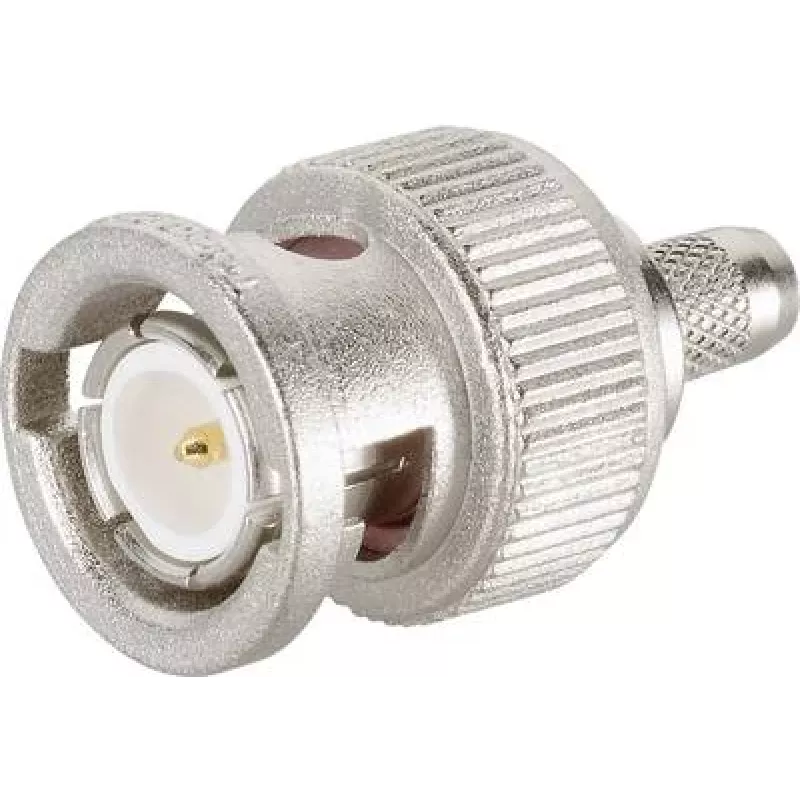

Telegärtner connettore BNC crimp 75 Ohm per RG-59 B/U, contatto oro, guscio nichelato J01002F1288Z

BNC male crimp connector engineered for 75-ohm coaxial cable RG-59 B/U. The crimp/crimp termination provides a secure, tool-applied connection for reliable signal integrity in video and RF applications up to 1 GHz.

Advantages

Gold-plated center contact and nickel-plated brass body ensure low contact resistance and corrosion resistance. PTFE insulation delivers stable dielectric performance across a wide temperature range from -40°C to +85°C. Crimp termination offers a permanent, vibration-resistant connection.

Suitable for

• Broadcast and CCTV video systems
• Telecommunications and data transmission
• Test and measurement equipment
• RF signal distribution

Key specifications

• Connector type: BNC male (plug)
• Impedance: 75 Ohm
• Cable compatibility: RG-59 B/U
• Termination: Crimp (center and outer)
• Frequency range: DC to 1 GHz
• Voltage rating: 500 V RMS
• Contact resistance: ≤1.5 mΩ center, ≤1.0 mΩ outer
• Insulation resistance: ≥5 GΩ
• VSWR: ≤1.20 at 1 GHz
• Operating temperature: -40°C to +85°C
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulation material: PTFE
• Packaging quantity: 1 piece

Recommendations

Use with precision crimp tools designed for BNC connectors to achieve specified performance. Verify cable dimensions match RG-59 B/U before installation.
