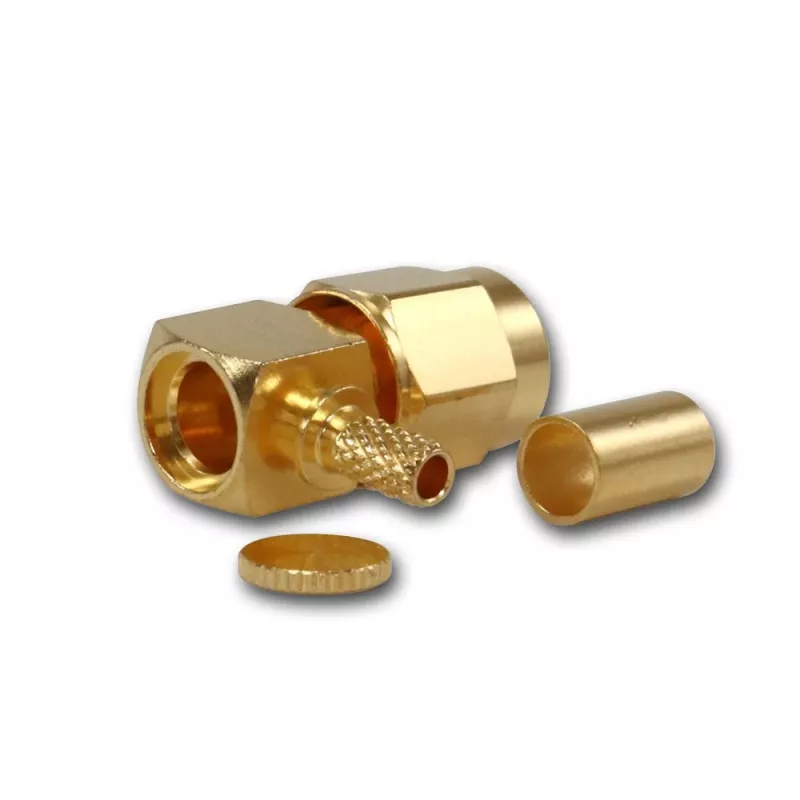

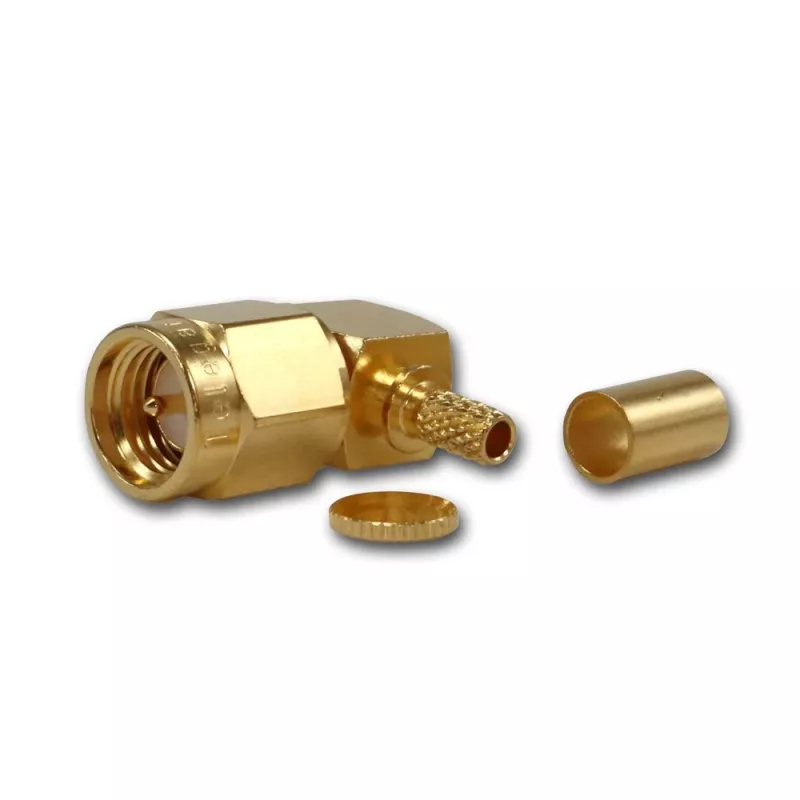

Telegärtner Connettore SMA maschio crimp a 90° per cavo G08 (RD-316), dorato

This SMA plug stands out with its right-angle body, which routes the cable perpendicular to the mating axis—ideal for tight enclosures where a straight connector would bind or exceed the bend radius. The crimp termination suits G08 cable group, including RD-316, RG-174, RG-188, RG-316, LMR-100, and ENVIROFLEX 316 D.

Highlights

• SMA plug (male) with right-angle orientation
• Crimp termination for G08 cable group
• 50 Ohm impedance, DC to 6 GHz
• Gold-plated brass body and contact
• PTFE insulator

In daily use

The right-angle design reduces strain on the cable and allows connections in confined spaces. The gold plating provides corrosion resistance and reliable contact over repeated mating cycles. The crimp termination ensures a secure, consistent attachment to the cable.

Full specifications

• Connector type: SMA plug (male)
• Orientation: right-angle
• Termination: crimp
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Compatible cable group: G08
• Compatible cable types: RG 174 A/U, RG 188 A/U, RG 316 /U, RD 316, LMR-100, ENVIROFLEX 316 D
• Body material: brass, gold-plated
• Contact material: brass, gold-plated
• Insulator material: PTFE
• Dielectric withstanding voltage: 750 V RMS
• Insulation resistance: ≥ 5 GΩ
• Operating temperature: -65 °C to +165 °C
• VSWR: ≤ 1.25 @ 6 GHz
• Durability: ≥ 500 mating cycles
• Mounting type: cable mount

Final note

A reliable right-angle SMA crimp plug for G08 cables, with gold-plated contacts for consistent performance.
