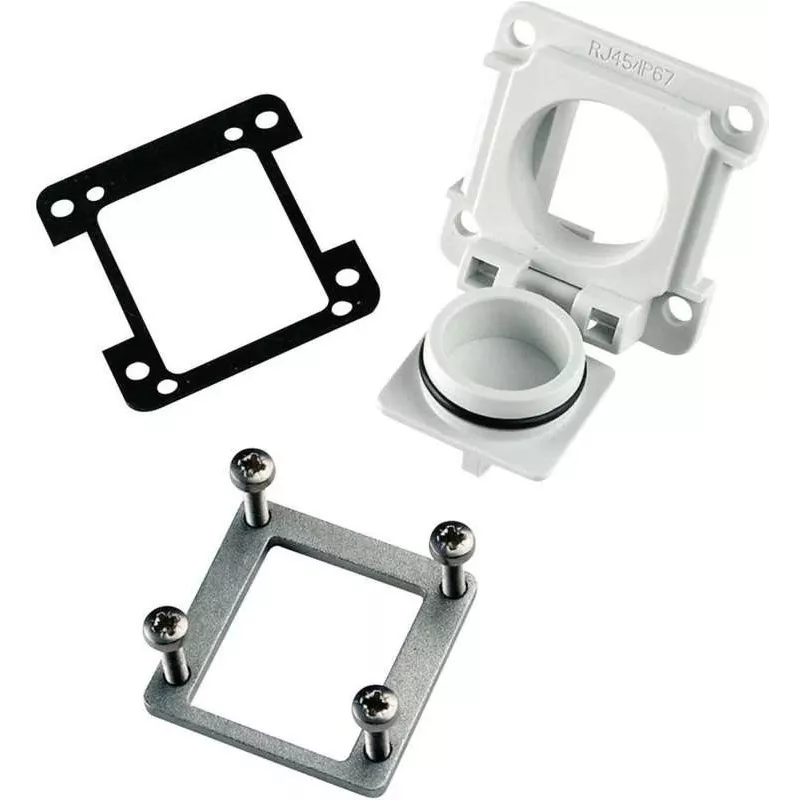

Telegärtner STX V6 variante a flangia 6 grigio chiaro J00029A0040

IP67-rated protection in a compact panel-mount flange — the Telegärtner STX V6 Flange Variant 6 delivers industrial-grade sealing for one STX V6 module, ensuring reliable data connections even in harsh environments.

Overview

This light grey flange (RAL 7035) is part of the Telegärtner STX V6 series, designed for panel mounting with a 4-hole pattern. It accommodates a single STX V6 module, such as RJ45, fiber optic, or USB, providing a robust interface for industrial Ethernet and data communication. The housing is made of glass-fiber reinforced PBT, offering high mechanical strength and dimensional stability. A pre-installed NBR gasket ensures a watertight seal when mated, achieving IP67 protection against dust and temporary immersion.

What stands out

• IP67 protection when mated, safeguarding against dust and water ingress
• Robust PBT-GF housing with UL 94 V-0 flammability rating for safety
• Flexible compatibility with all Telegärtner STX V6 modules
• Wide operating temperature range from -40 °C to +70 °C
• Standardized panel cutout (22.5 x 22.5 mm) for easy integration

Technical details

• Series: Telegärtner STX V6
• Variant: 6
• Colour: Light grey (RAL 7035)
• Housing material: PBT-GF (Polybutylene Terephthalate, glass fiber reinforced)
• Gasket material: NBR (Nitrile Butadiene Rubber)
• Protection class (mated): IP67
• Mounting type: Panel mount, 4-hole flange
• Number of module slots: 1
• Panel cutout dimensions: 22.5 x 22.5 mm
• Screw hole spacing: 29 x 29 mm
• Operating temperature range: -40 °C to +70 °C
• Flammability rating: UL 94 V-0
• Standards compliance: IEC 61076-3-106
• Application: Industrial Ethernet, data communication

Our verdict

A reliable and durable panel-mount flange that meets the demands of industrial environments, offering excellent protection and modular flexibility for your connectivity needs.
