Televes Picokom 2S alimentatore 12V 200mA 579401

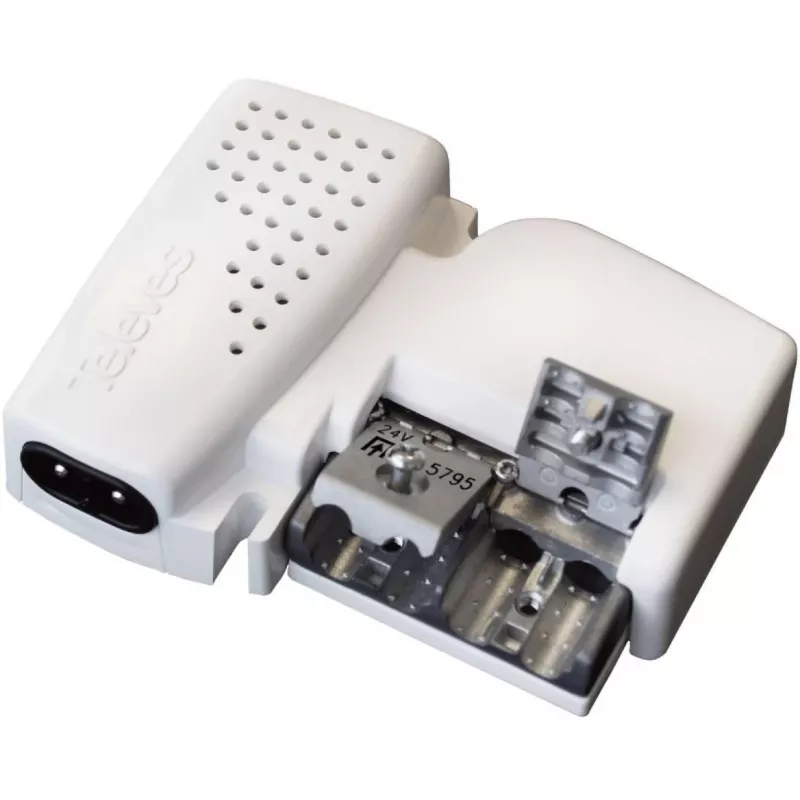

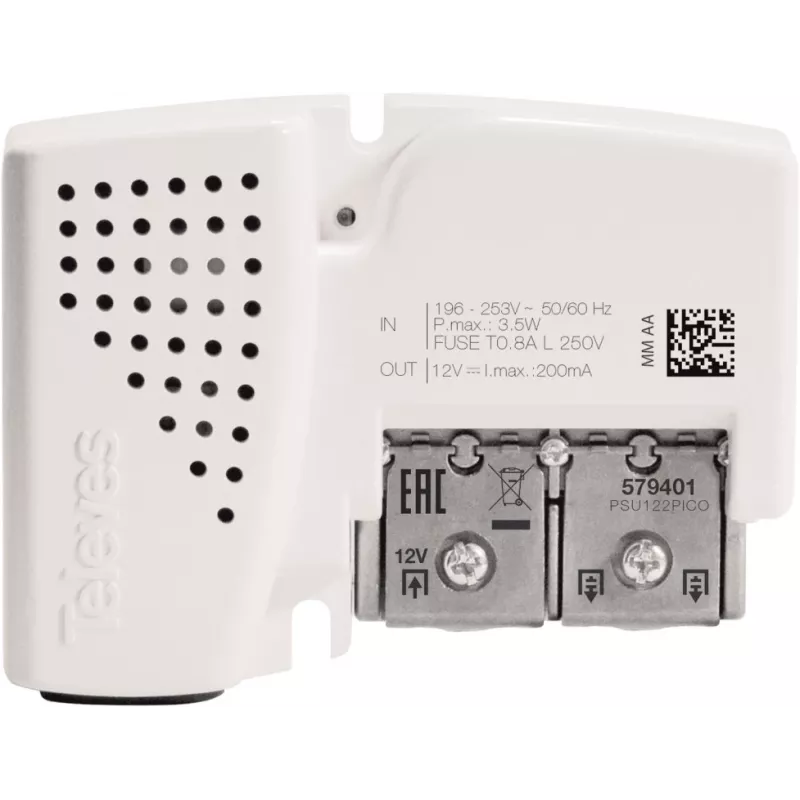

The Televes Picokom 2S Power Supply (model 579401) is a compact, indoor AC/DC adapter designed to power mast amplifiers, LNBs, and other active RF devices. With a stable 12V DC output at 200mA and integrated RF pass-through, it simplifies installation by combining power delivery and signal routing in one unit.

Advantages

Reliable power supply with short-circuit and overload protection. The integrated RF pass-through (5-2400 MHz) eliminates the need for a separate power inserter, saving space and reducing connection points. LED indicator confirms operation status.

Suitable for

• Mast amplifiers and distribution amplifiers
• LNBs and active RF devices
• Indoor installations requiring 12V DC power

Key specifications

• Input: 220-240V AC, 50/60 Hz
• Output: 12V DC, 200 mA, 2.4 W
• RF pass-through: 5-2400 MHz, F-type connectors
• 1 input, 1 output
• Indoor use, plastic housing
• Operating temperature: -5 to +45 °C

Recommendations

For optimal performance, use with Televes mast amplifiers or compatible 12V DC devices. Ensure proper ventilation and avoid exposure to moisture.
