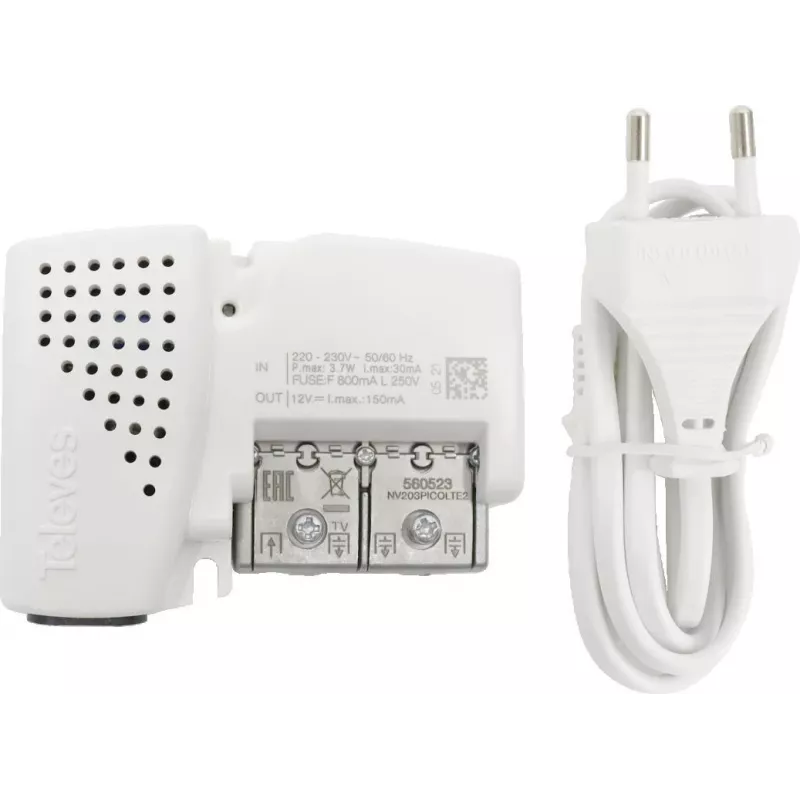

TELEVES PicoKom Home TV Signal Amplifier 3 uscite (2+TV) VHF/UHF-LTE700 Ready ref.560523

The TELEVES PicoKom 560523 is a compact home TV signal amplifier designed to boost VHF and UHF signals with LTE700 (5G) filtering. It features three outputs (2 x OUT + 1 x TV) and is ideal for improving reception in single-family homes or small installations.

Advantages

Integrated LTE700 filter protects against 5G interference; low noise figure ensures clear signal; wall-mountable design saves space; low power consumption (2.5 W).

Suitable for

• Indoor TV signal amplification in homes
• Distributing antenna signal to multiple devices
• Areas with weak VHF/UHF reception

Key specifications

• Product Type: Home TV Signal Amplifier
• Frequency Bands: VHF, UHF
• LTE Filtering: LTE700 (5G Ready)
• Number of Inputs: 1
• Number of Outputs: 3 (2 x OUT, 1 x TV)
• VHF Gain: 12 dB
• UHF Gain: 20 dB
• VHF Gain Adjustment Range: 0-12 dB
• UHF Gain Adjustment Range: 0-15 dB
• VHF Noise Figure: 4.5 dB
• UHF Noise Figure: 6 dB
• VHF Output Level (DIN45004B): 105 dBµV
• UHF Output Level (DIN45004B): 105 dBµV
• Power Supply: 230V AC, 50/60Hz (Integrated)
• Power Consumption: 2.5 W
• Connector Type: F-type
• Shielding Class: A
• Installation Environment: Indoor, Wall-mountable

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This amplifier is compatible with all standard TV antennas.
