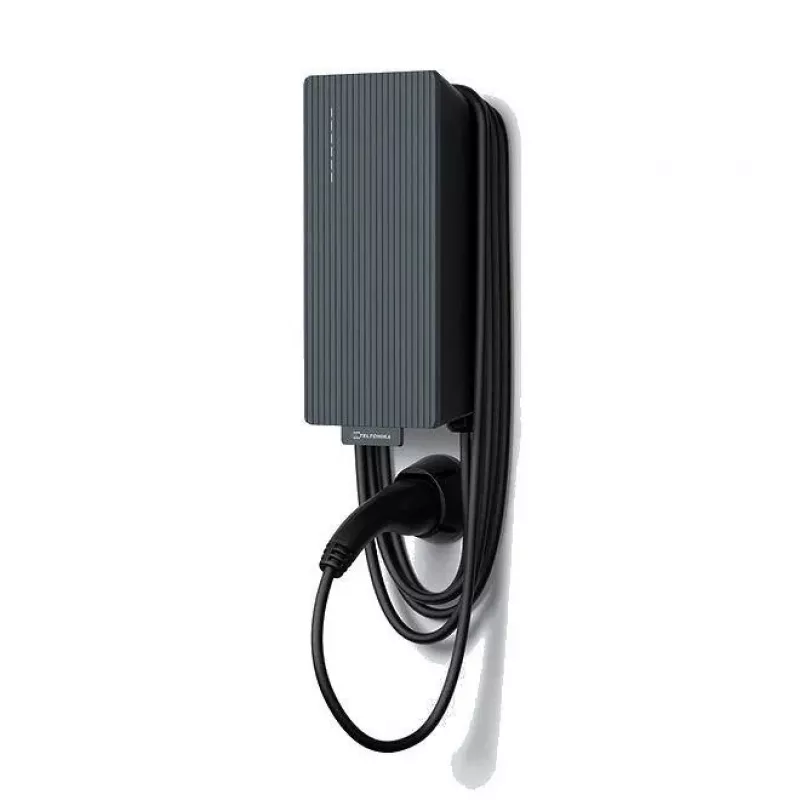

TELTONIKA 11kW (16A / 3 fasi) cavo 5m LTE, WiFi, Bluetooth

The Teltonika EVC2001120S0 is a high-performance electric vehicle charging station designed for residential and commercial use. With 11kW charging power and 3-phase support, it delivers fast and efficient charging for electric vehicles. The integrated LTE, WiFi, and Bluetooth connectivity enables remote monitoring and smart charging management.

Advantages

This EV charger offers robust connectivity options including LTE, WiFi, and Bluetooth, ensuring reliable communication and remote control via the TeltoCharge app. The integrated MID-certified energy meter provides accurate consumption tracking, while OCPP 1.6J compliance allows integration with various charging management systems. The IP55 and IK10 ratings ensure durability in outdoor environments.

Suitable for

• Home garages and driveways
• Commercial parking lots
• Workplace charging stations
• Fleet charging depots

Key specifications

• Charging Power: 11 kW
• Charging Current: 16 A
• Phases: 3-Phase
• Input Voltage: 400 V AC
• Output Connector: Type 2 (tethered cable)
• Cable Length: 5 meters
• Connectivity: LTE, WiFi, Bluetooth, Ethernet
• RFID Support: Yes (ISO/IEC 14443 A/B, MIFARE, FeliCa, NFC)
• Metering: MID Certified Energy Meter
• OCPP Support: OCPP 1.6J (upgradeable to 2.0.1)
• IP Rating: IP55
• IK Rating: IK10
• Operating Temperature: -30°C to +50°C
• Mounting Type: Wall-mounted
• Enclosure Material: UV Resistant PC
• Residual Current Device: Integrated DC 6mA and AC 30mA RCD
• Authentication Methods: RFID, TeltoCharge App, Plug & Charge

Recommendations

For optimal performance, ensure the electrical installation is carried out by a qualified electrician. The charger is compatible with all electric vehicles equipped with a Type 2 inlet. Use the TeltoCharge app for easy setup and monitoring.
