TELTONIKA NETWORKS antenna da tetto SMA 5G COMBO MiMo Mobile/GNSS/WiFi

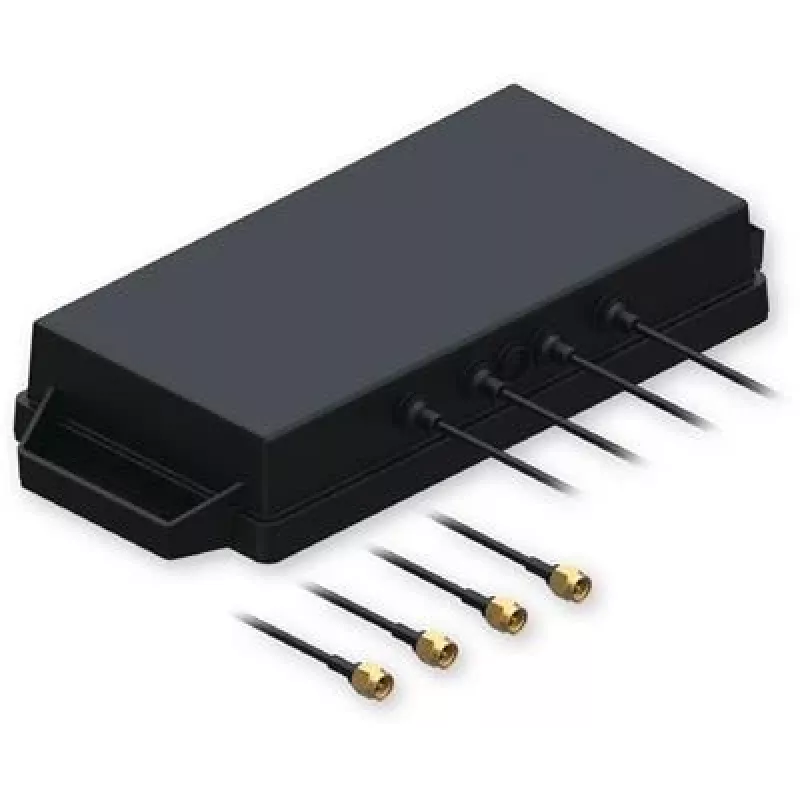

The TELTONIKA NETWORKS 5G COMBO MiMo Mobile/GNSS/WiFi ROOF SMA Antenna (PR1KC540) is a high-performance multi-band antenna designed for professional and industrial applications. It combines 2x2 MIMO for mobile and WiFi, plus active GNSS, in a single compact roof-mount housing. With IP67 protection and wide frequency coverage, it ensures reliable connectivity for 5G, 4G, LTE, GPS, GLONASS, and WiFi networks.

Advantages

This antenna simplifies installation by integrating three radio technologies into one unit, reducing cable clutter and mounting points. The 2x2 MIMO configuration enhances data throughput and signal reliability for mobile and WiFi bands. The active GNSS antenna with 28 dBi LNA gain provides superior satellite reception for precise positioning. Rugged IP67 design withstands harsh outdoor conditions, and the 3-meter RG174 cables offer flexibility in placement.

Suitable for

• Routers and gateways requiring 5G/4G connectivity
• Vehicle or fleet tracking systems
• Remote monitoring and IoT applications
• WiFi access points with MIMO support
• GNSS-based timing and navigation equipment

Key specifications

• Antenna Type: Combo (Mobile/GNSS/WiFi)
• Mobile Frequency Bands: 698-960 MHz, 1710-2700 MHz, 3300-3800 MHz, 4200-6000 MHz
• Mobile Gain (Max): 6 dBi
• WiFi Frequency Bands: 2400-2500 MHz, 4900-5875 MHz
• WiFi Gain (Max): 6 dBi
• GNSS Frequency Band: 1575.42 MHz (GPS L1), 1602-1610 MHz (GLONASS)
• GNSS Gain (LNA): 28 dBi
• MIMO Configuration: 2x2 MIMO (Mobile), 2x2 MIMO (WiFi)
• Mobile Connectors: 2 x SMA Male
• WiFi Connectors: 2 x RP-SMA Male
• GNSS Connector: 1 x SMA Male
• Cable Length: 3 meters (all cables)
• Mounting Type: Roof Mount (18mm hole)
• Ingress Protection (IP Rating): IP67
• Operating Temperature: -40°C to +85°C
• Impedance: 50 Ohm
• Polarization: Linear (Mobile/WiFi), RHCP (GNSS)
• VSWR (Max): < 2.5:1 (Mobile/WiFi), < 2:1 (GNSS)
• Cable Type: RG174

Recommendations

For optimal performance, mount the antenna on a flat metal roof surface with a minimum 18mm hole. Ensure cables are routed away from interference sources. Pair with compatible TELTONIKA routers for best integration.
