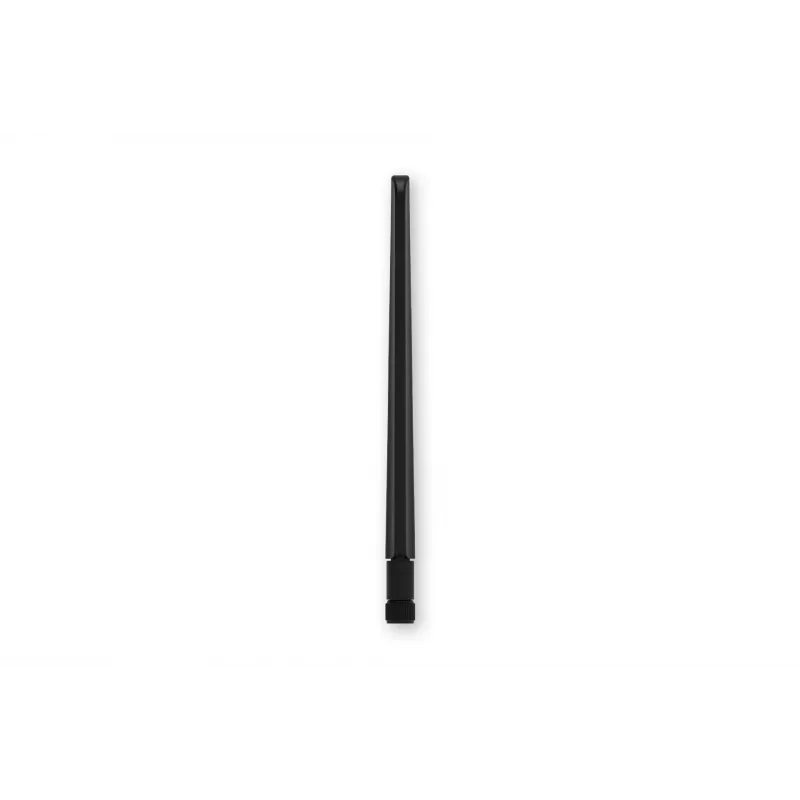

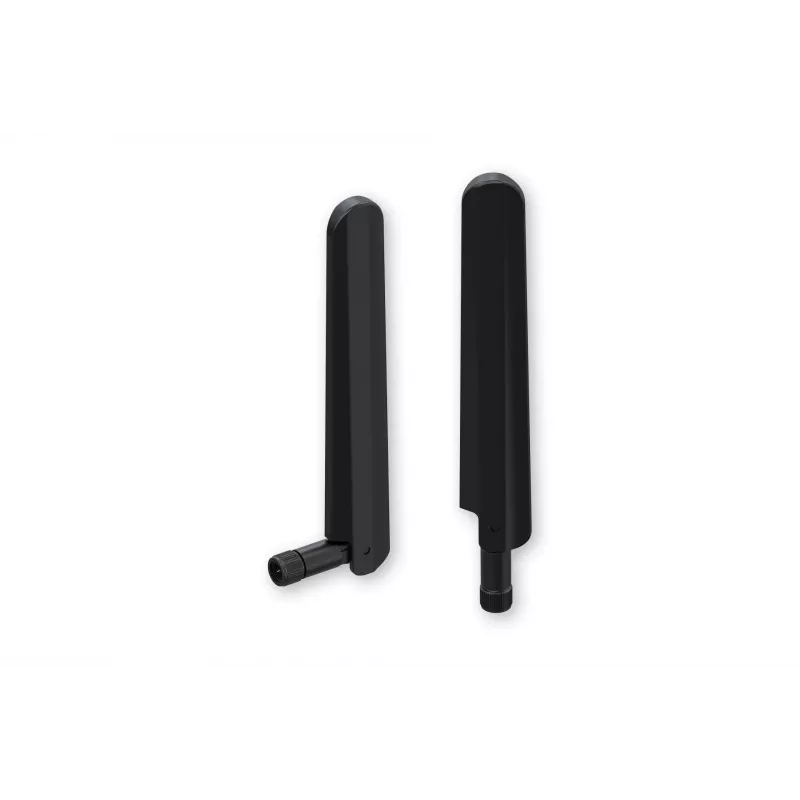

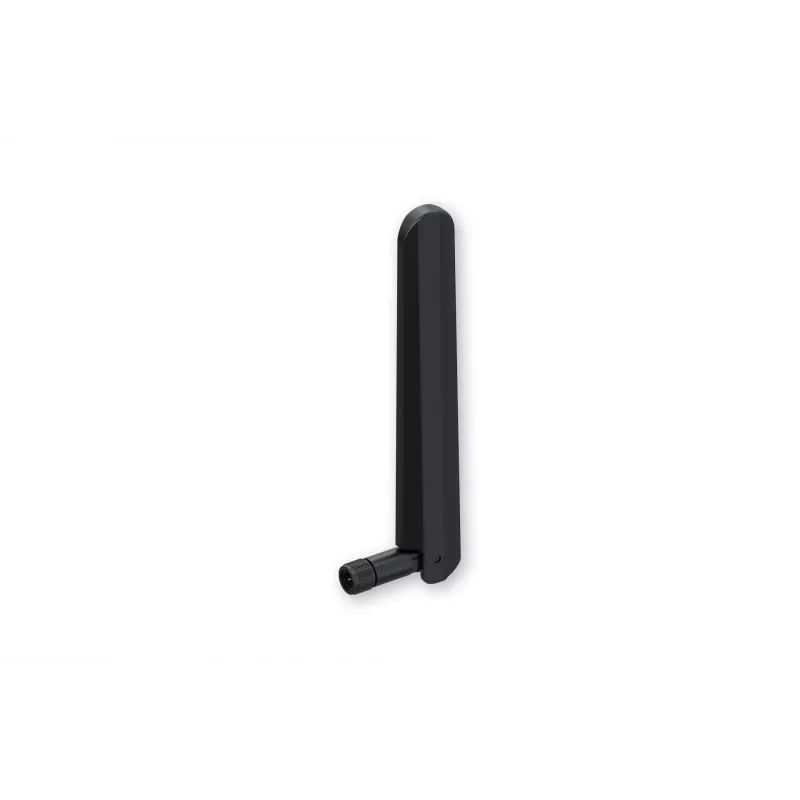

Teltonika Networks PR1SS530 Antenna omnidirezionale 5G Mobile Slim-side SMA maschio

This 5G mobile omni-directional antenna delivers reliable multi-band connectivity for cellular devices. Its slim-side profile and direct SMA mounting make it a discreet yet powerful addition to any compatible router or gateway, supporting frequencies from 600 MHz to 6000 MHz with a peak gain of 3 dBi.

Advantages

Covering 5G, 4G LTE, 3G, 2G, NB-IoT, and LTE-M bands, this antenna ensures broad network compatibility. The low VSWR of less than 3.0 and 50 Ohm impedance maintain signal integrity, while the compact ABS housing withstands temperatures from -40°C to +85°C, suitable for both indoor and outdoor deployments.

Suitable for

• Teltonika Networks routers and gateways with SMA female connectors
• IoT and M2M applications requiring dependable cellular reception
• Mobile installations where space is limited and a low-profile antenna is preferred
• Industrial environments needing wide temperature tolerance

Key specifications

• Frequency range: 600 - 6000 MHz
• Peak gain: 3 dBi
• Connector: SMA male
• Dimensions: 108 x 10 x 10 mm
• Weight: 15 g
• Material: ABS, black
• Operating temperature: -40°C to +85°C

Recommendations

For optimal performance, mount the antenna vertically and away from large metal obstructions. Verify that your device uses an SMA female connector before installation. Consider pairing with a Teltonika Networks router for seamless integration.
