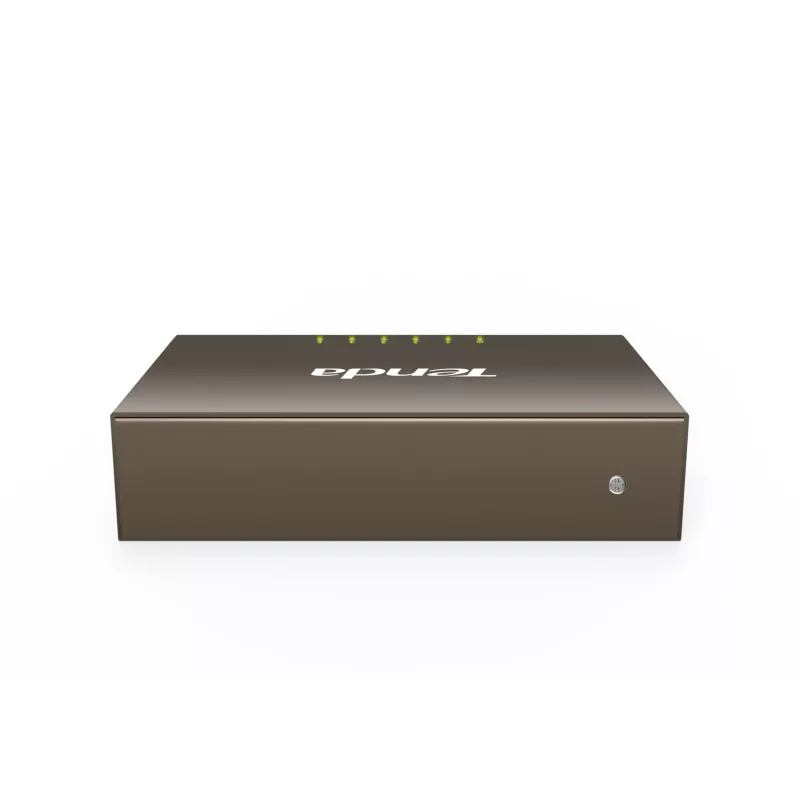

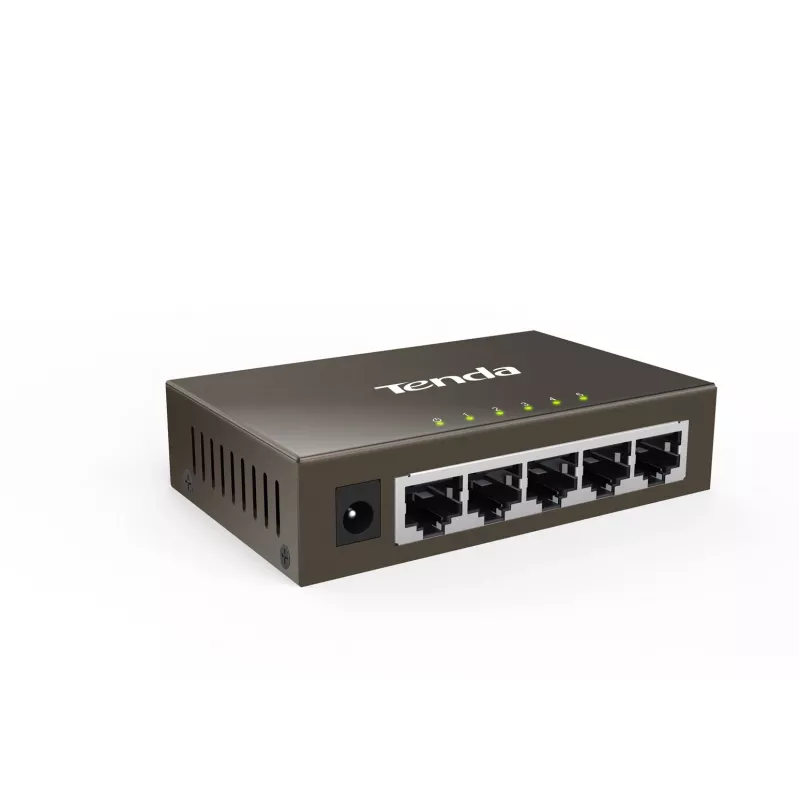

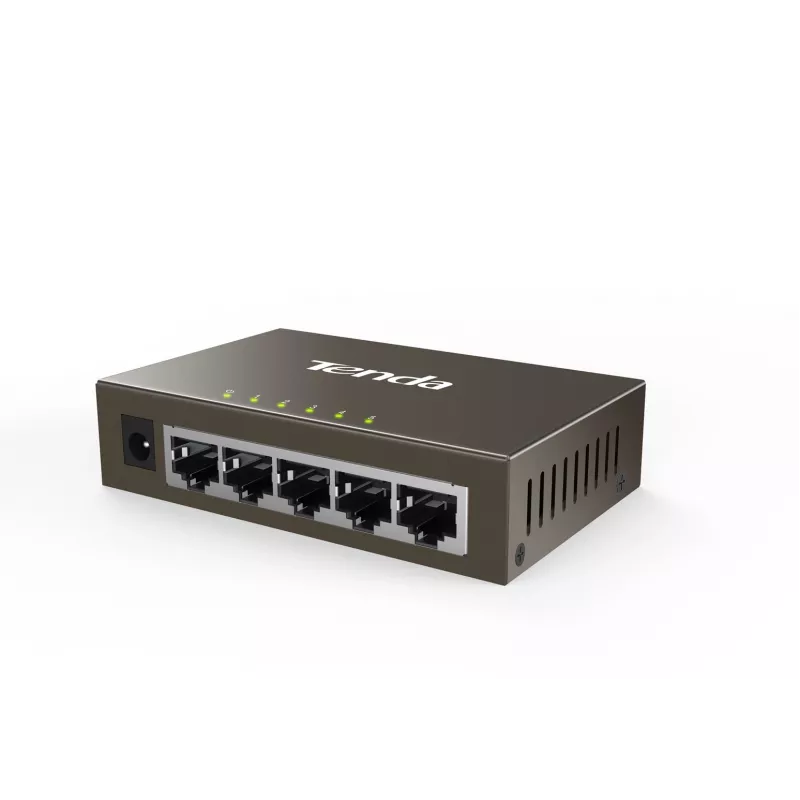

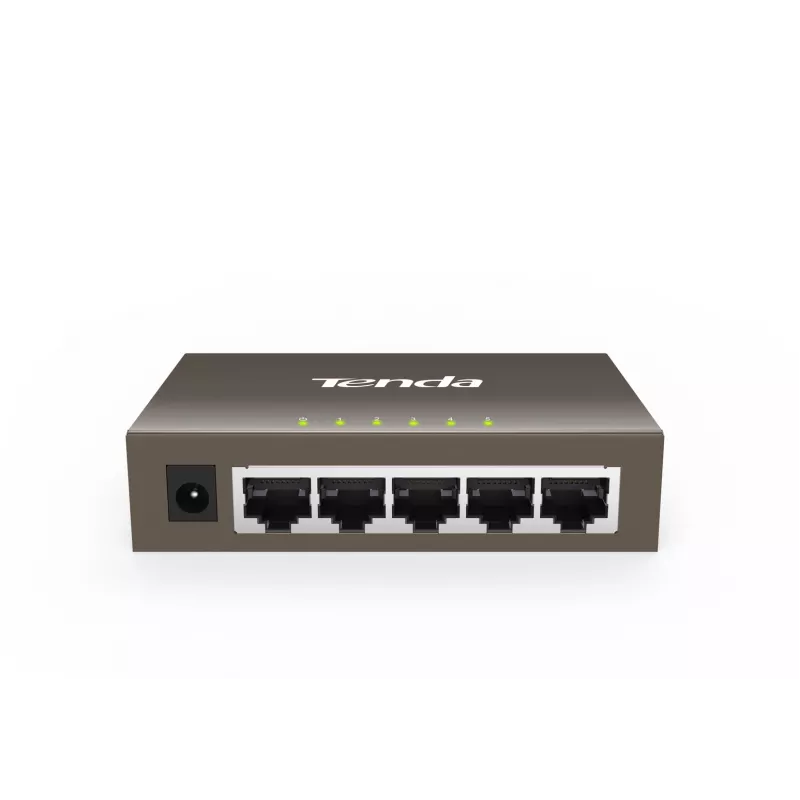

Tenda TEG1005D V4 Switch Gigabit Ethernet desktop 5 porte

The Tenda TEG1005D V4 is a high-performance 5-port Gigabit Ethernet switch designed for home and small office networks. It provides reliable, high-speed connectivity with plug-and-play installation, making it an ideal solution for expanding your wired network.

Advantages

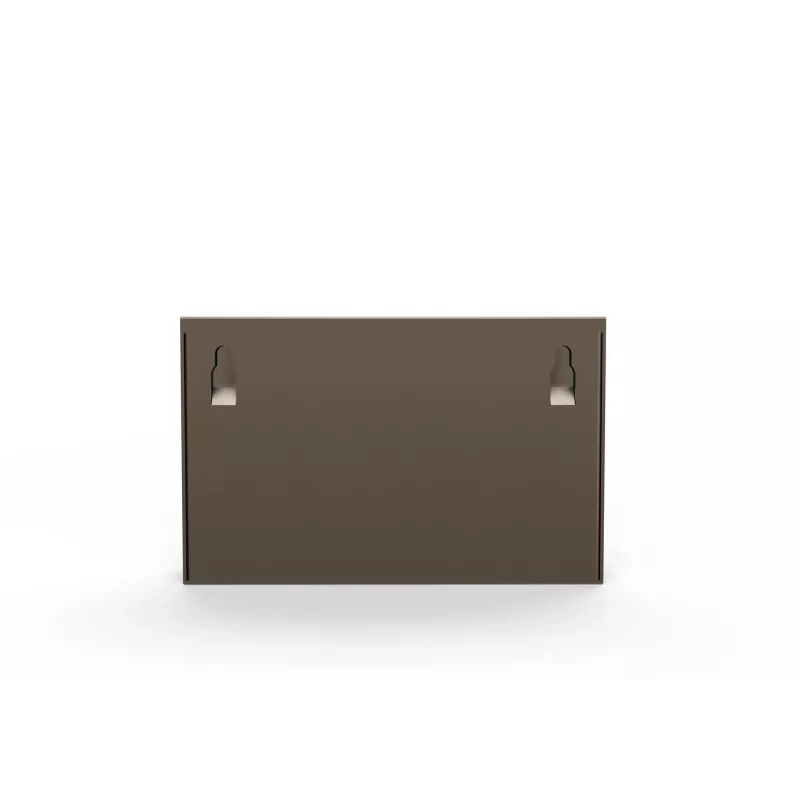

With 5 auto-negotiation Gigabit ports, the TEG1005D V4 delivers up to 10 Gbps switching capacity, ensuring smooth data transfers for bandwidth-intensive applications like HD video streaming, online gaming, and large file transfers. Its fanless design ensures silent operation, making it perfect for noise-sensitive environments. The metal casing enhances durability and heat dissipation, while desktop and wall-mountable options offer flexible deployment.

Suitable for

• Home networks requiring additional wired connections
• Small office setups needing reliable Gigabit performance
• Surveillance systems connecting IP cameras
• Gaming consoles and smart TVs for lag-free streaming

Key specifications

• 5 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps)
• Switching capacity: 10 Gbps
• Forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 15K Bytes
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Power supply: External DC 9V 0.6A adapter
• Max power consumption: 3W
• Fanless design for silent operation
• LED indicators: Link/Act, Power
• Metal casing
• Operating temperature: 0°C ~ 40°C
• Operating humidity: 10% ~ 90% RH (non-condensing)

Recommendations

For optimal performance, use Cat5e or higher Ethernet cables. The switch is plug-and-play; no configuration required. Ideal for expanding network capacity in small environments.
